500W Single Phase Output Switching Power Supply with CE (S-500W)

Name: 500W Single Phase Output Switching Power Supply with CE (S-500W)
Brand: all-electronics-online.com
SKU: 695211925
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	US $ 50-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-500W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function Protection:	Overload, Over-Current, Short-Circuit
Shell Material:	Oxide Blasting Environmenttal Material
Demension Size:	185X120X93mm
Leakage Current:	less than 3.5mA/240VAC
Impact Current:	cold start current:25A/110V, 53A/230V
Overload Protection:	105-150%, type:current limited, reset:automatic
Overvoltage Protection:	115-150%
Start/up/keep Time:	200ms, 100ms, 30ms
Shock Resistance:	10-500Hz, 2G, 10min
Safety Standards:	UL1012
Output Type:	Single
Warranty:	1 Year
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Output Power:	500W 5V-40A, 12V-32A, 24V-20A, 48V-10A
Input Voltage:	AC 170-AC264V 47-63Hz DC240V-DC370V
Brand:	Clin

Product Description

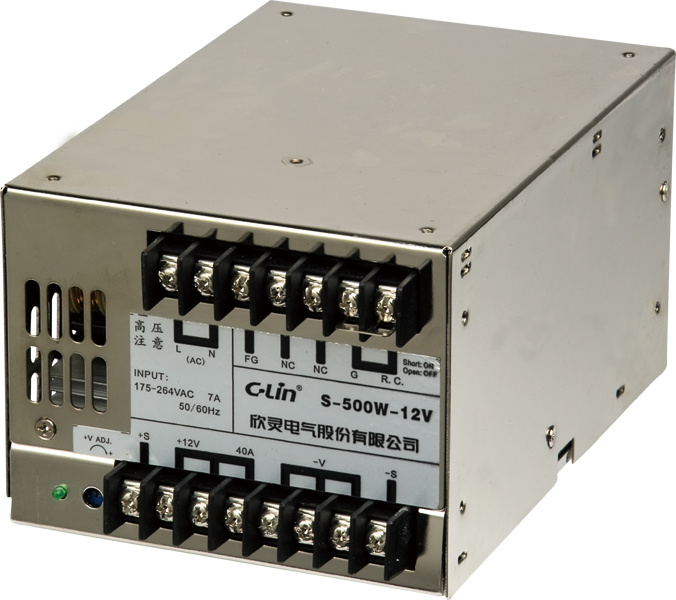

Switching power supply S-500W
General Introduction
Switching power supply is to convert alternating current into direct current which electronic and electrical equipments need. It is characterized by small size, light weight, small ripple, high efficiency, low noise, low temperature rise and cost-efficiency. Its short circuit and overload protection and soft start function prevent the load circuit from being damaged easily. The product is an ideal substitute for the traditional transformer.

Switching power supply is widely used in the places which require AC220V or AC110V to be converted into direct current, such as advertising light boxes, communication equipments, industrial control automation, low-power DC motor power supply etc. It has four specifications: single, dual, triple, quad. groups, with power range from 15W~500W, output voltage -5V, 5V, -12V, 12V, -24V, 24V, 48V etc.

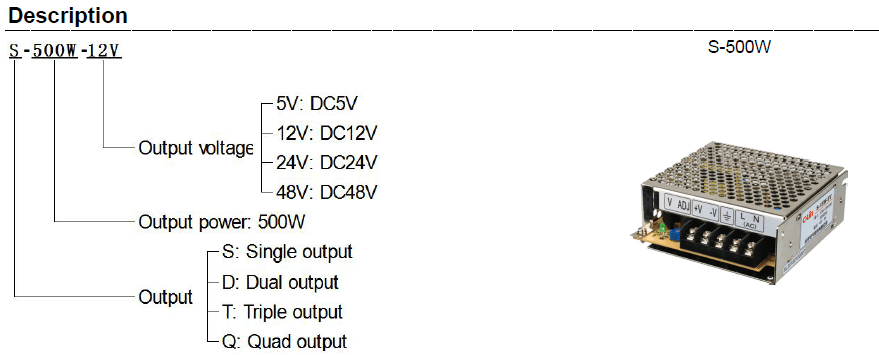

Model		S-500W Single Output General Type Switching Power Supply
Input Voltage		AC170-AC264V 47-63Hz DC240-DC370V
Output	Power	500W
	Voltage	12V-40A; 15V-32A; 24V-20A; 48V-10A
Function Protection		overvoltage, overload(overcurrent ), over-temperature
Dimension		18512093mm
