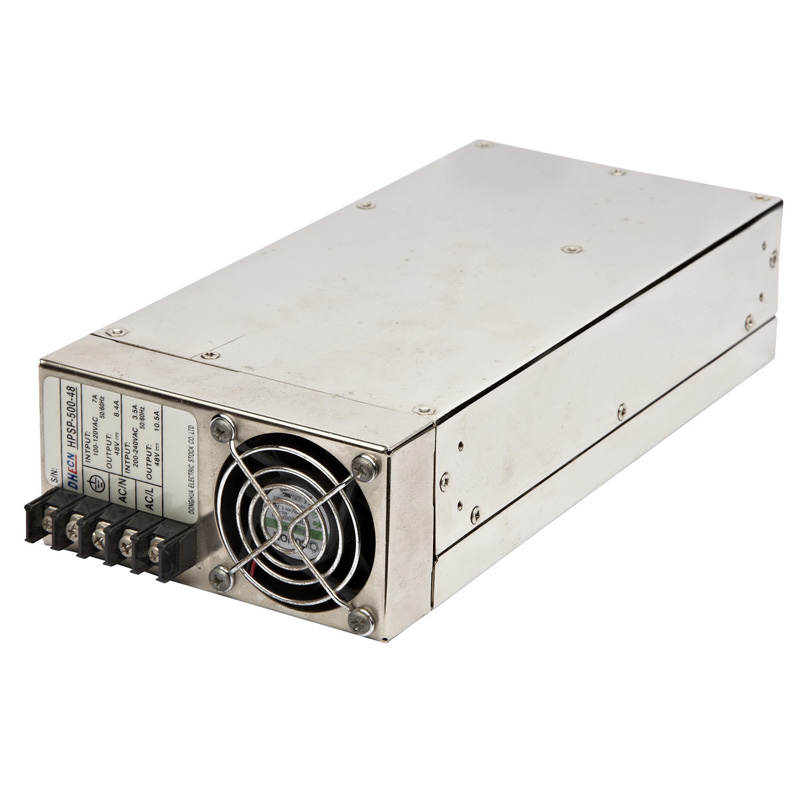

500W SMPS With PFC and Parallel Function (HPSP-500)

Name: 500W SMPS With PFC and Parallel Function (HPSP-500)
Brand: all-electronics-online.com
SKU: 13264
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HPSP-500-48
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Starting Mode:	Self-excited Switching Power Supply
Certification:	TUV
Brand:	Dhecn
Output Power:	504W
Input Voltage:	AC90~264,127~370VDC,47~63Hz
Connection Mode:	Paralle or Series
Warranty:	3 Years

Product Description

Features:
· Universal AC input / Full range
· Built-in active PFC function, PF>0.95
· Protections: Short circuit / Over load / Over voltage / Over temp.
· Forced air cooling by built-in DC fan
· Current sharing up to 2000W(3+1)
· With power good and fail signal output
· Built-in remote ON-OFF control and remote sense function
· 3 years warranty
· Dimension: 278*127*63.5mm (L*W*H)

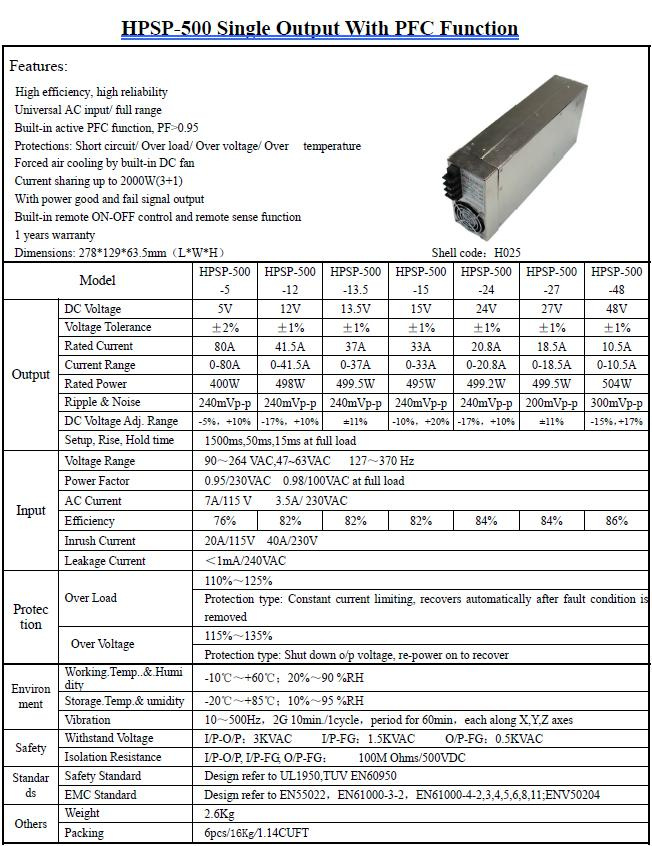

Specification:

1) INPUT
· Voltage Range: 90-264VAC, 127-370VDC; 47-63Hz
· Power Factor: 0.95/230VAC 0.98/100VAC
· AC Current: 7A/115VAC 3.5A/230VAC
· Inrush Current: Cold start 20A/115VAC 40A/230VAC
· Leakage Current: <1mA/240VAC

2) PROTECTION
· Over Load: 110%-125%; Constant current limiting, recovers automatically after fault condition is removed.
· Over Voltage: 115%-135%; Shut down o/p voltage, re-power on to recover.
· Over temp.: RTH2≥ 95º C(Detect on heatsink of Q1, Q7 power transistor & L3 output choke); Shut down o/p voltage, re-power on to recover.

3) ENVIRONMENT
· Working Temp. & Humidity: -10º C~+60º C; 20%~90% RH.
· Storage Temp. & Humidity: -20º C~+85º C; 10%~95% RH.
· Vibration: 10~500Hz, 2G 10min. /1 cycle, period for 60min, each along X, Y, Z axes.

4) SAFETY STANDARDS
· Withstand Voltage; I/P-O/P: 3KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100MΩ /500VDC
· Safety Standards: Design refer to UL60950, TUV, EN60950
· EMC Standards: Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024

5) Type No Output Tol. R&N Effi.

HPSP-500-5 5V, 80A ± 2% 100mV 76%
HPSP-500-12 12V, 41.5A ± 1% 150mV 82%
HPSP-500-13.5 13.5V, 37A ± 1% 150mV 82%
HPSP-500-15 15V, 33A ± 1% 150mV 82%
HPSP-500-24 24V, 20.8A ± 1% 150mV 84%
HPSP-500-27 27V, 18.5A ± 1% 150mV 84%
HPSP-500-48 48V, 10.5A ± 1% 200mV 86%
