| Prod Model: |
GS-LFD3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
Fiber |
| Laser Output Power: |
500W |
| Laser Wavelength: |
1070nm |
| Max Cutting Speed: |
36m / Min |
| Cooling Mode: |
Water Cooling |
| Thickness Of Cutting Material: |
0.2 - 5mm |
| Continuous Working Time: |
24 Hours |
| Machine Weight: |
About 2950kgs |
| Outer Dimension: |
4350 X 2280 X 1500mm |
Product Description

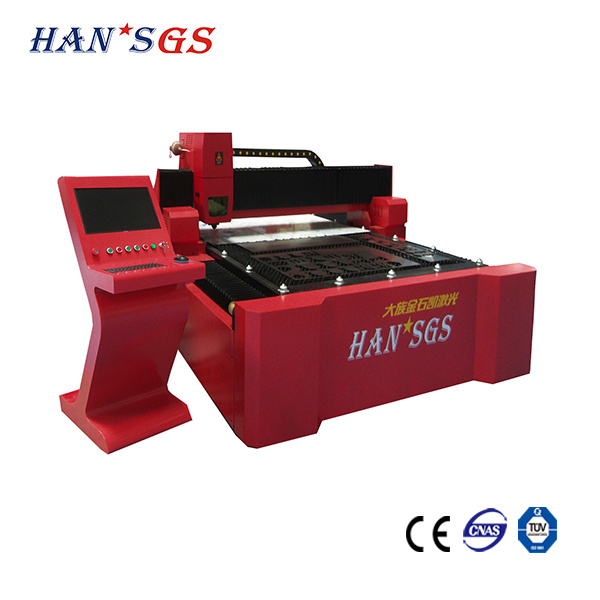

500W to 3000W CNC Fiber Laser Cutting Machine for Computer
CNC metal fiber Laser Cutting Machine:
Strength for laser cutting machine:
1) Substitute of "steel shearer" and "punching machine";
2) no need any mould to match parts structure, any structure ok via software;
3) Positioning automatically, no need any jig or fixture;
4) Any pattern and format ok for cutting via CNC laser control system with computer control;
5) Sealed design for rack and guide rail to make sure longer lifetime and higher precision;
6) No need reflection mirror, lower maintenance cost;
7) No need any adjustment for laser route;
Suitable Material for Laser Cutting machine:
No-rust metal
1) Stainless Steel
2) Copper
3) Brass
4) Carbon Steel
5) Aluminium
6) Coated metal
etc
Service and Warranty for Laser cutting machine:
1) Warranty:
One years grarantee period...
2) Service: after-sale service site in the world
-- Asia: Iran, UAE, India, Thailand, Malaysia, Indonesia, Vietnam, Phillipine, Japan, South Korea.
-- Europe: Russia, Poland, Germany, Turkey.
-- America: USA, Mexico, Columbia, Peru, Brazil, Argentina.
--Oceanica: New zealand.
Suitable Application for Laser Cutting Machine:
1) Computer processing
2) Precision parts processing
3) Kitchenware
4) Filtering
5) Lighting
6) Round and square pipe cutting
Using Environment for laser cutting machine:
1) Ventilative
2) No intense electromagnetic interference
3) Electricity consumption: 8- 10 kwh per hour
Parameter for laser cutting machine:
| GS-LFTC | GS-LFTC | GS-LFTC |
| Laser source medium | Fiber laser cutting machine |
| Cutting range(OD) | 10mm - 320mm | 10mm - 320mm | 10mm - 320mm |
| Z axle stroke | 150 mm |
| Max cutting speed | 40m/min | 42m/min | 45m/min |
| Max positioning speed | 90m/min |
|
|
| Cooling form | water cooling |
| Laser wavelength | 1064nm |
| Output power of laser source | 1000W (imported) | 1500W (imported) | 2000W (imported) |
| Min. cutting gap | ≤0.1mm | ≤0.125mm | ≤0.125mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
Thickness of cutting material
(according to material) | 0.2-8mm | 0.2-12mm | 0.2-16mm |
| Drive model | Imported servo motor |
| Power requirement | 380V,50/60Hz |
| Working temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 5950Kgs |
| Outer dimension | 7828mm x 3741mm x 1940mm |
| Total protection level of power supply | IP54 |
Configuration for laser cutting machine:
| Specification and brand | Remark |
| Machine bed | LFTC | Gantry design, the machine bed is precision processed by gantry type milling machine to ensure the resistance to shock, rigidity and stability. Integral cast aluminum crossbeam |
| Laser Source | IPG/
ROFIN |
|
| CNC Control System | Ahead Techs
(US) |
|
| Z axle Tracking System | Ray Tools
(Switzerland) |
|
| Cutting Head | Ray Tools |
|
| Serve Motor and Drive System | YASKAWA
(Japan) |
|
| Axle rack | Linden
(Sweden) |
|
| Precision planetary gear reducer | (Taiwan)APEX /
(Germany) Stober |
|
| Linear Guide | HIWIN
(Taiwan) |
|
| Control cabinet/Operation Top | HANS GS |
|
| Chilling System | Dual temperature dual control
(Tongfei brand) | Compatible with laser source |
| Working Gas Distribution System | Including air compressor, dryer, filter | Provide by customer |
| Display | 19" |
|
| Lubricate System | Domestic brand | Lubrication for movement axle |
| Dust Pelletizing system | Domestic brand | Fan and pipes are provided by customer |
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
