| Prod Model: |
SC5024 |
| Current: |
25-50A |
| Soza Cell: |
50V-1000V |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
Bulk |
| Model: |
Sc5024,Sc5028,Sc5040 |
| Batch Number: |
2016+ |
| Brand: |
Sy |
Product Description

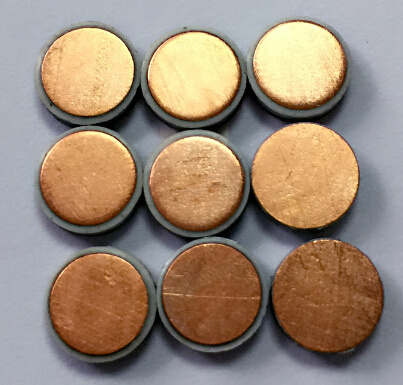

SC5024,SC5028,SC5040,50A,20-24V,24-32V,38-42V Avalanche Soza Cell
we are a professional manufacturer in automotive diode and press-fit diode as following:
we can supply 25A, 35A, 50A, volt is from 50V to 1000V. avalanche volt: 20-24V, 38-42V.
Avalanche Soza Cell:
50A:
SC5024: 20-24V.
SC5028: 24-32V.
SC5040: 38-42V.
Products introduction
Features
High current capability.
Low forward voltage drop.
Low leakage current.
High surge current capablity.
Mechanical Data
Small copper :0.258(6.55) * 0.0394(1.0)Thick.
Large copper:0.284(7.22) * 0.0295(0.75)Thick.
Outline information:0.284(7.22) * 0.0866(2.2)Thick
| Series | Part No | Max Rating and Electrical Characteristics | Picture |
| VRWM | IF | IFSM (A)8.3ms single half | VF | IRRM(μA) | Operation
temperature |
| (V) | (A) | sine-wave | (V) | @Ta=25ºC |
| SOZA CELL | SC25A | 50 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| SC25B | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC25D | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC25G | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC25J | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC25K | 800 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC25M | 1000 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC35A | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35B | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35D | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35G | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35J | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35K | 800 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35M | 1000 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC50A | 50 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50B | 100 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50D | 200 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50G | 400 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50J | 600 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50K | 800 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50M | 1000 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| BUTTON | AR2505 | 50 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR251 | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR252 | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR254 | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR256 | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR258 | 800 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR2510 | 1000 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR3505 | 50 | 25 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR351 | 100 | 25 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR352 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR354 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR356 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR358 | 800 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR3510 | 1000 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR5005 | 50 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR501 | 100 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR502 | 200 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR504 | 400 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR506 | 600 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR508 | 800 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR5010 | 1000 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
LEAD
BUTTON | ARL2505 | 50 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL251 | 100 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL252 | 200 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL254 | 400 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL256 | 600 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL258 | 800 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL2510 | 1000 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL2512 | 1200 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL3505 | 50 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL351 | 100 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL352 | 200 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL354 | 400 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL356 | 600 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL358 | 800 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL3510 | 1000 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL3512 | 1200 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| Series | Part No | Max Rating and Electrical Characteristics | Picture |
| VRWM | IF | IFSM (A)8.3ms single half | VF | IRRM(μA) | Operation
temperature |
| (V) | (A) | sine-wave | (V) | @Ta=25ºC |
| BLOCK | BD3005 | 50 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD301 | 100 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD302 | 200 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD304 | 400 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD306 | 600 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD3505 | 50 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD351 | 100 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD352 | 200 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD354 | 400 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD356 | 600 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD5005 | 50 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| BD501 | 100 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| BD502 | 200 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| BD504 | 400 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| BD506 | 600 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| TIN-CAN | TC2505 | 50 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC251 | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC252 | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC253 | 300 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC254 | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC255 | 500 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC256 | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC3505 | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC351 | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC352 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC353 | 300 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC354 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC355 | 500 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC356 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150 | |
MOTOR PRESS
FIT DIODE | MP2505 | 50 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP251 | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP252 | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP253 | 300 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP254 | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP255 | 500 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP256 | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP3505 | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP351 | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP352 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP353 | 300 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP354 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP355 | 500 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP356 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP5005 | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP501 | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP502 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP503 | 300 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP504 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP505 | 500 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP506 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
BOSCH
PRESS-FIT
DIODE | BP2505 | 50 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP251 | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP252 | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP253 | 300 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP254 | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP255 | 500 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP256 | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP3505 | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP351 | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP352 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP353 | 300 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP354 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP355 | 500 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP356 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP5005 | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP501 | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP502 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP503 | 300 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP504 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP505 | 500 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP506 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| Series | Part No | Max Rating and Electrical Characteristics | Picture |
| Breakdown | IF | IFSM (A) 8.3ms | VF (V) | IR @ VR | Operation
temperature |
| Voltage (V) | (A) | single half | @ | (Ta=25ºC) |
| Min | Max | sine-wave | IF | μA | V |
| SOZA CELL | SC2524 | 20 | 24 | 25 | 300 | 1 | 0.2 | 16 | -55ºC~+150ºC | |
| SC2528 | 24 | 32 | 25 | 300 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| SC2540 | 24 | 32 | 25 | 300 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| SC3524 | 20 | 24 | 35 | 400 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| SC3528 | 24 | 32 | 35 | 400 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| SC3540 | 38 | 42 | 35 | 400 | 1 | 0.2 | 34 | -55ºC~+150ºC |
| SC5024 | 20 | 24 | 50 | 500 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| SC5028 | 24 | 32 | 50 | 500 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| SC5040 | 38 | 42 | 50 | 500 | 1 | 0.2 | 34 | -55ºC~+150ºC |
| BUTTON | ARZ2524 | 20 | 24 | 25 | 300 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| ARZ2528 | 24 | 32 | 25 | 300 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| ARZ2540 | 38 | 42 | 25 | 300 | 1 | 0.2 | 28 | -55ºC~+150ºC |
| ARZ3524 | 20 | 26 | 35 | 400 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| ARZ3528 | 24 | 32 | 35 | 400 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| ARZ3540 | 38 | 42 | 35 | 400 | 1 | 0.2 | 28 | -55ºC~+150ºC |
| ARZ5024 | 20 | 26 | 50 | 500 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| ARZ5028 | 24 | 32 | 50 | 500 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| ARZ5040 | 38 | 42 | 50 | 500 | 1 | 0.2 | 28 | -55ºC~+150ºC |
| ARZ5024 | 20 | 26 | 50 | 500 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| ARZ5028 | 24 | 32 | 50 | 500 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| ARZ5040 | 38 | 42 | 50 | 500 | 1 | 0.2 | 28 | -55ºC~+150ºC |
MOTOR
PRESS-FIT
DIODE | MP2524 | 20 | 24 | 25 | 300 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| MB2528 | 24 | 32 | 25 | 300 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| MP2540 | 38 | 42 | 25 | 300 | 1 | 0.2 | 34 | -55ºC~+150ºC |
| MB3524 | 20 | 24 | 35 | 400 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| MP3528 | 24 | 32 | 35 | 400 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| MP3540 | 38 | 42 | 35 | 400 | 1 | 0.2 | 34 | -55ºC~+150ºC |
| MP5024 | 20 | 24 | 50 | 500 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| MP5028 | 24 | 32 | 50 | 500 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| MP5040 | 38 | 42 | 50 | 500 | 1 | 0.2 | 34 | -55ºC~+150ºC |
BOSCH
PRESS-FIT
DIODE | BP2524 | 20 | 24 | 25 | 300 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| BB2528 | 24 | 32 | 25 | 300 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| BP2540 | 38 | 42 | 25 | 300 | 1 | 0.2 | 34 | -55ºC~+150ºC |
| BB3524 | 20 | 24 | 35 | 400 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| BP3528 | 24 | 32 | 35 | 400 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| BP3540 | 38 | 42 | 35 | 400 | 1 | 0.2 | 34 | -55ºC~+150ºC |
| BP5024 | 20 | 24 | 50 | 500 | 1 | 0.2 | 16 | -55ºC~+150ºC |
| BP5028 | 24 | 32 | 50 | 500 | 1 | 0.2 | 20 | -55ºC~+150ºC |
| BP5040 | 38 | 42 | 50 | 500 | 1 | 0.2 | 34 | -55ºC~+150ºC |
Changzhou Shunye Electronics Co., Ltd. is a professional manufacturer in diode and Automotive diode.
Over the past years of practices, we always set "excellent quality, competitive price, superior service" as our key managing policy & guide lines for our daily behavior. We provide wide products lines to our customers, including all kinds of rectifier diodes, TVS, small signal diodes, bridge rectifiers and automotive rectifier etc. The major application industries cover automobile, computer, consumer appliances, telecommunication etc.
We always take our clients personally, we have a dedicating & proficient management team with good understanding, whose mind is set on continuous quality improvement, effective cost saving & customer satisfaction.
Your demand is our top priority, you are welcome to contact us at any time at your convenience for any inquiries or any possible business discussions.
---------------------------------------------------------------------------
Our Mission:
Our aim is to become one of the largest manufacturers of rectifier diodes in the world based on excellence in:
- Innovative product
- First Class Quality
- Competitive Price
- Best Customer Service
- Manufacturing Strength As your valued business partner
---------------------------------------------------------------------------------
Team Message:
Dear Customers,
Thanks for visiting our website.
We would like to ensure that our all customers and business partners will get good service from us, we always prove our commitment to you by serving you better. Delight customers profitably is our common goal.
----------------------------------------------------------------------------------
Main Products:
Silicon Rectifier Diode
Zener Diode
Schottky Barrier Diode,
Switching Diode,
Bridge Rectifier Diode
Soza Cell Diode,
Automotive Button Diode,
Lead Button Diode,
Press Fit Diode,
Avalanche Diode,
