| Prod Model: |
50Hz 280V |
| Operating Temperature Range: |
-40~105 Degree |
| Type: |
Aluminum Electrolytic Capacitor |
| Application: |
Automobile |
| Package Type: |
Surface Mount |
| Capacitance: |
>100uf |
Product Description
Product Description

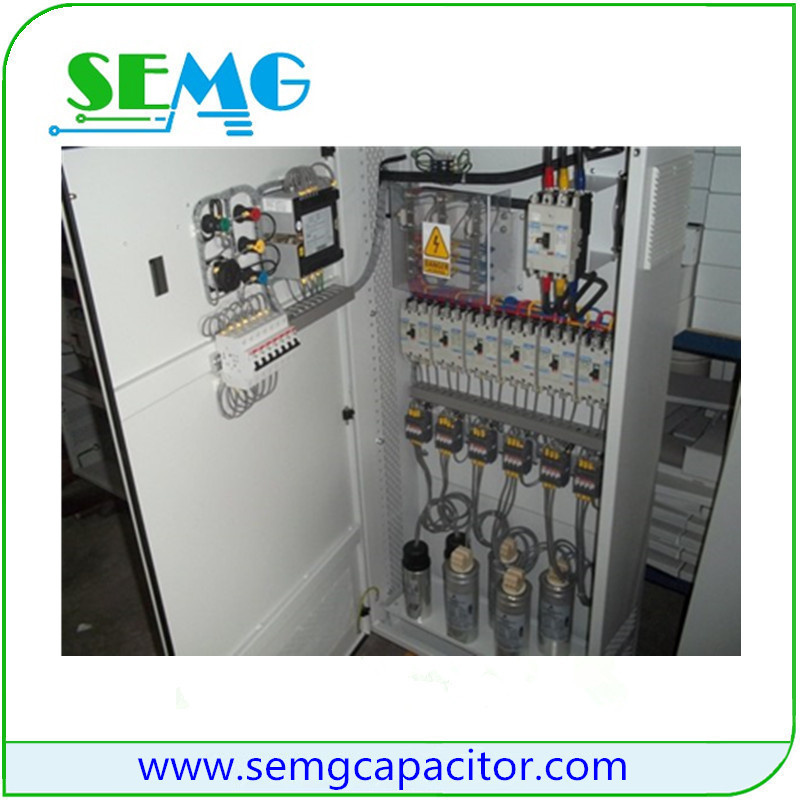

50Hz 280V Low-Voltage Capacitor Banks
Features:
This kind of capacitor adopts zinc aluminum edge thickening metalized polypropylene film as dielectric,
Use for high speed winding machine, aluminium shell rolled closely packaged into, and adopts refined
Castor oil as impregnant in high temperature and the vacuum macerate process, make capacitors more
Stable performance, to live longer, and take the second generation of mechanical explosion-proof design, higher reliability.
1.Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz
frequency power.
2.Self-healing property.
3.High stability and reliability.
4.Safer with anti-explosion design.
5.Round capacitor, can be provided oval capacitor.
6.Single capacitor, can be provided doube capacitor.
Using:
Widely used in household air-conditioner etc frequency for 50Hz ac power supply / 60Hz of single-phase motor start-up and operation, and high-power lamps power factor compensation.
| or, air conditioner, washing machine, water pump and generator. |
| Safety Class: | P1, P2 |
| Certificate: | CE, ROHS, CUL, TUV, DIN, CQC, SGS |
| the Leader type: | Wire/2 pin/4pin |
| Material: | Plastic/metal case |
| Housing Color: | black, white aluminium, grey aluminium, blue |
| product Size: | kinds of different sizes or as customer' s request. |
No Model Capacitance
1 CBB65 15+3UF 440V /370VAC
2 CBB65 15+4UF 440V /370VAC
3 CBB65 15+5UF 440V /370VAC
4 CBB65 20+3UF 440V /370VAC
5 CBB65 20+4UF 440V /370VAC
6 CBB65 20+5UF 440V /370VAC
7 CBB65 25+3UF 440V /370VAC
8 CBB65 25+4UF 440V /370VAC
9 CBB65 25+5UF 440V /370VAC
10 CBB65 30+1.5UF 440V /370VAC
11 CBB65 30+2.5UF 440V /370VAC
12 CBB65 30+3UF 440V /370VAC
13 CBB65 30+4UF 440V /370VAC
14 CBB65 30+5UF 440V /370VAC
15 CBB65 30+6UF 440V /370VAC
16 CBB65 30+7.5UF 440V /370VAC
17 CBB65 30+10UF 440V /370VAC
18 CBB65 35+1.5UF 440V /370VAC
19 CBB65 35+2.5UF 440V /370VAC
20 CBB65 35+3UF 440V /370VAC
21 CBB65 35+4UF 440V /370VAC
22 CBB65 35+5UF 440V /370VAC
23 CBB65 35+6UF 440V /370VAC
24 CBB65 35+7.5UF 440V /370VAC
25 CBB65 35+10UF 440V /370VAC
26 CBB65 40+1.5UF 440V /370VAC
27 CBB65 40+2.5UF 440V /370VAC
28 CBB65 40+3UF 440V /370VAC
29 CBB65 40+4UF 440V /370VAC
30 CBB65 40+5UF 440V /370VAC
31 CBB65 40+6UF 440V /370VAC
32 CBB65 40+7.5UF 440V /370VAC
33 CBB65 40+10UF 440V /370VAC
34 CBB65 45+1.5UF 440V /370VAC
35 CBB65 45+2.5UF 440V /370VAC
36 CBB65 45+3UF 440V /370VAC
37 CBB65 45+4UF 440V /370VAC
38 CBB65 45+5UF 440V /370VAC
39 CBB65 45+6UF 440V /370VAC
40 CBB65 45+7.5UF 440V /370VAC
41 CBB65 45+10UF 440V /370VAC
42 CBB65 50+1.5UF 440V /370VAC
43 CBB65 50+2.5UF 440V /370VAC
44 CBB65 50+3UF 440V /370VAC
45 CBB65 50+4UF 440V /370VAC
46 CBB65 50+5UF 440V /370VAC
47 CBB65 50+6UF 440V /370VAC
48 CBB65 50+7.5UF 440V /370VAC
49 CBB65 50+10UF 440V /370VAC
50 CBB65 55+1.5UF 440V /370VAC
51 CBB65 55+2.5UF 440V /370VAC
52 CBB65 55+3UF 440V /370VAC
53 CBB65 55+4UF 440V /370VAC
54 CBB65 55+5UF 440V /370VAC
55 CBB65 55+6UF 440V /370VAC
56 CBB65 55+7.5UF 440V /370VAC
57 CBB65 55+10UF 440V /370VAC
58 CBB65 60+1.5UF 440V /370VAC
59 CBB65 60+2.5UF 440V /370VAC
60 CBB65 60+3UF 440V /370VAC
61 CBB65 60+4UF 440V /370VAC
62 CBB65 60+5UF 440V /370VAC
63 CBB65 60+6UF 440V /370VAC
64 CBB65 60+7.5UF 440V /370VAC
65 CBB65 60+10UF 440V /370VAC
66 CBB65 65+1.5UF 440V /370VAC
67 CBB65 65+5UF 440VAC/370VAC
68 CBB65 70+5UF 440VAC /370VAC
69 CBB65 80+5uF 440VAC/370VAC
Since 1985, SEMG is one of the leading electronic component manufacturers located in Baoan District, Shenzhen City, China, and has been specializing in designing, researching, developing, manufacturing, exporting and processing professional Aluminum Electrolytic Capacitors, Magnet material, PCBA. Now it's becoming the most reliable and famous supplier in China.
SEMG Electrolytic Capacitors
We offer over 23 series 10 thousand various kinds of capacitors products and monthly output up to 2 millions pieces.
*General Purpose aluminum Electrolytic Capacitors
*Low ESR & High Frequency aluminum Electrolytic Capacitors
*Low Impedance &High Ripple aluminum Electrolytic Capacitors
*Low ESR &Long load life aluminum Electrolytic Capacitors
*High ripple &long load life aluminum Electrolytic Capacitors
*snap-in aluminum Electrolytic Capacitors
*SMD Capacitor
*Solid Capacitors
The capacitors we produced widely used for power supply and LED driver, Ballast, Adaptet, SMPS, Home appliances etc. The annual output is more than 800million electrolytic capacitors a year.
SEMG is a ISO Certificated company, the quality of us had pass, RoHS, Reach, CE etc. And we can design the quality products as the customers needed!
SEMG Smartnoble EMC shielding Material
Smartnoble is a subsidiary company of SEMG, focus on the manufacturing and supplying EMC shielding material with silcone rubber, customized shape, welcome to visit http://www.smartnoble.cn/ for details.
SEMG Printing & Acoustic Fabrics
SEMG provides the high tension and low elongation of polyester mesh, with SGS and MSDS certificates, and applicable to the high precise printing for the industries of printed circuit boards, touch panel, glass and textile, cellphones etc. And also providing the advanced acoustic fabrics, which widely used in the protection of acoustic devices, and perform well to meet customer's demand, with its accurate holes and air current control, and its excellent stability to the different environment.
SEMG PCB Fabrication:
SEMG produces the samples and small volume of High layer and rigid-flex PCB, and big volume of low techology PCB.
1) Manufacturing facilities in China for a total capacity of over 4.0 million FT2/month, building area: 500, 000sq. FT, and typical PCB Equipment includes: Mitsubishi Laser Machines, Horizontal Copper plating, Horizontal Silver plating, Heavy Gold plating, Inner Finger beveling, and Automatic Appearance Inspection, etc.
2) Process Capability: Trace Width 3/3mil for volume production, 2/2mil for prototype, min. Mechanical hole 0.15mm, min. Laser via: 0.1mm.
3) Broad product range with expertise in:
Prototype, medium and high volume production of single-side, 2L, 4L to max. 28L.
Max. HDI capability (4+N+4) PCBs.
High frequency and high performance PCBs
Heavy copper PCBs (up to 12oz inner copper)
Aluminum-based PCBs
4)Certificates: ULNo.: E96016, ISO9000-, ISO/TS16949(Automative),
ISO13485 (Medical) -certified and Bellcore-compliant(Telecom).
5) Global support across different continents.
Other service: R&D of wireless modules
SEMG is focus on the researching and development of wireless modules and products, with WiFi, ZIGBEE, and Blue tooth solutions.
