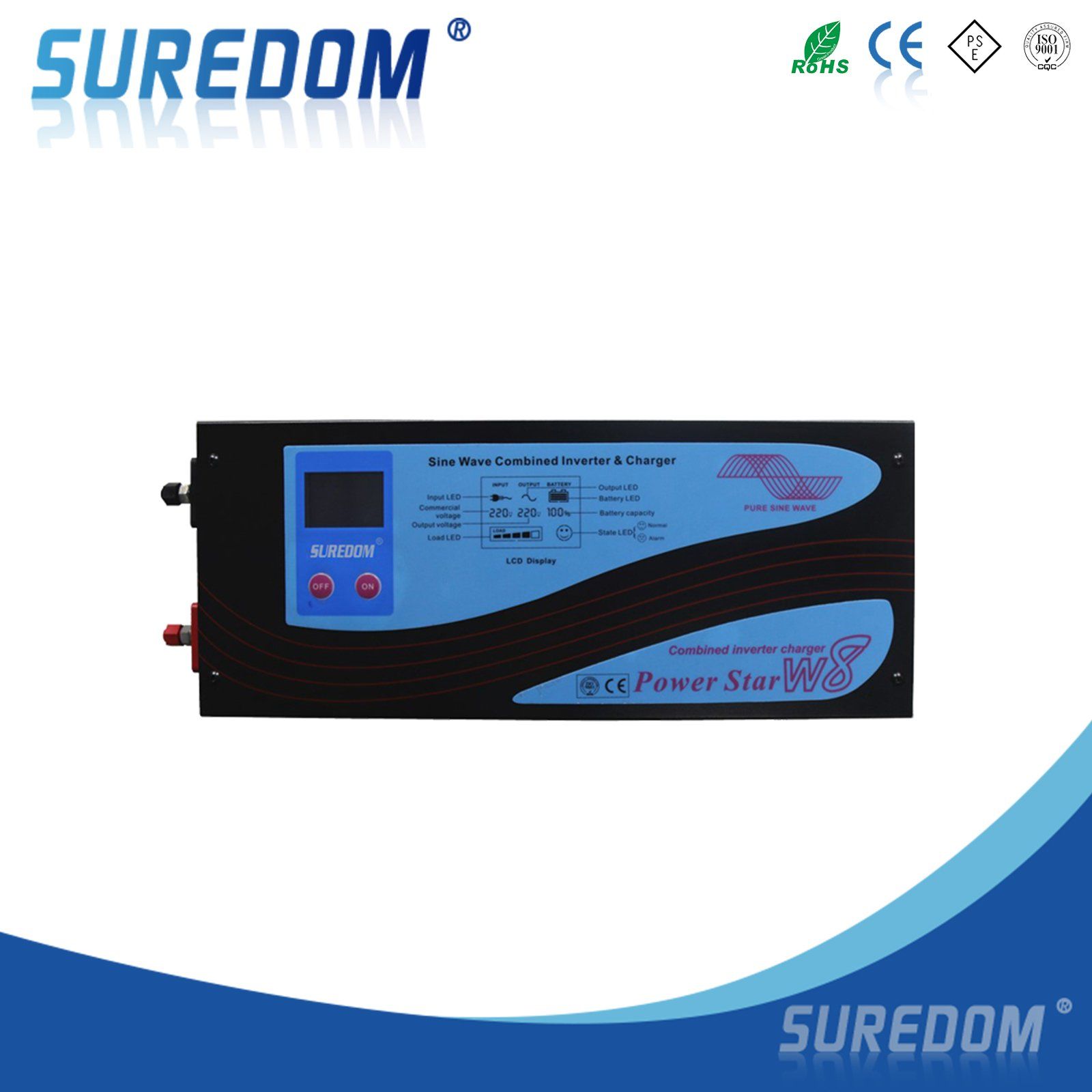

50Hz 60Hz 2000W Pure Sine Wave Inverter with AC Charger

Name: 50Hz 60Hz 2000W Pure Sine Wave Inverter with AC Charger
Brand: all-electronics-online.com
SKU: 819463265
Availability: InStock
Rating: 4.5 (150 reviews)

Price:	US $ 223.59-225.01/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Suredom-PU-2000W
Input Voltage:	DC 12V/24V/48V/96V/110V/192V
Output Voltage:	110V/220V/380V
Rated Power:	1000W/2000W/3000W/4000W/5000W/6000W/7000W/8000W
Peak Power:	2000W/4000W/6000W/8000W/10000W/12000W
Protection:	Reverse/Overheat/Overvoltage/Overload/Low Voltage
Color:	Back/OEM
USB Port:	Yes/OEM
Outside Sheel:	Alumunium/OEM
LCD:	Yes
Delivery Time:	3 Working Days

Product Description

50HZ 60HZ 2000w pure sine wave inverter with AC CHARGER


/Technical Specificatons
/Item	DX1000W	DX2000W	DX3000W	DX5000W	DX6000W	DX8000W	DX10000W
	DC12V/24V	DC12V/24/48V	DC12V/24/48V	DC48V	DC48V	DC96V	DC96V
1./AC Mode Specifications
/Imput wave form	pure sine wave(Main power or Generator)
/Imput voltage	220V AC
/Low voltage cut off	145V+/-4% 165V+/-4%
/Low voltage recover	155V+/-4%				175V+/-4%
/High voltage cut off	285V+/-4%				265V+/-4%
/High voltage recover	275V+/-4%				255V+/-4%
/Frequency	50Hz/60Hz(Automatic detection)
/Output wave form	/sam with AC imput voltage wave form
/Overload protection	/alarm
/Short circuit protection	/trip
/Efficiency	>95%
/Transfer current	30A			60A
/Transfer time DC TO AC	10ms
/Transfer time AC TO DC	10ms
/Inverter Mode Specifications
/Rated power	1000W	2000W	3000W	5000W	6000W	8000W	10000W
/Power factor	0~1.0
/Output voltage	220V AC
/Frequency	50Hz+/-0.3Hz
(Hz)Automotive tracking the main frequency	50Hz@48-54Hz/60Hz@58-664Hz,Yes(start from the first connection)50Hz@48-54Hz

/Imput voltage range	+/-10%rms			(-25%/+20%)rms
/Efficiency	>80%
/Overload protection(SMPS load)	(110%

/Peak capacity	2000W	4000W	6000W	10000W	12000W	16000W	20000W
/Short circuit protection	/protect immediately
/imput voltage	12V/24V/48V/96V
/Min DC voltage	10V/20V/40V/80V
/Undervoltage warning	10.5Vdc+/-0.3Vdc(12Vbattery)21.0Vdc+/-0.6Vdc(24Vbattery) 84Vdc+/-2.4Vdc(96Vdbattery)

imputevoltage warning and cut off	15Vdc+/-0.3Vdc(12Vbattery)/30Vdc+/-0.6Vdc(24Vbattery)60Vdc+/-1.2Vdc (48Vbattery)120Vdc+/-2.4Vdc(96Vbattery)

DC imput too low,Automatic cut off	10.0Vdc+/-0.3Vdc(12vbattery)40.0Vdc+/-1.2Vdc(48Vbattery)20.0Vdc+/-0.6Vdc(24Vbattery)80.0Vdc+/-2.4Vdc(96Vbattery)

/Save power(load)
3./Charger Mode Specifications
/Chargering current	30A/15A	50A/25A/15A	50A/25A/15A	15A	15A	15A	15A
/Chargering current correction	+/-5Adc

/Battery initial voltage	0-13.7Vdc
/Charger short circuit protection	/trip

/Overload protection	V≥14.7Vdc/30.4Vdc,every half second sounds
4./Charging Rules
/Three phases	(constant current chargering phases)→(constant voltage chargering phases)→(float chargering phase)

5./Physical
/Computer Monitor	RS232
/Inverter Mode overload	/shut-down protection
/Operate Temperature Range	0ºC to 40ºC
/Store Temperature	-15ºC-60ºC
Cooling	/Fan in ventiltation conditions
/Dimension(MM)	375130190MM	450215180MM	450215180MM	620215180MM		310610520MM
/N.G(KG)	12KG	21KG	26KG	46KG	49KG	79KG	81KG

Contact Information:

Please contact us through email to me, we will assist you in any way possible and aim to answer all emails within 24-48 hours.

FAQ

Q1. The electric appliance doesn't work and the indicator light isn't on.

Reason:

1. Faulty battery.

2. Wrong connection of positive pole and negative pole.

3. Loose connection of the cables.

Answer:

1. Check the battery, and change it if needed.

2. Check the connection of battery. The inverter might be damaged and should

be changed or sent to be repaired.

3. Check the cables and connection points, and tighten the terminals.

Q2. The electric appliance doesn't work and the RED indicator light is on.

Reason:

1. The rated power of electric appliance exceeds the nominal power of inverter

which leads to over loadshutdown.

2. The rated power of electric appliance is less than the nominal power of the inverter

but its peak power is too high which leads to over load shutdown

3. The electricity in battery runs out (the inverter alarms)

4. Poor ventilation causes over heat shutdown

5. Input voltage is too high.

Answer:

1. Please use the electric appliance which power is less than the nominal power of inverter.

2. The peak power of electric appliance is no more than that of power inverter, or the same power.

3. Charge the battery or change it.

4. Turn off the inverter for 15 minutes, remove the items near fan and those around the inverter,

and put the inverter in a shady and cool place

5. Turn off the inverter and test the output voltage of battery.

Q3. The output voltage of power inverter tested is too low.

Reason: Generally the numerical reading range of voltmeter for testing use is too small.

Answer: If you test the output voltage of modified sine wave inverters, please use "true RMS

Multi-meter" to obtain the accurate data.

Q4. Only small power load can be driven.

Reason: When the current goes through the cables, the voltage declines.

Answer: Shorten the length and use thicker cables.

Q5. The hours of use are too short.

Reason:

1. The electricity consumption of the electric appliance is larger than rated load of power inverter.

2. The battery is faulty or damaged

3. The battery is not well charged

4. The current declines when through cables

Answers:

1. Use larger capacity battery.

2. Change battery.

3. If the charger can't charge the battery fully, it needs to change a better intelligent charger.

4. Shorten the length of the cables and use the thicker cables.

Q6. How to contact your esteemed company and buy the inverters?

Reason:

We are in the different regions, but we want to establish the long business with your and your excellent comoany.

Answers:

A letter for you

Dear customer:

Before sending your preferred inquiry to us, it will be appreciated if you can inform us:

1. The loading power;

2. The input voltage(12v or 24v ......);

3. The output voltage(110v or 220v or 240v);

4. AC Plug style;

5. Order quantity;

Then we can reply you according to your requirements within 24 h
