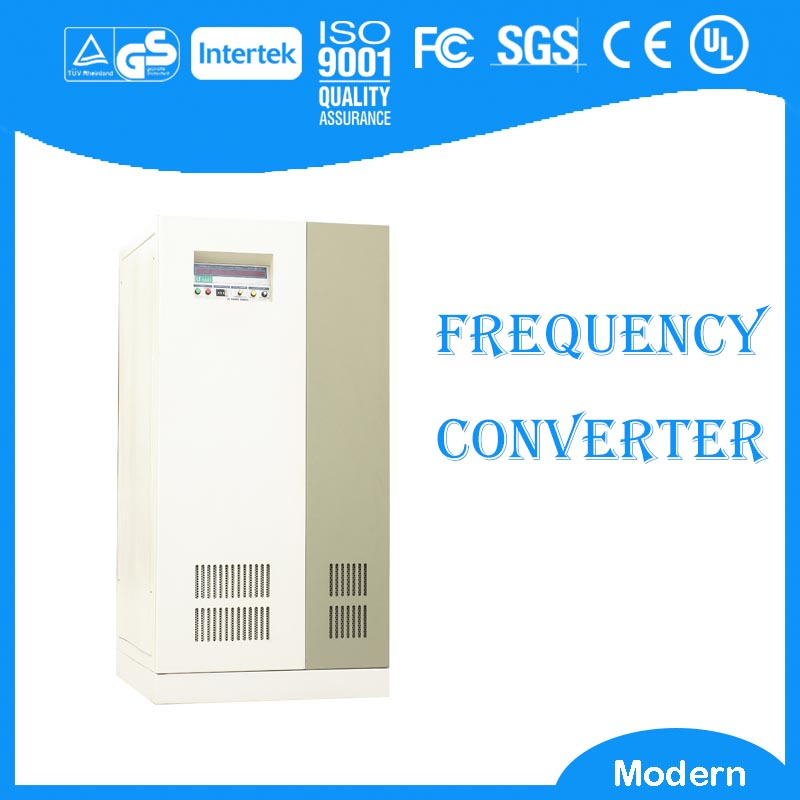

50Hz, 60Hz, 400Hz AC Frequency Converter
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
AFC-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Principle Of Work: |
Vector Control Transducer |
| Main Circuit Type: |
Voltage |
| Application: |
Single-phase Transducer |
| Switch Mode: |
PWM Control |
| Output Type: |
50/60, 400 Hz Optional |
Product Description
MODERN Frequency Converters are available in several different configurations to suit any frequency conversion need. Inputs and outputs are available in any combination of 50, 60, and 400 Hz. Frequency converters are very commonly used to test products designed for use in a different country before it is shipped. Using a frequency converter allows you to precisely emulate the grid power of your target environment in a controlled laboratory setting. They may also be employed when powering machinery from overseas.Features:· Frequency Conversion
· Voltage Conversion
· Special Phase Conversion; 1 Phase To 3 Phase, and 3 Phase To 1 Phase
· Well protection and fault alarm function
· Complete Electrical Line Isolation
· True Sine Wave Output
· Quick response time <20ms
· High accurate output voltage and frequency
|
Circuit mode |
IGBT/PWM pulse width adjustment mode |
|
Wire system |
3-phase-5-wire-system |
|
Input voltage |
Phase to phase: 265-495V |
|
Input frequency |
30-70Hz |
|
Output voltage |
Phase to phase: 380V |
|
Output frequency |
50/60Hz, 400Hz optional |
|
Frequency stability |
≤±0.01% |
|
Insulation resistance |
Above 500Vdc 20MΩ |
|
Pressure endurance insulation |
1800Vac/5Ma/1minute |
|
Cooling device |
Compulsive fan cooling |
|
Noise |
<55dB |
|
Wave deformation |
≤2% |
|
Reaction time |
Dynamic response quick, when load 0-100% change, the steady-state response time <20ms |
|
Efficiency |
Efficiency more than 90%, be suit for wide-load, can be for the inductive, capacitive, resistive, and any mixed loads |
|
Protective device |
The importation of non-fuse switch, without output fuse switch, the electronic circuit to detect over-voltage express .Over voltage, over current, over temperature, over load, short circuit, and automatic alarm |
|
Display |
Digital frequency meter, Digital voltage meter, Digital current meter, Digital power/PF meter |
|
Ambient temperature operating |
-10 °C to +50 °C |
|
Altitude |
<1500m |
|
Relative humidity |
<90% |
Wenzhou Modern Completed Electric_Power Equipment Co., Ltd. is one of the longest lasting innovators of Power Quality and Energy Saving Products in China. In an industry where companies come and go, MODERN continues to provide the reliability and continuity you need.
Experienced and Fully Customizable Solutions
As a global exporter with over 30 years expertise in power solution, MODERN design, prototype and manufacture custom power requirements for a wide variety of customer and market. We offer a broad range of electrical products from various transformers and voltage stabilizers to sophisticated energy saving power conditioners, power factor correction and harmonic mitigation products. Our experienced staff of engineers is available to assist you in configuring exactly the right product to meet your specifications. They stand ready to work with complex special applications or simple modifications to our standard product line.
ISO 9001: 2008 Certified Processes
ISO Certification ensures that the best of international manufacturing processes are used for every MODERN product. Our conservative design philosophy, tightly controlled product configuration and consistent manufacturing processes ensure that every our customer gets the highest quality product possible. Because we are strongly committed to quality and customer satisfaction, we test 100% of our product before it ships, and then stand behind our workmanship with industry leading warranties.
Outstanding Service
As your power solution provider, we offer a full service customer support program. Beginning with your initial contact, our thorough application assistance ensures that you select the right product and options for your needs. Technical documentation is always available to help with your planning requirements. Prompt shipment is possible through our efficient manufacturing processes. After shipment, we support our products with a comprehensive warranty and extensive field service program.
