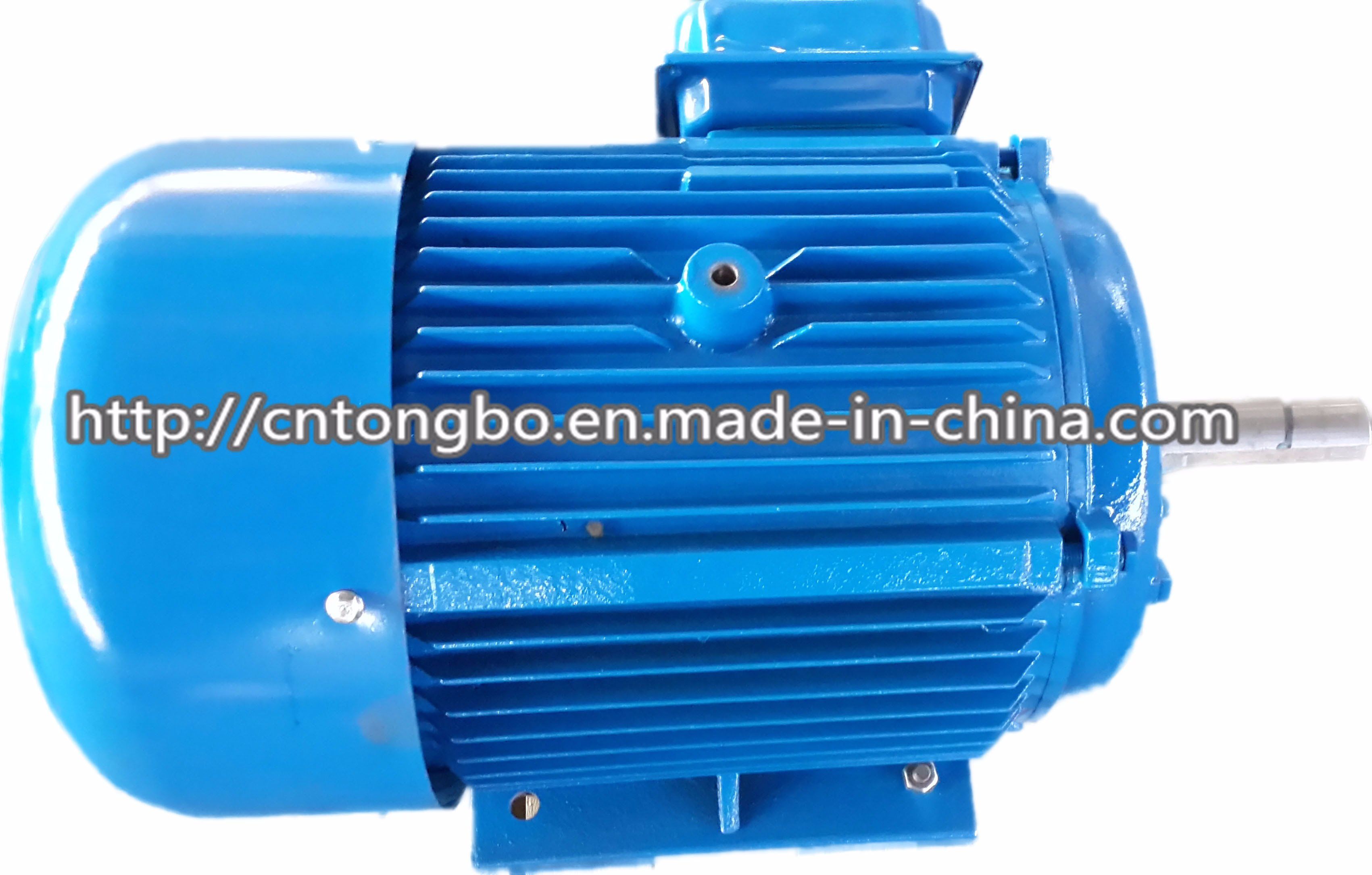

50Hz Y Series Three Phase Induction Motor

Name: 50Hz Y Series Three Phase Induction Motor
Brand: all-electronics-online.com
SKU: 827912305
Availability: InStock
Rating: 4.8 (115 reviews)

Price:	US $ 38-42/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y-801-2
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Closed Type
Starting Mode:	Auto-induction Voltage-reduced Starting
Certification:	IEC

Product Description

Basic Info
Model NO:Y-801-2 Operating Speed: Adjust Speed
Speed: 600/750/1000/1500/3000 Starting Mode: Auto-induction Voltage-reduced Starting
Number of Stator: Three-Phase    Application: Industrial, Household Appliances, Power Tools
Number of Poles: 2/4/6/8/10 Certification: ISO9001, CCC, IEC
Trademark: TONGBO Ambient Temperature:-15ºC<θ<40ºC
Altitude :Not Exceed1000m        Rated Voltage:380v or Any Voltage Between 220v-760v
Rated Frequency:50HZ,60HZ Protection Class:IP44,IP54,IP55
Insulation Class :B ,F             Cooling Method:IC0141
Duty:S1 Continuous              Origin: China
Introduction
Y series motor tatally enclosed and fan-cooling three-phase squirrel cage induction motor,that is newly designed in conformity with the relevant requirement of IEC standards,have outstanding performance,such as high effiency,energy-saving.highb starting torque,low noise,little vibration,reliable operation and easy maintenance,etc.Are widely used in place,where do not exists combustible,explosive or corrosive gas and without any special requirements,such as machine tools,pumps,fans,transport machinery mixer,agriculture machinery and food machines,etc.

FUAN TONGBO ELECTRICAL MACHINERY CO. Ltd. was founded on July 1st, 2009 in FU'AN city, "the city of electric machinery", as an export oriented manufacturer of Electric Motors, AC Generators and Generator Sets. We specialize in R&D, production, sales and customer service of said items and pride ourselves as professionals in related area.

Our own brand "TONG BO" consists of different models of motors listed as below:

1. Three phase asynchronous motor - Y series, Y2 series, AEEF series etc.

2. Single phase asynchronous motor --YC series, YL series, JY series

3. Aluminum Casing three phase asynchronous motor --MS series

4. Aluminum Casing single phase asynchronous motor--MC series, MY series, ML series

"TONGBO" Brand AC generator models are listed as below:

1. Single phase ST series with brush

2. Three phase STC series with brush

3. Copy Stamford TBS brushless series

We also have generator sets like CUMMINGS series generator set, YUCHAI series generator set, WEICHAI series generator sets etc.

Throughout design, manufacturing process, material selection, production, equipment testing, quality control, we make every endeavor to ensure our production is in strict accordance with ISO9001 Quality Management System in order to yield high quality products.

Our products travel widely from South-east Asia to as far as Middle-east, Africa also US and European countries. TONGBO has won a high admiration and is widely trusted at home and abroad.

Our goal is to build "TONGBO" into a world-renowned brand. In order to achieve that, we promise to run an honest business by putting quality and customer satisfaction as our top priorities. With "Honesty, Team-spirit, Responsibility, Hard-work and Gratitude "as essence of our corporate culture, We shall continue to provide our valued customers with high quality products and professionalism to the best of our abilities.
