| Prod Model: |
YLE60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Avaliable |
| Frequency Bandwidth: |
2.25gbps (Single Link) |
| Power Supply: |
5V/1A DC |
| Usage: |
Computer |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

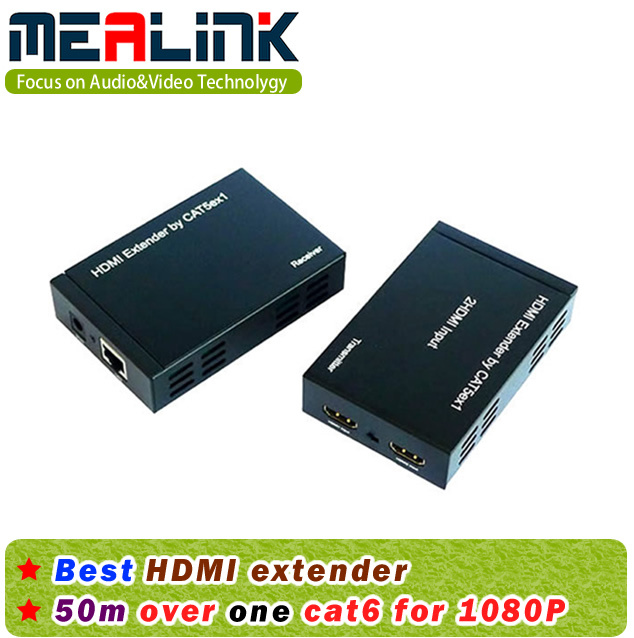

The HDMI Extender over ONE CAT5E/CAT6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT5E/CAT6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Extender and receiver, over ONE CAT5E/CAT6 extender is your substantial HDMI extender tool.
Features
1. HDMI 1.3, HDCP 1.1 and DVI1.1 Compliant.
2. Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
3. Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away.
4. When transmitting a signal in 1080p resolution the CAT5E/CAT6 operating distance is 60 meters.
5. Supports XVYCC
Operation Controls and Functions
1. HDMI Extender Transmitter
Front Panel
1) HDMI1: HDMI1 Input port.
2) SW: Switch the HDMI1 and HDMI2 input port.
3) HDMI2: HDMI2 Input port. Rear Panel
1) Power: Plug the 5VDC power supply into the unit And connect the adaptor to AC wall outlet.
2) LED indicator: When the DC5V power on, the Indicator will be light.
3) CAT5E/CAT6 OUT: Connect the CAT5E/CAT6 Output of the transmitter with the CAT5E/CAT6 input Of the HDMI over single CAT5E/CAT6 receiver.
2. HDMI Extender Receiver
Front Panel
1) HDMI Out: HDMI output port.
2) LED indicator: When the HDMI input signal is locked, The indicator will be light. Rear Panel
1) Power: Plug the 5VDC power supply into The unit and connect the adaptor to AC wall outlet.
2) LED indicator: When the DC5V power on, The indicator will be light.
3) CAT5E/CAT6 Input: Connect the CAT5E/CAT6 Input of the Receiver with the CAT5E/CAT6 output of the HDMI over single CAT5E/CAT6 Transmitter.
Specification: |
| Frequency Bandwidth | 2.25Gbps (single link) |
| HDMI Transmitter Input/Output Ports | 2 x HDMI Female port/1 x CAT5E/CAT6 |
| HDMI Receiver Input/Output Ports | 1 x HDMI Female port/1 x CAT5E/CAT6 |
| Power Supply | 5V/1A DC |
| ESD Protection Human Body Model | ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
| Dimensions (mm) | 65(W) X 100 (D) X 25 (H) |
| Chassis Material | Aluminum |
| Operating Temperature | 0' C ~ 40' C / 32' F ~ 104' F |
| Storage Temperature | -20' C ~ 60' C / -4' F ~ 140' F |
| Relative Humidity | 20~90% RH (non-condensing) |
Mealink Electronics (Shenzhen) is a high-tech company specialized in digital Audio/video techniques. Our products include series of HDMI products, video converter, extender, VGA/Component/DVI/USB related splitter, swtich, extender, cables, etc. Our products can distribute, convert, amplify and extend HDMI signal under all kinds of A/V signal standards' encryption and decryption requests. It includes HDMI switch, HDMI splitter, HDMI extender, HDMI matrix, HDMI cable, etc. Our products cover a wide range of application which can offer the solutions for the following products and project application: HDTV digital STB, DVD, Projector, Multi-media Conference Room, Command Center, Multi-media classroom, conference room, data center control, information distribution.
