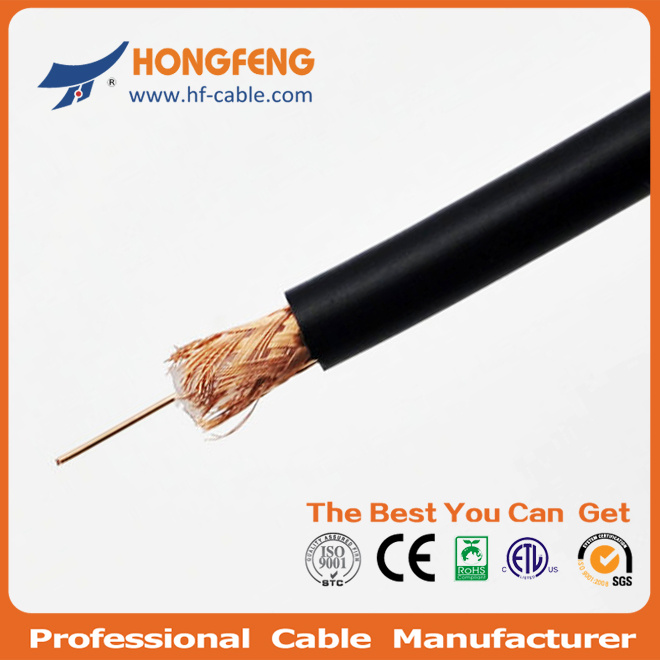

50ohm Cable Rg213 Coaxial Cable

Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia
Inner Conductor:	Cu
Dielectic:	Sold PE
Shield:	Bare Copper
Jacket:	PVC or PE
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	CE
Type:	Coaxial Cable

Product Description

Coaxial Cable RG213
1. Specifications:
1) 7X0.75mmBareCopper+7.24mmSolid PE+96%BareCopperBraiding +10.3mmPVC(or PE)
2) Customers' specifications are welcomed

Note:
1) Center Conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available;
4) Braiding Wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15mm available;
5) Braiding Coverage: Between 30- 95% available
6) Jacket Color: White, black, etc.

Packaging:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's requirement;
2) Inner Packing: Wooden reel, Plastic reel, and Paper reel available;
3) Outer Packing: Carton Box, Pull out Box, Pallet available;
4) Other packing available according to client's requirement.

Product Origin: China
Brand Name: RuiFeng or OEM
Productivity: 300, 000Km/Year
Price Terms: FOB, CIF, CFR
Payment Terms: L/C, T/T, Western Union
Shipping Date: Generally within 15days

#Coaxial Cables:
1) RG Series Coaxial Cable: RG58, RG59, RG6, RG7, RG11, etc;
2) Network Cables: LAN Cable CAT3, LAN Cable CAT5;
3) Combined Cable: Siamese Cables: RG59+2C, RG6+2C, etc.

#Applications:
1) CATV-community antenna television;
2) CCTV-closed-circuit television;
3) DBS-direct broadcasting satellite.

Item	Material	Diameter(mm)
1. Inner Conductor	Bare Copper	7X0.75± 0.2
2. Dielectric	Solid PE	7.24± 0.2
3. Outer Conductor	97% Cu-Bare Braid	7.85± 0.2
4. Jacket	PVC	10.3± 0.2


Electrical Characteristics Mechanical and Environmental Characteristics

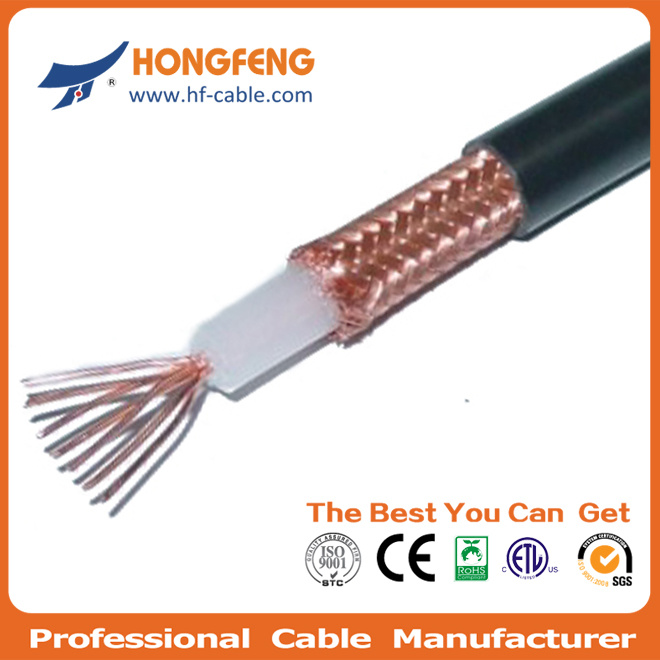

Item	Specification	Product Picture
Impedance (Ω )	50
Capacitance (pF/m)	101
Min. bending radius (mm)	55
Velocity of propagation (%)	66
Voltage withstand (VDC)	5000
Dielectric Strength	10.0 ( 50Hz KV )
Operating temperatrue (° C)	-30° C~+80° C
Installation temperatrue (° C)	-30° C~+80° C
Weight (kg/m)	0.16
