50ohm CCTV Cable

Prod Model:	rg59, rg6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	CCS or Copper
Braiding:	60% or 90%
Shield:	Double Shield ,Tri Shield ,Quad Shield
Apd:	Jelly
Jacket:	PVC or PE
Colour:	Any Colour
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ETL
Type:	Coaxial Cable

Product Description

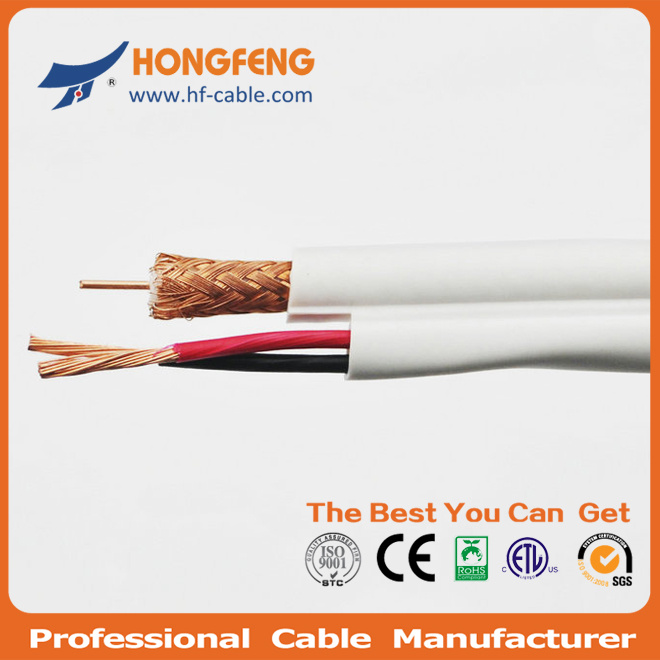

Rg59 coaxial siamese cctv cable


Basic Info.
Model NO.: RF coaxial cable
Application: Local Communication Cable
Conductor Material: Copper
Type: Coaxial Cable
Cover Material: PE
Certification: CE
Jacket: PVC
Jacket Color: Black/White/Color
Impedance: 75 Ohm
Braid Shied Material: Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor: CCS, CCA, Cu
Inner Conductor Diameter: 0.8-1.3mm
Certificate: ISO9001, Cl2/CATV/Cm UL
Dielectric: 3.66-5.72mm
Insulation Material: Bonded/Non Bonded
Jacket Diameter: 6.1-8.08mm
Export Markets: Global
Additional Info.
Trademark: Hongfeng cable
Packing: 100m/Roll, 200m/Roll, 305m/Roll, 100yard/Roll,
Standard: Rg11 rg59 rg6
Origin: China
HS Code: 85442000
Production Capacity: 100, 000kms/Year
Product Description
1. RG11 RG59 RG6 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome

Such as: 1.02mm B. C Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 6.91 PVC jacket white

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
