50ohm PVC Rg58 Electrical Coaxial Cable Wire

50ohm PVC  Rg58 Electrical  Coaxial Cable  Wire
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1KM
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: RG58 Coaxial Cable
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Center Conductor: Solid Bare Copper/Copper Clad Steel
Dielectric: Foam PE/Solid PE
Shield: Al Foil/Bonded Al Foil
Braiding Wire Material: Al/BC/Tinned Copper
Jacket Color: Black\White\Per Customers' Special Requirement
Outer Packing: Carton box, pull out box, pallet
Application: Coaxial Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Type: Rg58
Certification: ISO ETL CE RoHS Reach SGS BV

Product Description

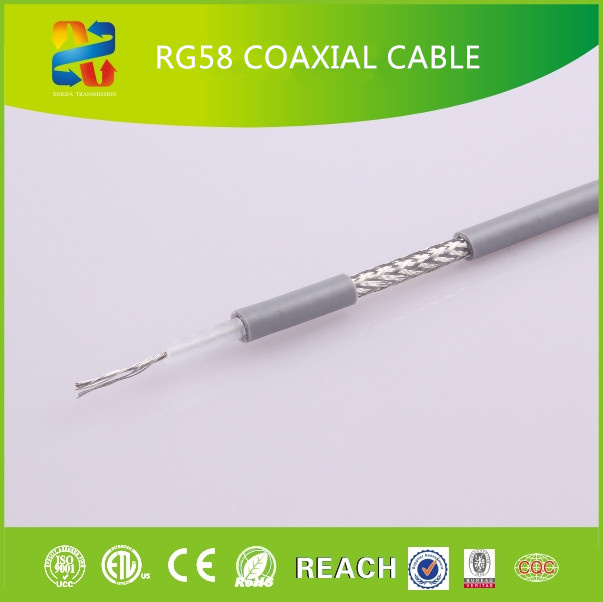

RG58 Coaxial Cable
1) Construction
Center Conductor: 19X0.18mm Solid Copper/20 AWG Solid Copper
Dielectric: 2.95+0.05mm Solid PE
Braid Coverage: 95% Tinned Copper
Jacket: 5.08+0.10mm PVC
Jacket Thickness: 0.762mm

2) Characteristics

Sparker Test: 2000VAC
Dielectric Strength: Conductor to Shield: 1500 VDC
Impedance: 50+3pF/km
Capacitance: 28.5+3pF/Ft (Nom. )
Velocity of Propagation: 66%
DCR: Conductor: 10.55 ohms/1000Ft
Shield: 4.1 Ohms/1000Ft
SRL: 15dB (10 to 300 MHz) 100% Swept Test

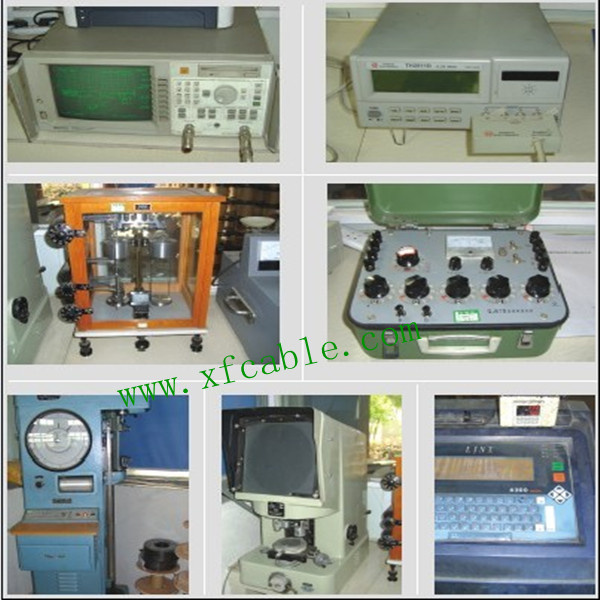

3,Test Equipment

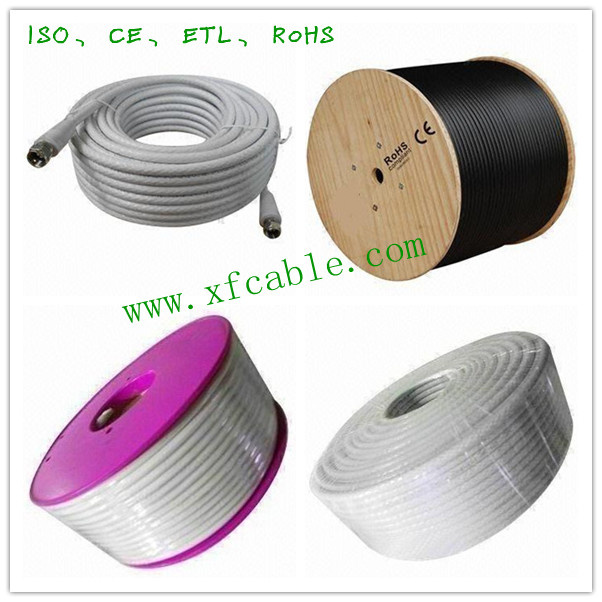

4,Certification5,Package

6, Attenuation
Attenuation[@68o F. (20o C. )]
Frequency (MHz)Nom. (dB/100 ft. )
10.44
101.42
503.10
1004.50
2006.80
40010.0
70014.0
90016.0
100017.0
We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.

Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.

We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.

"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
