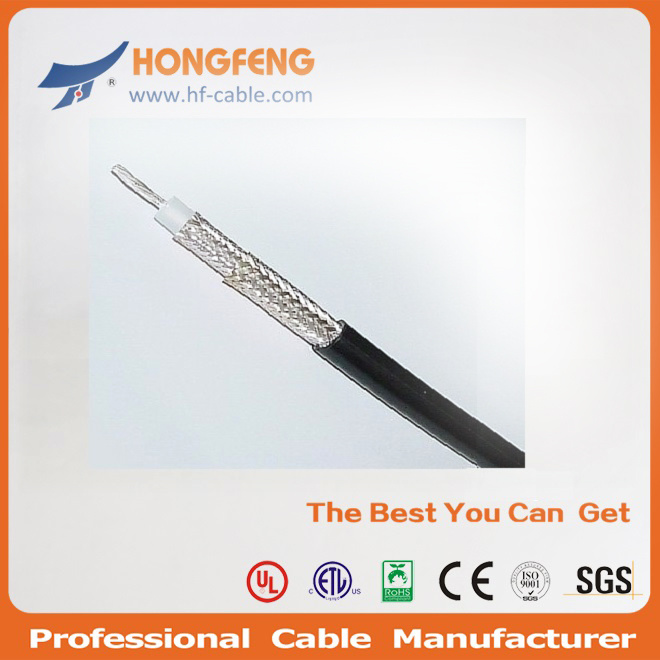

50ohm Wireless Cable-Rg214 Coaxial Cable

Prod Model:	RG214
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Model:	Rg214
Brand:	Hf

Product Description

Basic Construction rg214:

7X0.75mmBare Copper+7.24mmSolid PE+96%BareCopperBraiding +10.8mmPVC(or PE)

Customers' specification are welcomed.

Note:
1) Center Conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available;
4) Braiding Wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15mm available;
5) Braiding Coverage: Between 30- 95% available
6) Jacket Color: White, black, etc.

Packaging:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's requirement;
2) Inner Packing: Wooden reel, Plastic reel, and Paper reel available;
3) Outer Packing: Carton Box, Pull out Box, Pallet available;
4) Other packing available according to client's requirement.

Product Origin: China
Brand Name: RuiFeng or OEM
Productivity: 300, 000Km/Year
Price Terms: FOB, CIF, CFR
Payment Terms: L/C, T/T, Western Union
Shipping Date: Generally within 15days

#Coaxial Cables:
1) RG Series Coaxial Cable: RG58, RG59, RG6, RG7, RG11, etc;
2) Network Cables: LAN Cable CAT3, LAN Cable CAT5;
3) Combined Cable: Siamese Cables: RG59+2C, RG6+2C, etc.

#Applications:
1) CATV-community antenna television;
2) CCTV-closed-circuit television;
3) DBS-direct broadcasting satellite.

RG Coaxial Cable RG214/U coaxial cable
Construction
Item		Material			Diameter(Inch/mm)
Inner Conductor		SPC			7/0.029	7/0.75
Dielectric		Solid PE			0.285	7.25
First Shield		SPC Braid 95% coverage			0.315	8.00
Second Shield		SPC Braid 95% coverage			0.344	8.75
Jacket		PVC/TPU/TPE			0.425	10.80
Electrical Characteristics
Capacitance(pF/m)					101.0
Impedance(Ω )					50.0
Velocity of Propagation(%)					66.0
Conductor DCR(ohm/km)					5.6
Outer Shield DCR(ohm/km)					2.3
Max Operating Frequency(MHZ)					11000.0
Max Operating Voltage(VRMS)					3700.0
Operating Temperature(° C)					-40 to +85
Application
Designed  for the data and wireless communication systems where higher sequences and lower attenuation required
