50va-5000va PCB Power Transformer for Solar Energy

Name: 50va-5000va PCB Power Transformer for Solar Energy
Brand: all-electronics-online.com
SKU: 691000832
Availability: InStock
Rating: 4.5 (75 reviews)

Price:	US $ 4-7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	50VA-5000VA GWB140321
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Gw-1-D etc
HS Code:	85043190
Type:	: PCB Toroidal Transformer
Power:	200va
Power Factor:	0.9 to 0.98
Frequency:	50Hz/60Hz
Usage 1:	Power, Electronic, Audio, Instrument, Rectifier,
Coil Number:	High Flux Density Grain- Oriented Silicon Steel
Winding Type 1:	: Auto-Transform
Transformer:	Converters Ring Transformer
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Certification:	Ce
Usage:	Power, Electronic
Brand:	Grewin Toroidal Transformer

Product Description

Basic data:

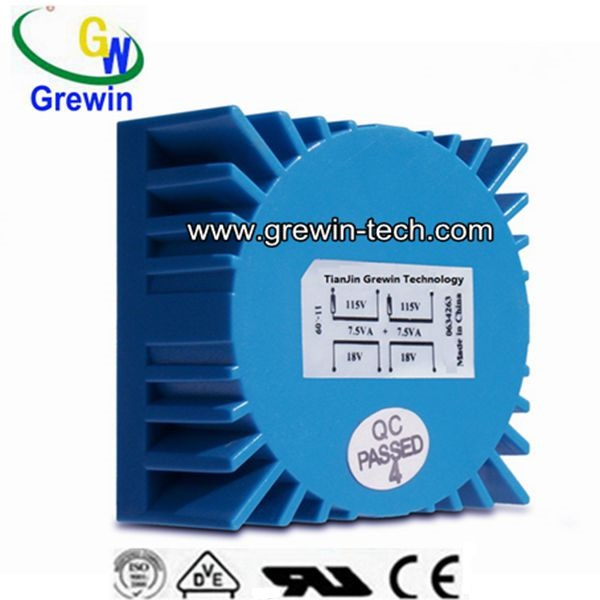

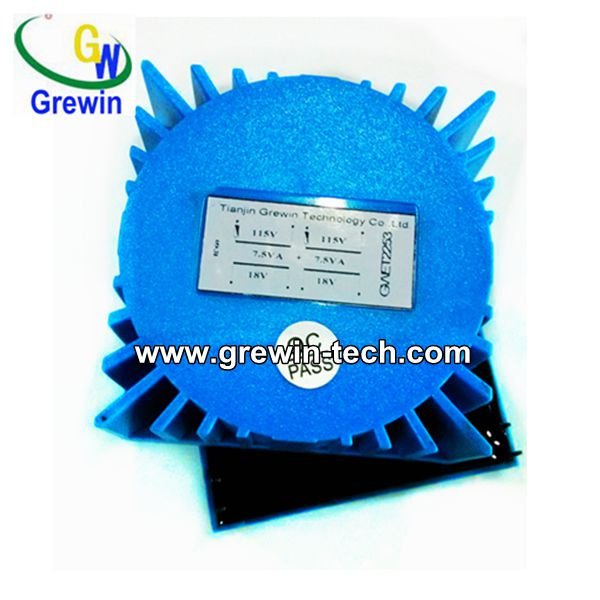

Waterproof Toroidal Transformer for Power Supply

Capacity: 8VA - 30va
Phase: Single
Input voltage: AC power with voltages of various countries
Output voltage: AC, according to customers' requirement
Frequency: 50/60Hz
Power factor: 0.9 to 0.98
Efficiency: 75 to 98%
Voltage Regulation: 12 - 3%
Output no-load loss: 0.5 to 10.0W
Temperature-rise: ≤ 85° C
Insulation class: B, 130° C; E, 120° C
General features:
100% QC from raw material to finished products
Good price-function ratio
Reliable performance and safety
Small volume and low weight
Low mechanical hum
Good shielding performance, low magnetic leakage
Dimension adjusted freely
Easy to mount and fasten
Excellent workmanship
Testing items:
No-load test (no-load current, no-load voltage, no-load loss)
Load test (load voltage, temperature-rise)
Inductive voltage test
DC resistance test
Safety test
Key parts:
Core:
Wound by high-quality cold grain silicon
Annealed by advanced vacuum annealing furnaces to improve electronic data
Any dimension from customer available
Wire: Copper and aluminum available
Weld aluminum enamel wire well to save your cost 15 - 35%, based on our know-how technology
Thermal protector: Cutoff and switch both available
Application:
Electronic meter and apparatus
Cable TV and digital network
Electronic control
Medical Equipment
New electric power supply
Decorative illumination system
Monitoring and control equipment

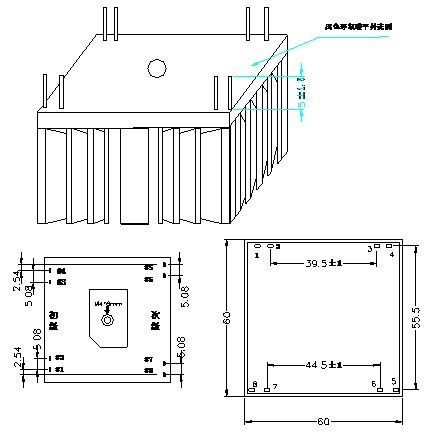

Installation: Horizontal (non-conventional-type base plate), sunk, side type, bridge

Contact:

Ella

Tianjin Grewin Technology Co.,Ltd.
Website:www.grewin-tech.com
Tel:86-18920196726

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
