50W 12V/24V LED AC/DC Switching Mode Power Supply

Name: 50W 12V/24V LED AC/DC Switching Mode Power Supply
Brand: all-electronics-online.com
SKU: 690852931
Availability: InStock
Rating: 4.9 (23 reviews)

Price:	US $ 5.99-8.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-50-24
IP Code:	IP67
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Item Name:	24V Power Supply
Size:	1904738mm
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Brand:	Weho

Product Description

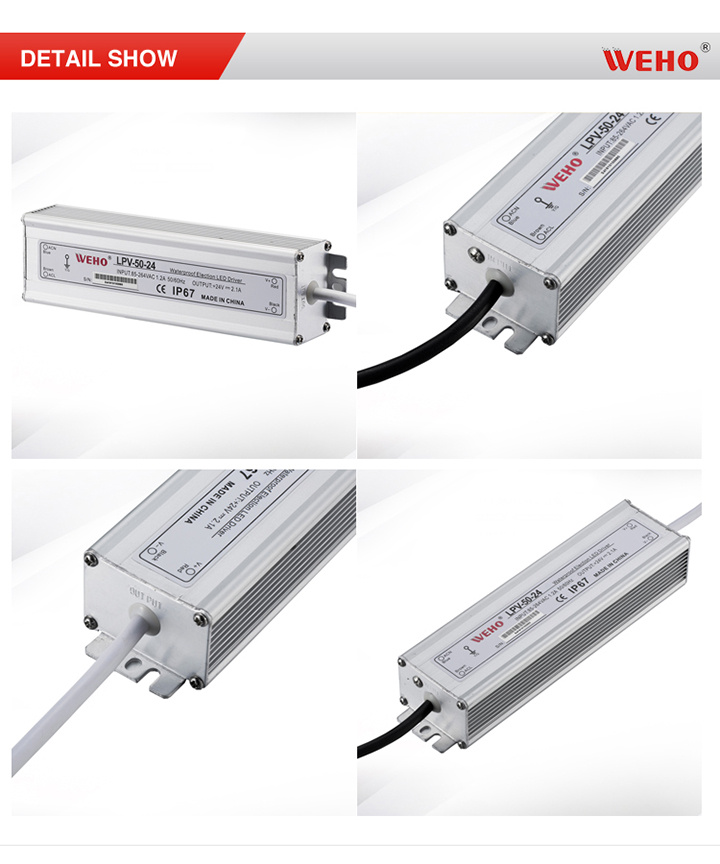

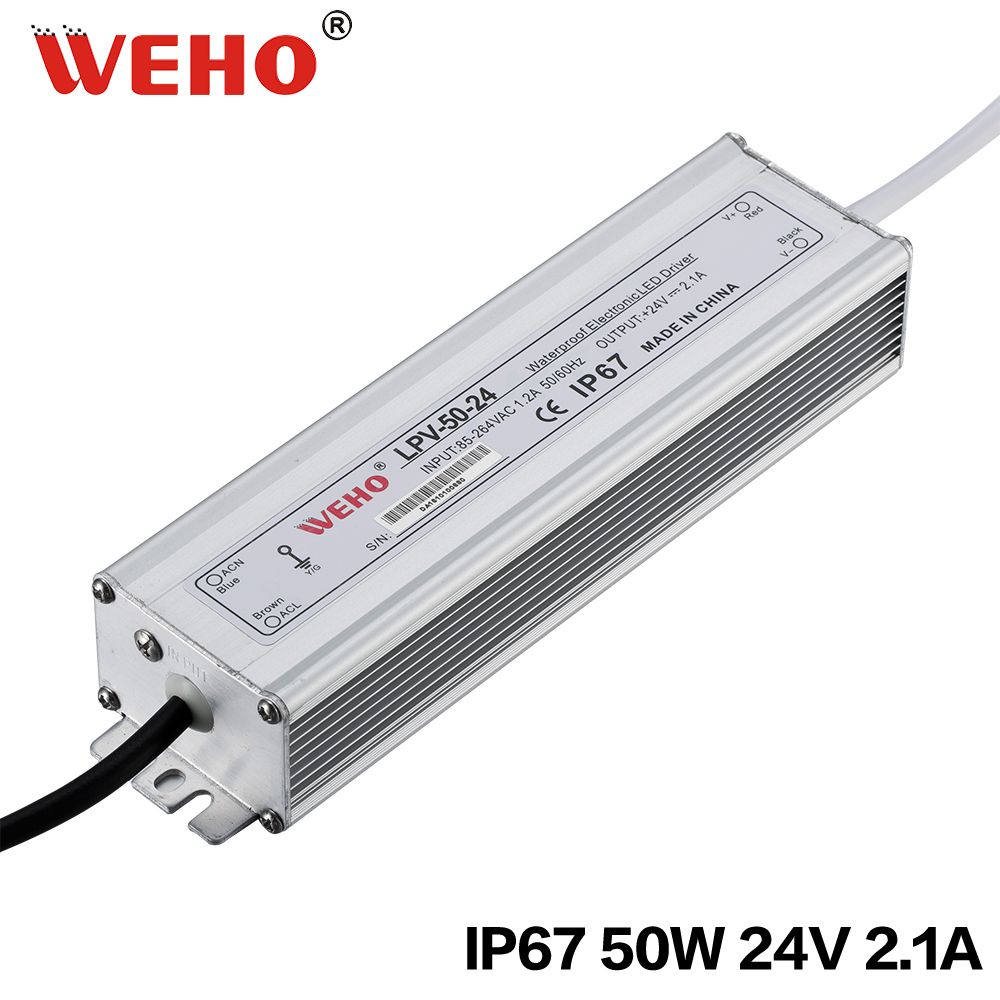

50W 12V/24V LED AC/DC Switching Mode Power Supply

Model	LPV-50-12	LPV-50-24
DC output voltage	12V	24V
Output voltage error	±1%	±1%
Rated output current	4.2A	2.1A
Output current rage	0-4.2A	0-2.1A
Wave and noise	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%
Load stability	±0.5%	±0.5%
DC output power	51W	50W
Efficiency	81%	83%
AC input voltage range	170-264VAC
Input current	0.5A/115V 0.25A/230V
AC impulse current	Cold-start current 13A/115V 26A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%150%TypeTOLDBACK Reset: auto recovery
Temperature coefficient	±0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval1.5KVAC,Input and enclosure1.5KVAC,
	Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and
	enclosure0500VAC/100M Ohms
Working temperature and humidity	-10+60,20%90%RH
Store temperature and humidity	-20+85,10%95RH
Overall dimension	190X48X38 mm
Weight	0.88Kgs
Safety standards	ROSH CE IP67 acceptable

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang WeiHao electronic co.,ltd

Address:No. 231-2| Weiliu Road |

Yueqing Economic Development Zone | Zhejiang| China

Post code:325600

Phone : +008657761777069|+008615869492061

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
