50W 12V Switching Module LED Power Supply

Name: 50W 12V Switching Module LED Power Supply
Brand: all-electronics-online.com
SKU: 729276382
Availability: InStock
Rating: 4.3 (138 reviews)

Price:	US $ 4-6/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

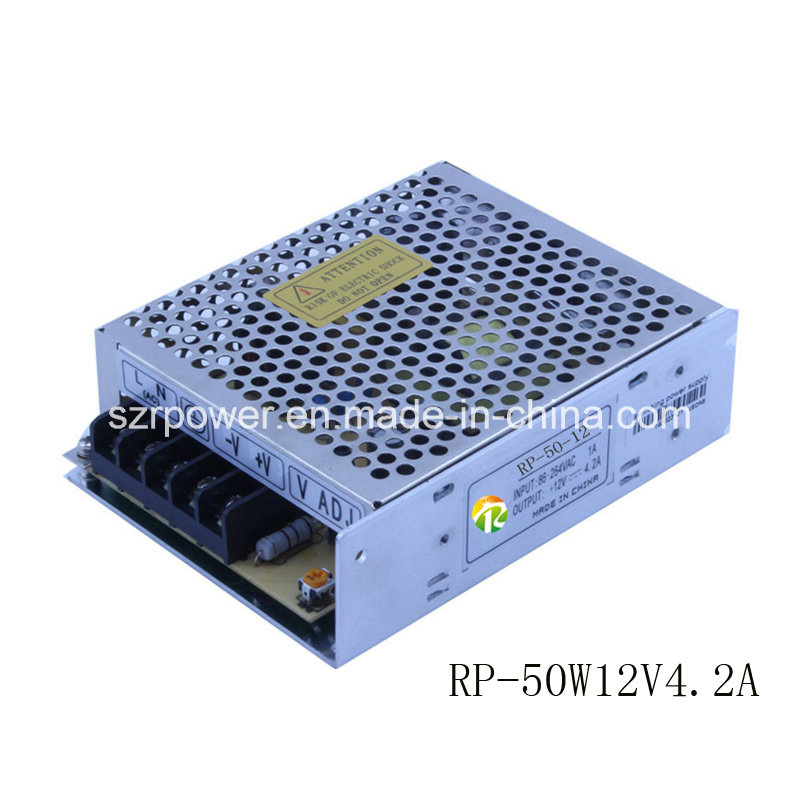

Prod Model:	RP-50W12V4.2A
Efficiency:	90%
Output Current:	4.2A
Output Voltage:	DC 12V
Protection:	Short Circuit/Over Load/Over Voltage
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Brand:	OEM

Product Description

1. Product Description

MODEL		RP-50-12
OUTPUT	DC VOLTAGE	12V
	RATED CURRENT	4.2A
	CURRENT RANGE	0~4.2A
	RATED POWER	50W
	RIPPLE & NOISE(max).Note.2	120mVp-p
	VOLTAGE ADJ.RANGE	13~17V
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION Note.4	±0.5%
	LOAD REGULATION Note.5	±0.5%
	SETUP,RISE TIME	500ms,20ms/230VAC 500ms,20ms/115VAC at full load
	HOLD UP TIME(Typ.)	30ms/230VAC 25ms/115VAC at full load
INPUT	VOLTAGE RANGE	85~364VAC OR 248~373VDC
	FREQUENCY RANGE	47~63HZ
	EFFICIENCY(Typ.)	86%
	AC CURRENT(Typ.)	2A/115VAC 1A/230VAC
	INRUSH CURRENT(Typ.)	COLD START 36A
	LEAKAGE CURENT	<2mA/240VAC
PROTECTION	OVERLOAD	110~150% rated output power
	OVERLOAD	Protection type: C an be con tinued, recovers automatically after fault condition is removed
	OVER VOLTAGE	27.6~32.4V
	OVER VOLTAGE	Protection type : Shut down, recovers automatically after temperature goes down

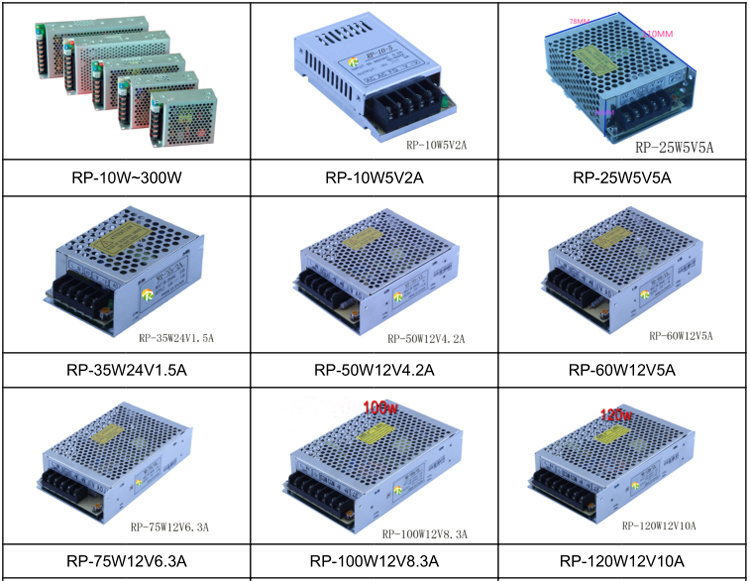

2. More products for your reference:

4. Certificate

5. About Us:

6. FAQ

Shenzhen Rainbow Power Technology Co., Ltd is a professional manufacturer of Switching Power Supply for LED lighting projects, mechanical equipment, industrial automation, electronic technology, telecommunication, medical appliances and instrument meters etc.

Our main products: LED Driver, LED Power Supply, Switching Power Supply, LED Transformer, AC/DC Adapter etc.

We export to more than 30 countries, such as USA, Canada, Brazil, Columbia, Ecuador, Germany, France, Australia, Malaysia, HongKong, India, Egypt, Pakistan, Greece, UK and so on.

In order to ensure the stability and reliability of our products, Rainbow Power is equipped with many testing equipment for safety. Temperature, magnetic and EMI testing, automatic SMT machine and automatic solder machine etc., We have a team with well-experienced R & D Engineers then we are ready to design and produce your power supply.

Our mission is to provide Excellent quality, competitive price and more value-added service to our clients, all of these makes our core competitiveness get a far-reaching develop and prominent advance.

If you are interested in any of our products, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world.
