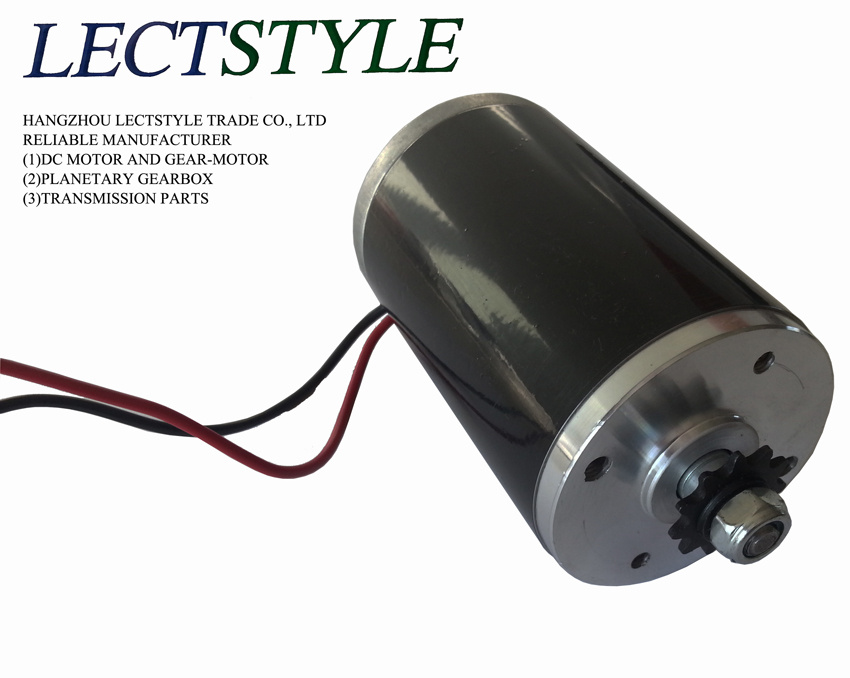

50W 24V 3200rpm Permanent Magnetic DC Motor

Name: 50W 24V 3200rpm Permanent Magnetic DC Motor
Brand: all-electronics-online.com
SKU: 780823355
Availability: InStock
Rating: 4.4 (145 reviews)

Price:	US $ 36.20-45.80/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZY6310
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12 /24V
Rated Power:	50W, 100W, 120W
Motor Material:	Aluminum Alloy
No Lad Speed:	3500rpm
Motor Diameter:	63.50mm
Motor Length:	101.60mm
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Type:	Zy
Brand:	Lectstyle

Product Description

Permanent Magnetic DC motor, Gear Motor and DC generators which has such features: low noise, low vibration and long-using time and so on, they are mainly used for electric hand-pushing golf trolley, jack, Recreational Vehicle pillar lift, folding bicycle, elderly scooter, Grass Trimmer, cleaning machine, remote control golf trolley and other electric equipment. The simple design and reliability of a DC motor or a generator makes it a good choice for many different uses, as well as a fascinating way to study the effects of magnetic fields.
Our business range is supplied to these products as below:
1.DC Motor, Gear-motor, linear actuator and planetary gearbox etc, these are fabricated from our motor factory.
2. Roller chain, conveyor chain, timing chain, silent chain, sprockets etc, these are supplied from our chain drive factory.

ZY6310	No load		Loading
Model	Current(A)	Speed (rpm)	Torque (N.m)	Speed (rpm)	Power (W)	Current(A)
80W12V	0.8	3200	0.31	2500	80	10.3
80W24V	0.6	3200	0.31	2500	80	5.1
120W12V	1.2	3500	0.46	2500	120	15.4
120W24V	1	3500	0.46	2500	120	7.1

HANGZHOU LECTSTYLE TRADE CO., LTD is responsible for exporting the above products, and we also import some important products from oversea markets.
Our company has got the right of import and export from the Government department.
It is necessary to get your specific requirement when contacting us, for example of motor, voltage, power, speed, output torque, connecting type and size of shaft, outside structure drawing or relevant pictures etc. And then we will give the accurate offers.
Therefore, hope to get your feedback soon.

About us

Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.

Our main supplied products as below:

1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer

2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).

Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.

Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.

In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
