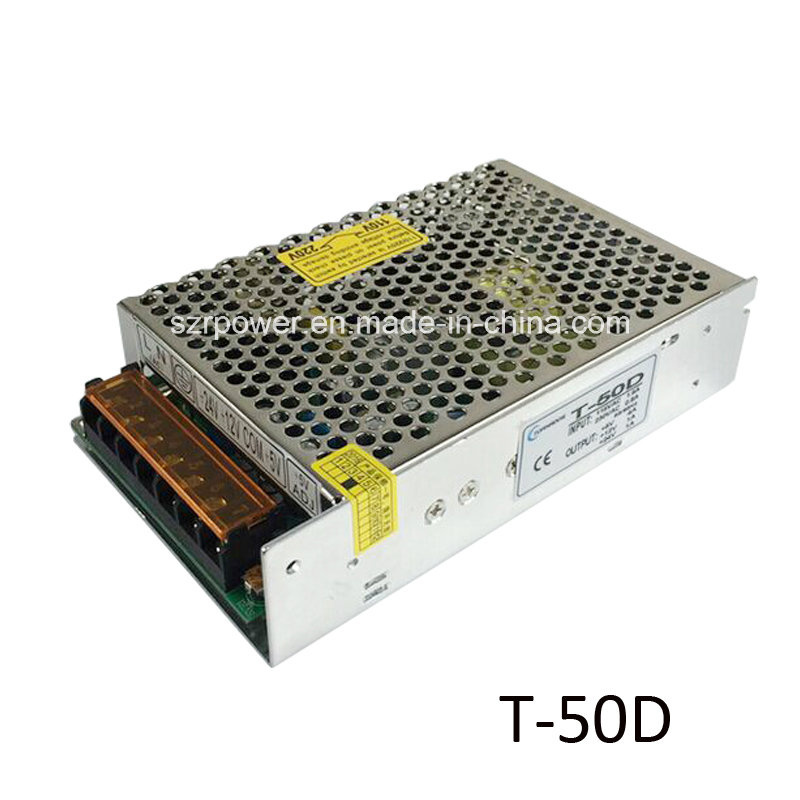

50W 5V 12V 24V Triple Output LED Switching Power Supply

Name: 50W 5V 12V 24V Triple Output LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 730845002
Availability: InStock
Rating: 4.8 (95 reviews)

Price:	US $ 8.2-8.8/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T-50D
Efficiency:	90%
Output Current:	4A 1A 1A
Output Voltage:	5V 12V 24V
Protection:	Short Circuit/Over Load/Over Voltage
Input:	90V-130VAC
Sample Day:	a Week
Leadtime:	25 Days
Output Type:	Triple
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Brand:	OEM

Product Description

1. Product Description

Item	T-50C			T-50D
	CH1	CH2	CH3	CH1	CH2	CH3
Output voltage	5V	15V	-15V	5V	12V	24V
Output voltage error(Note:2)	±2%	±5%	±5%	±2%	±5%	±5%
Rated output current	4A	1A	1A	4A	1A	1A
Output current rage	1-4A	0.2-1A	0.2-1A	1-4A	0.2-1A	0.2-1A
Wave and noise(Note:3)	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±0.5%	±0.5%	±1%	±0.5%
Load stability(Note:5)	±1%	±4%	±1%	±1%	±4%	±1%
Output power	50W			56W
Efficiency	72%			72%
Range for DC voltage	CH1;+10,-5%			CH1;+10,-5%

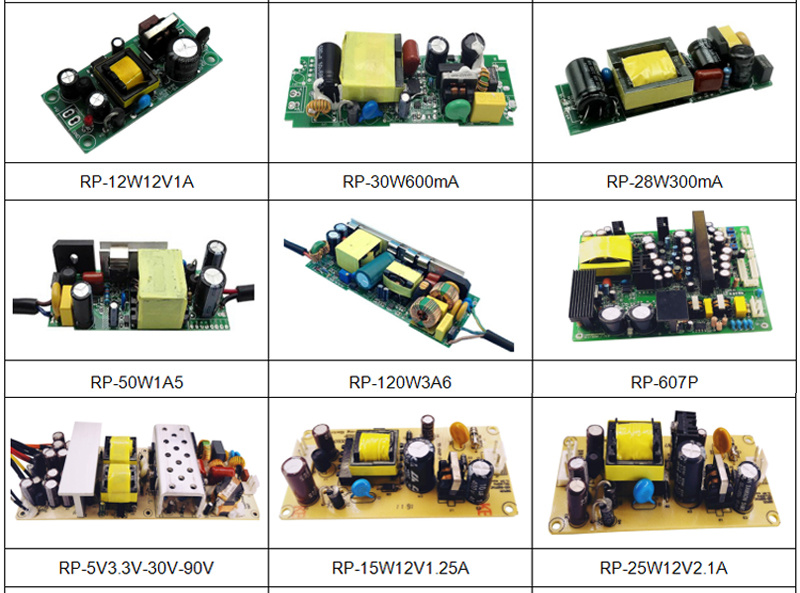

2. More products for your reference:

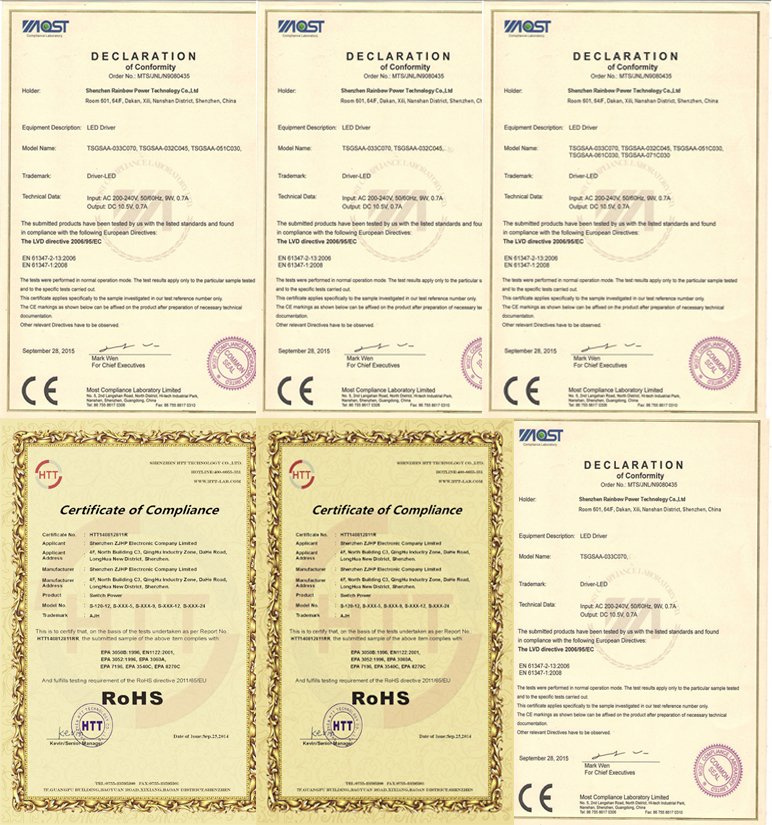

4. Certificate

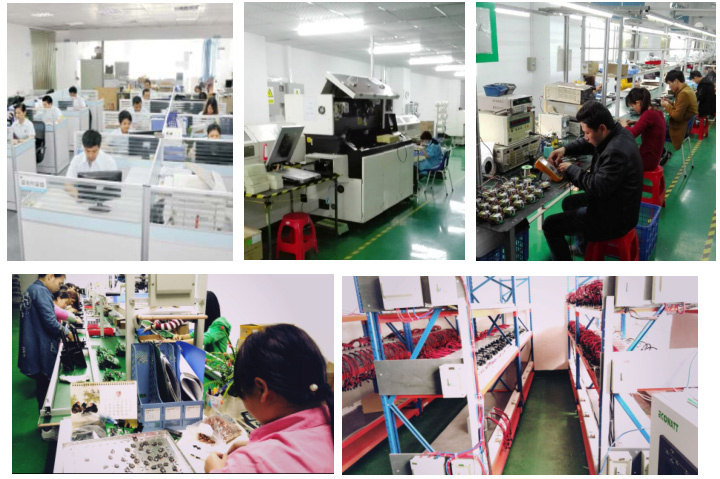

5. About Us:

6. FAQ

Shenzhen Rainbow Power Technology Co., Ltd is a professional manufacturer of Switching Power Supply for LED lighting projects, mechanical equipment, industrial automation, electronic technology, telecommunication, medical appliances and instrument meters etc.

Our main products: LED Driver, LED Power Supply, Switching Power Supply, LED Transformer, AC/DC Adapter etc.

We export to more than 30 countries, such as USA, Canada, Brazil, Columbia, Ecuador, Germany, France, Australia, Malaysia, HongKong, India, Egypt, Pakistan, Greece, UK and so on.

In order to ensure the stability and reliability of our products, Rainbow Power is equipped with many testing equipment for safety. Temperature, magnetic and EMI testing, automatic SMT machine and automatic solder machine etc., We have a team with well-experienced R & D Engineers then we are ready to design and produce your power supply.

Our mission is to provide Excellent quality, competitive price and more value-added service to our clients, all of these makes our core competitiveness get a far-reaching develop and prominent advance.

If you are interested in any of our products, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world.
