50W 5V Indoor Constant Voltage LED Driver with CE

Name: 50W 5V Indoor Constant Voltage LED Driver with CE
Brand: all-electronics-online.com
SKU: 748256555
Availability: InStock
Rating: 4.7 (67 reviews)

Price:	US $ 8.57/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-5E50B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V
Output Voltage:	5V
Output Current:	10A
Output Power:	50W
Efficiency:	80%
Dimensions(LWH):	1107735 mm
IP Rating:	IP 20
Weight(Kg):	0.2000
Cooling:	Free Air Convection
Material:	Mesh Metal Case
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

50W 5V indoor constant voltage LED Driver with CE

Features of LED Driver:
1. Mesh case (or electric fan) for ventilation, efficient heat dissipation.
2. Designed for indoor signage, decoration or lighting applications.
3. Constant voltage output.
4. 100% burn-in test.

Application of LED Driver:
LED module, strip, flex ribbon, bar light, light bar, light box, wall washer, panel light, LED-neon tube, pixel lamp, perforating lamp, etc...

Product Description of LED Driver:
This Indoor use only unit has a metal case .
The top surface and one side wall are perforated giving excellent heat dissipation characteristics via convection cooling.
The open access electrical connection block enhances ease of installation.
Compact size and light weight, enabling use in a variety of indoor installation locations.

Data sheet of LED Driver:

Model no.	ELDV-12E50B
Model series	ELDV
Input voltage	220-240VAC 50Hz
Power	50W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	80%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	4.2 A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60ºC,100%Pout@0~45ºC, 60%@60ºC, 80%@-10ºC
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1107735 mm
Weight(kg)	0.2000

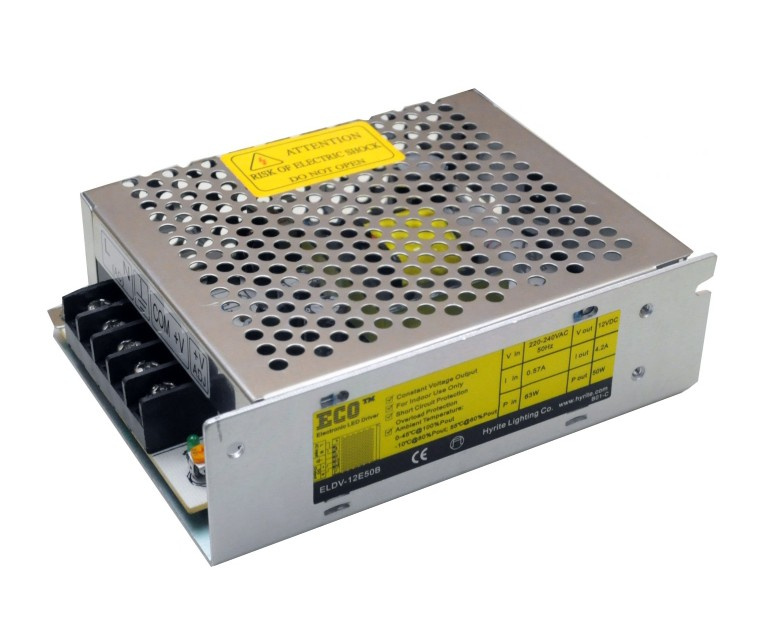

More pictures of LED Driver:

About us- Factory & Exhibition Performance

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
