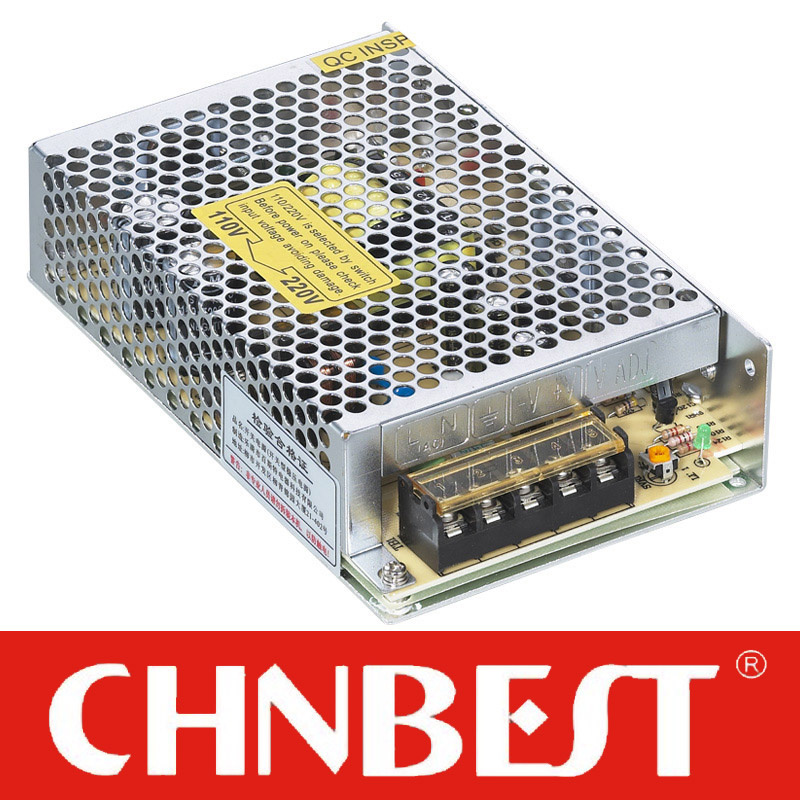

50W 5V Switching Power Supply with CE and RoHS (S-50-5)

50W 5V Switching Power Supply with CE and RoHS (S-50-5)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: S-50-5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell Material: Aluminum
Color: Silver
Size: 159*97*38
Output Type: Single
Output Power: 1 - 50W
Input Voltage: Full Range
Voltage Regulating Mode: Frequency Modulation Type
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Warranty: >2 Years
Power Supplying System: Terminal Power Distribution Equipment
Certification: ISO
Brand: Chnbest

Product Description

100% full load burn-in test
Universal AC input: 110/220± 20%, selectable bu switch
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Approvals: CE     RoHS
Size: 159*97*38mm
2 years warranty
Specification                                            S-50-5
DC output                                    5V   10A
Wave and noise                                50mVp-p
Inlet stability                                    ±0.5%
Load stability                                     ±1%
Efficiency                                      71%
Adjustable range for DC voltage                                    ±10%
AC input voltage range 85-132VAC/170-264VAC  47-63Hz
AC Inrush currentCold-start current  25A/115V  50A/230V
OverLoad protection         105%-150% hiccup mode,auto-recovery
Over-Voltage protection
Setup,rise,hold up time200ms,100ms,20ms at full load and 230VAC
Withstand voltage  I/P-O/P:3Kv    I/P-FG:1.5KV   O/P-FG:0.5KV   1minute
Isolation resistanc I/P-O/P   IP/FG   OP-FG:500VDC/100MΩ
Working temperature-10ºC_+50ºC
Safety StandardsDesign refer to GB4943,UL60950,EN60950
EMC Standards Design refer to GB9254,EN55022 Class B
Weight0.5Kg

Zhejiang Best Electric Co., Ltd. Founded in 2000. Our factory is located in Wenzhou Zhejiang.

With over 16 years of experience in design and manufacture of switching power supplies, we have established long-term relationship with hundreds of big customers in the field of industrial control, telecom, LED, display & lighting of buildings, elevator, laser equipment, TV & broadcasting, computer system, medical equipment, safety control, automotive system, banking equipment

The products include Single output series, Waterproof Series, Rainproof Series, DIN-Rail Series, With PFC Function Series, With Battery Charger Series, DC to DC series, Open Frame Series, Dual Output Series, Triple Output series, Quad Output Series, and custom-design switching power supplies, over 5, 000 models showing great flexibility.

The company is certified by SGS. Over 100 models power supply have acquired CE, RoHS approval, and more are underway. We have various advanced equipment, such as wave soldering and reflow soldering machine, AI component insertion machine, auto chip mounter, ATE, ICT, RoHS testing, environmental testing, EMC testing system, burn-in test room, data acquisition Only top brand international components are adopted for the key parts to ensure long lifetime and high reliability. Each unit is given full load burn-in test. With high quality and market reputation,

We were honored to become main SMPS supplier for Beijing Olympic Games, and Shanghai Expo 2010.

We are confident to offer you total power solutions and become our trustworthy power partner.
