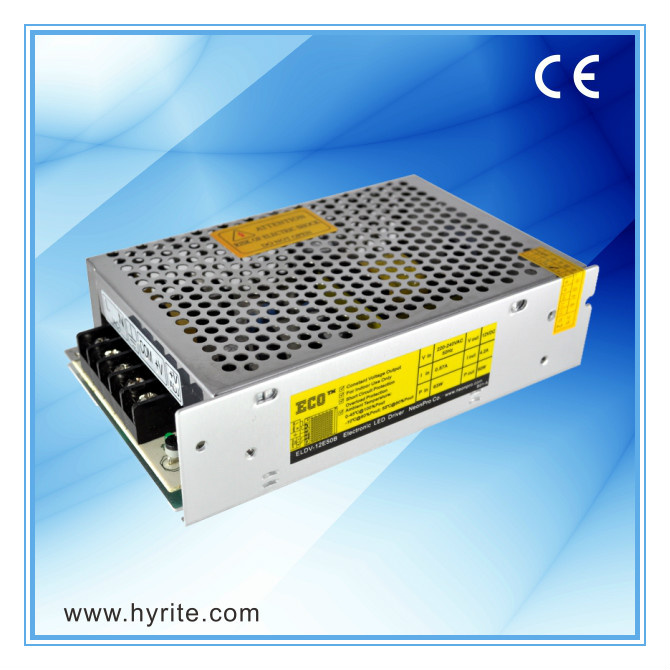

50W Constant Voltage Switching Power Supply for LED Strip

Name: 50W Constant Voltage Switching Power Supply for LED Strip
Brand: all-electronics-online.com
SKU: 772911055
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	US $ 5.4/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E50B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	50W Strip Light LED Switch Power Supply
Input Voltage:	220-240
Output Voltage:	12V
Output Current:	10A
Size:	1299842mm
Power Factor:	Low
Efficiency:	85 %
Overload Protection:	110-150% Hiccup Mode, Auto-Recovery
Installation:	Indoor
Cooling:	Free Air Convection
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Eco

Product Description

1.Feature of 50W strip light led switch power supply :
1. Slim body, iron and aluminum housing.
2. High efficiency rate > 85% .
3.Guarantee: 2 years .

2.Application of 50W strip light led switch power supply :
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

3.Specification of 50W strip light led switch power supply :

Model no.Input voltageMax. powerOutput typeDimmingBuilt-in active PFCPower factorEfficiencyOutput voltageOutput currentOverload protectionOver voltage protectionWithstand voltageOperating temperatureInstallationIP ratingCoolingConnection input/outputDimensions(L*W*H)Weight(kg)

ELDV-12E50B

220-240VAC 50Hz

50W max

Constant voltage

0.65

85%

12VDC ± 5%

4.17A max

110-150% hiccup mode, auto-recovery

115-150% rated output voltage

I/P~O/P:1.5kVAC, 1 minute

-10~+60,100%Pout@0~45, 60%@60 , 80%@-10

Indoor

IP 20

Free air convection

Terminal

129*98*40 mm

0.2000

FAQ :

1.Shipment:
Ocean or air transportation, international express
2.Normal lead time:
1 day for in stock and 10-15 days for out of stock product
3.Price term:
FOB, C&F, EXW
30% before production, 70% before shipment.
4.Supply ability:
50000 units/month
5.MOQ:
10 units(but sample can be 1)
6. Discounts :
We offer discount for big quantity
7.OEM and ODM service.

11.Contact :
Sales Department :May
Hyrite Lighting Co.
Tel:+86(757)81200188 (Ext.315); Fax:+86(757)81200369
H.P.0086-18520902601

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
