50W Dual Output Switching Power Supply (HID-50)

Prod Model:	HID-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Dual
Output Power:	1 - 50W
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	1 Year
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Energy Transmission:	Dual Output
Input Voltage:	AC85~264
Brand:	Dhecn

Product Description

Features
· High efficiency, high reliability, low cost
· Universal AC input / full range
· 100% full load burn-in test
· Protections: Short circuit/ Over load / Over voltage
· Cooling by free air convection
· Fixed switching frequency at 50KHz
· 1 year warranty

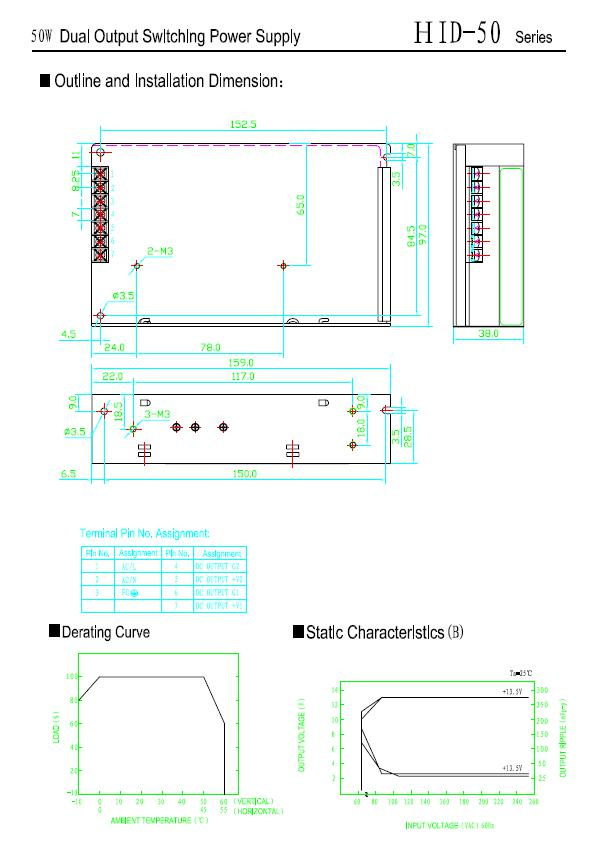

· Dimensions: 159*97*38mm (L*W*H)
· Isolated ouput & GND for CH1, CH2

Specification

1)INPUT
· Voltage Range: 85~264VAC 47~63 Hz; Selected by 120~370VDC
· AC Current: 1A/115 V0.6A/ 230 V
· Efficiency: 66%(HID-50A); 70%(HID-50B); 72%(HID-50C); 68%(HID-50D);
· Inrush Current: Cold start 18A/115V 36A/230V º C
· Leakage Current: <3.5 mA/240VAC

2)PROTECTION
· Over Load: 105%~150% Protection type: Hiccup mode, recovers automatically after fault condition is removed.
· Over Voltage: 125%~150% Protection type: Hiccup mode, recovers automatically after fault condition is removed.

3)ENVIRONMENT
· Working Temp., Humidity -10º C~+60º C; 20%~90 %RH
· Storage Temp., Humidity -20º C~+85º C; 10%~95 %RH
· Vibration 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes

4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to UL1012
· EMC Standard: Design refer to FCC Part15

5)OUTPUT
· Model HID-50A HID-50B HID-50C HID-50D
CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2
· DC Voltage 5V 5V 13.5V 13.5V 27V 27V 5V 13.5V
· Voltage Tolerance ± 1% ± 2% ± 1% ± 2% ± 1% ± 2% ± 1% ± 2%
· Rated Current 6A 2A 1.8A 1.8A 0.9A 0.9A 5A 1.7A
· Current Range 0.5-6A 0-2A 0.3-2A 0-2A 0.18-1A 0-1A 1-5A 0-2A
· Rated Power 40W 40W 48.6W 48.6W 48.6W 48.6W 48W 48W
· Ripple & Noise 50 mVp-p 100 mVp-p 100 mVp-p 150 mVp-p 100mVp-p 150 mVp-p 50 mVp-p 150mVp-p
· DC Adjustment Range -5%, +10%, -5%, +10%, ± 11%, ± 11%, ± 11%, ± 11%, -5%, +10%, -5%, +10%
· Setup, Rise, Hold Time 1600ms, 50ms, 100msat full load
