50W Free Sample All-in-One Integrated Solar LED Street Light
| Price: |
US $ 310-330/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
IN-250C |
| Sample Supply: |
Available |
| Sample Delivery Time: |
7-10 Days |
| Working Temperature: |
-30deg~+60deg |
| Product Warranty: |
5 Years |
| Solar Panel: |
Sunpower Mono Silicon 18V 70W |
| LED Brand: |
High Brightness Bridgelux 45ml |
| Charge Time: |
6-7 Hrs |
| Discharge Time: |
5-7 Rainy Days |
| Sensor: |
Infrared Motion Sensor&Light Sensor |
| Mounting Height: |
7-8m |
| Light Source: |
LED Lamp |
| Lamp Body Material: |
Aluminum Alloy |
| Light Type: |
Solar |
| Usage: |
Street |
| IP Rating: |
IP65 |
| Certification: |
RoHS |
| With Light Source: |
With Light Source |
| Color Temperature: |
6500-7000K(Cw) |
| Power: |
50W |
| Technics: |
Anodic Oxidation Treatment |
| Illumination Time: |
5-7 Rainy Days |
| Cell Type: |
Lithium Battery 35ah |
| Charging Time (',H): |
6-7hrs |
| Voltage: |
DC12V |
Product Description
50W Free Sample All-in-One Integrated Solar LED Street Light
Our company
We have engaged in the green energy saving products since 2009, we can provide different solar Led lighting products and solutions according to customers'custom-tailor design, our experienced R&D team will make your idea come true, welcome to consult with us for closer business cooperation.
Our experienced engineering team is committed to providing our customers with high quality solar lighting systems and excellent customer service. Our facilities are ISO 9001 certified, and our products comply with CE and RoHS criteria.
Benefits of all in one solar street light
1. No line voltage, trenching, or metering
2. Battery backup for cloudy or rainy days
3. Easy to install, only need 2 people
4. No maintenance except for the battery
5. No cost of transformers or meters to be added for electric service
6. No monthly electric bills
7. Controlled charging to prolong battery service life
8. Long-life PV modules with more than 25 years of power generation capacity
9. Environment friendly- 100% powered by the sun, solar panels reduce fossil fuel consumption, eliminating pollution
10. Self-contained solution- Light on/off controlled by automatic daylight sensing
11. Better and long life light source- LED lights feature white light without flickering and instant on
12. Safe 12V circuit, no risk of electric shock
Specification | Item: IN-250C |
| Solar panel type/power | Maximum power | 18V 70W Monocrystalline silicon solar panel (Germany Solarworld) |
| Lifespan | ≥25 years |
| Battery/ Voltage/ Capacity | Battery type | Lithium battery 12V 35AH |
| Lifespan | 5 years |
| LED light ( with PIR sensor ) | Maximum power | 12V 50W |
| LED brand | Bridgelux |
| Luminous flux | 5100-5200 LM |
| Lifespan | 50000 hours |
| Beam angle | 120° |
| Working temperature | Unit(ºC) | -30ºC ~ +60ºC |
| Color temperature | Unit(k) | 6500-7000K |
| Mounting height | Unit(m) | 7-8M |
| Lamp material | Aluminum alloy |
| Charge time | 6-7 hours bright sunlight |
| Lighting time | 4 rainy days |
| Standard | CE / ROHS / IP65/ ISO |
| Warranty | 5 years |
| Packing information | Light size | 1200*325*45 mm |
| Net weight | 18kg |
| Packing box | Neutral packing |
| Carton size | 1320*400*200 mm |
| Carton | 1 set/ CTN |
| Gross weight | 19kg |
| Container loading instruction | 20' GP | 250pcs |
| 40' GP | 530pcs |
Working mode of all in one solar street light

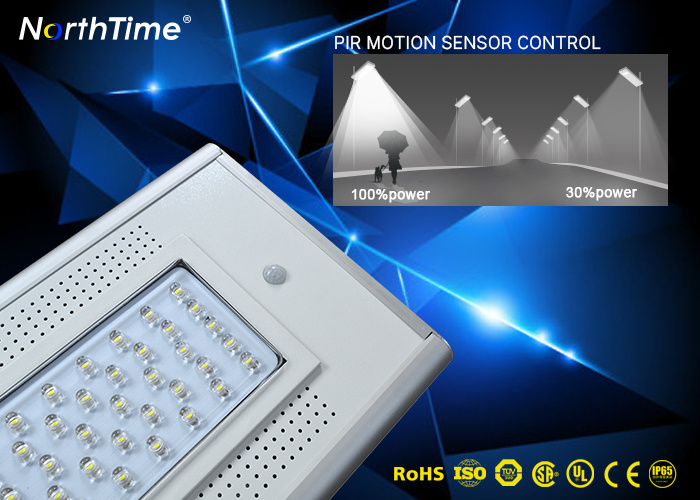

(1) Motion Sensor Mode: Light on at dusk, light off at dawn auto. PIR motion sensor detection. Full power lighting when a human walk in the sensors range.30% power lighting when a human walk out.
(2) Dimming Mode: Light on at dusk, light off at dawn auto. Programmed lighting way.
(3) Time Control Mode: Light on/off at anytime.
(4) Mobile phone APP control Mode: through bluetooth connect, which can set 7-10 raining days and detection, maintenance etc additional functions.
Application of all in one solar street light
1) Courtyard / Garden / Park / Street / Roadway
2) Pathway / Parking Lot / Private Road / Sidewalk / Public Square
3) Plaza / Campus / Airfield / Farm & Ranch / Perimeter Security , Front yard , Back yard
4) Wildlife Area / Remote Area / Camping ,and much more.
Installation and Usage
(1) Just place the all-in-one light on the mounting section with bracket included, fix with the special screws and make sure it is installed steadily.
(2) The mounting height and spacing are recommended according to our installation manual, make sure the solar panel faces south while it is installed. For better illumination scale, adjust the angel between the lamp head and horizontal.
(3) Just turn on the switch and the light will work automatically without any adjustment.
FAQ
1. Q: What to do with the rainy day or cloudy day?
A: The outdoor solar light is waterproof. You don't need to worry about it. After fully charged, the capacity of battery can keep the LED working in several rainy/ cloudy days.
2. Q: If you found the light brightness is down or total off, how to handle?
A: It prove the power of solar light battery is not enough to support normal lighting, so you need have 2-3 days strong sunlight charged, especially in winter season,the sunlight intensity is much below the standard sunlight (1000kw/m2), it may need more longer time to charge.
3. Q: How about works on seafront?
A: It's no problem used for seafront, as the shell material is aluminum alloy, all inside components are anti-corrosion. The waterproof is IP65.
