| Prod Model: |
HD-250C-2 |
| Solar Panel: |
Mono Solar Panel 18V 70W |
| LED Brand: |
Bridgelux |
| LED Type: |
45mil |
| Luminous Flux: |
5800-6000 Lm |
| Lithium Battery: |
12V 35ah |
| Motion Sensor: |
PIR |
| Working Temp.: |
-30~60 Degree |
| Mounting Height: |
7~8m |
| Housing Color: |
Silver |
| Warranty: |
2 Years |
| Light Source: |
LED Lamp |
| Lamp Body Material: |
Aluminum |
| Light Type: |
Solar |
| Color Temperature: |
Pure Wihte |
| Technics: |
Painted Matte |
| Illumination Time: |
10h |
| Cell Type: |
Ni-MH Battery |
| Usage: |
Street |
| IP Rating: |
IP65 |
| Certification: |
RoHS |
| Voltage: |
12/24V |
| With Light Source: |
With Light Source |
| Power: |
50W |
| Charging Time (',H): |
7 |
Product Description

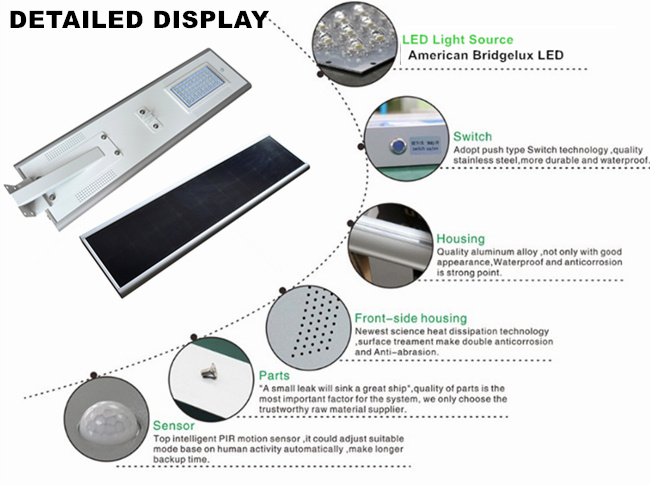

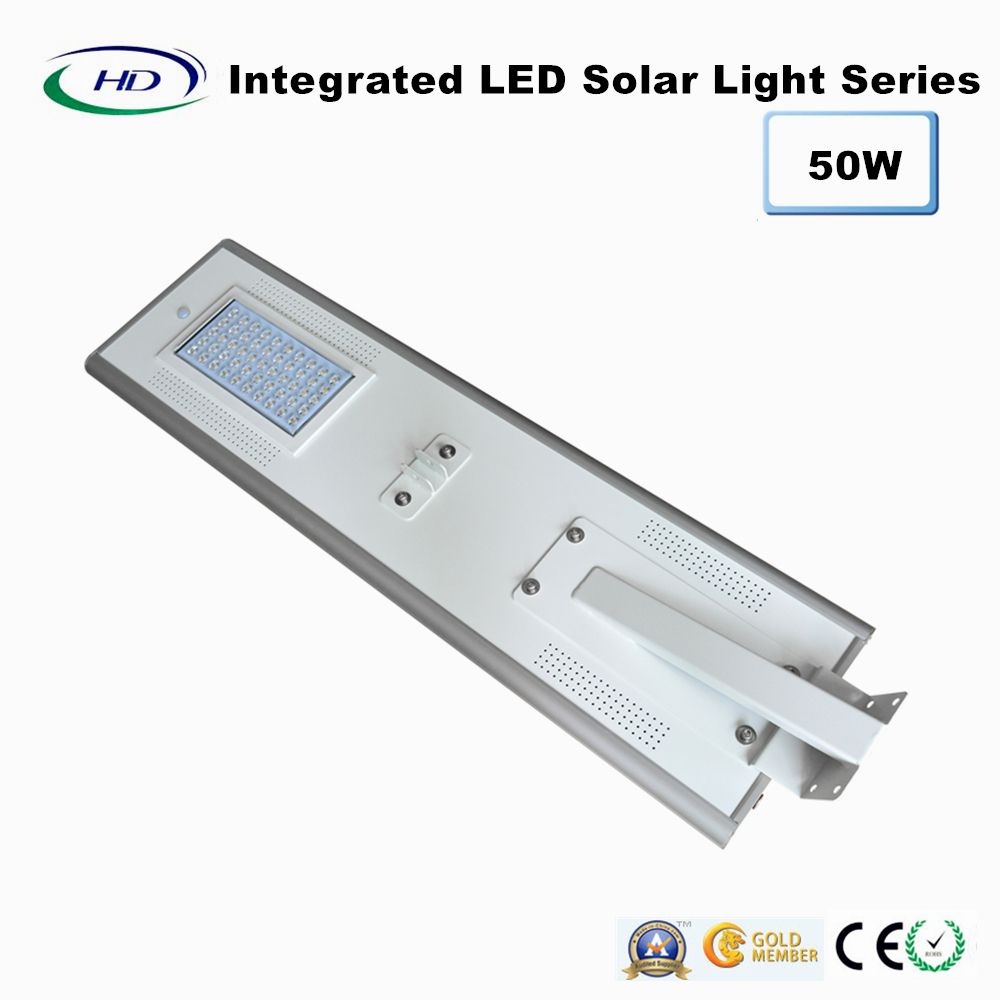

50W Integrated LED Solar Street Light with PIR Sensor
Specification: Solar Panel | 18V 70W USA imported Sunpower solar |
LED Brand | Bridgelux 50W 5800-6000LM |
Material | Aluminum + Steel glass |
Lithium Battery | 12V 35Ah |
Mounting Height | 7~8m |
Discharge Time | 5-7 rainy days |
Working Temperature | -30ºC~+60ºC |
Charge Time | 7 Hours with good sunshine |
Lighting mode | 100% bright lighting infrared motion sensor + 60% lighting before midnight and 30% lighting till dawn (energy saving mode to prolong backup rainy days) |
Features:
- Integrated design, no cable, easy to install, low transportation costs and many kinds of installation, such as iron posts, wood, bamboo, wall, etc.
- The perfect combination of solar power supply and LED lighting, save energy and protect the earth's resources.
- High capacity and long-life lithium batteries, the theoretical life of 5 years, good at high temperature properties, and ensure the entire life of the product.
- IP65, safe and reliable.
- Quality Aluminum alloy main structure with excellent anti-rust and ant-corrosion function.
- Intelligent time controller could adjust power base on the frequency of human activity, save energy effectively and improve the availability of the products
Advantages:
- Modularity design: easy assembly and maintenance.
- Lighting service all year around.
- Working temperature from -30°C to 60°C, resist bad weather condition.
- Easy for connection between the light and the solar panel by MC4 plug.
Packing details: Carton size | 1320*400*200mm | N.W/G.W | 18.0kgs/19.0kgs |
Qty | 1set/carton | Container load | 250sets/20GP, 520sets/40GP |

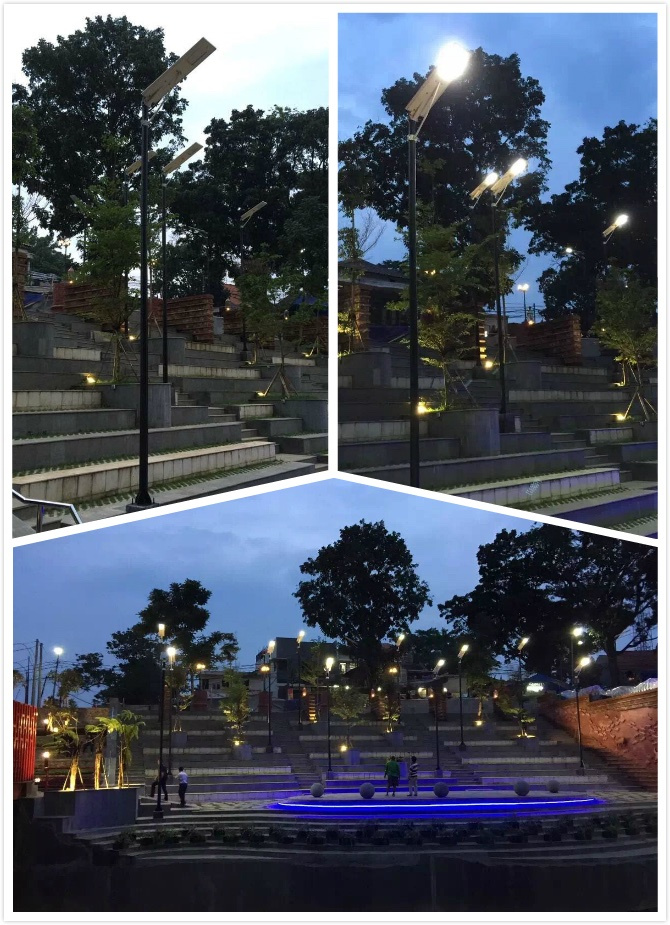

Application & Project show:
1.Traffic lightings: airport, parking lot, expressway, country road, urban street, ramp, bridge, viaduct, etc2.Residential & Commercial lightings: street, square, park, garden, other area lightings, etc 3.Public lightings: Hospital parking, School playground, etc4.Industrial & Security lightings.
Installation:
1.Select the best day-lighting location to set up the pole. Pole height 5 ~ 9 m is appropriate, diameter 60 ~ 100mm, wall thickness more than 2.0mm iron or steel rod.
2.Open the packaging and check if components are completed. The light, special tools and metal fittings included.
3.Switch up the button before installation.
4.Find out the related accessories and assembly well.
5.Put solar street light into the pole and use special tool to tight screws up, ensure the system is stable.
Terms & Conditions
Packaging:
1.Standard packing with box & carton up to export standard or at customer's requirement, inner put some bubble film to protect the product during the transportation.
2.Poly bag and carton can be customized according to customer's design and logo when purchasing reaches a certain quantity.Delivery: International Express delivery for samples, Sea & Air cargo transportation for bulk orders.
Lead time: Samples 5 working days after receive the payment; bulk orders 15-20 days after receive the deposit.
Price Terms: EXW, FOB, CIF, CFR, etc
Payment Terms:
For bulk orders: TT 30% prepayment for PO confirmation, balance to be paid before shipment. L/C also accepted.
About the product working principles & performance:
Q: How does solar led light works?
A: Solar led lights use solar panel with photovoltaic effect principle to receive solar radiation during the day, then converted into electrical energy, after that store in batteries by charge-discharge controller, while at night when the illumination gradually reduced to about 10LUX, the open circuit voltage of solar panels reaches the set value, after the discharge controller detects the voltage value then action, the battery discharge current to the lamp, solar light; when the battery is discharged to the set value, battery stops discharge, the solar light turned off. Or the next day when the illumination is higher than about 10LUX, charge and discharge controller action, the battery discharge suspended, and solar panel starts battery charging.
Q: What is the conversion rate of solar panels?
A: Polycrystalline is about 12-15%; mono crystalline is about 18-20%; and the Sun power is about 22-24%.
Q: How about the luminous decay?
A: The standard is: no luminous decay in 1000 hours, 1% for 3000 hours, 3% for 10000 hours and no more than 30% for 50000 hours.
