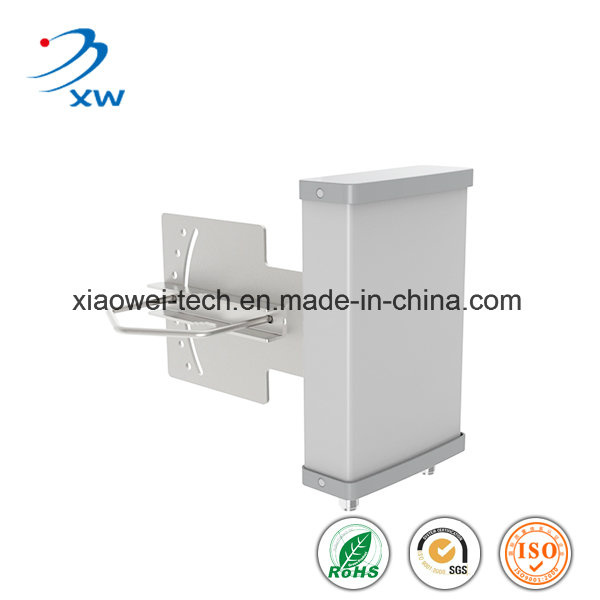

5150~5850MHz 11dBi Communication Wireless Base Station Antenna

Prod Model:	5150~5850MHZ
Color:	White
Gain:	11dBi
Polarization:	Vertical
Radome Material:	ABS
Usage:	Base Station
Material:	Cu
Directionality:	Directional Antenna
VSWR:	1.5~2
Operating Wavelength:	Customization

Product Description


                          5150~5850MHZ 11dBi  communication wireless base station antenna

Company profile

Shang hai Xiaowei Equipment Co., LTD (Xiaowei) was established in 2011, Shanghai, which is a company  covering cable and accessories manufacturing, real estate, engineering  service and investment &trading.
     As a National wide wire &cable supplier Xiaowei continually provide different quality products in the telecom communication fields, the main product is 7/8 feeder cable, 1/2 feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connector feeder connector, feeder grouding kit, grounding bar, low loss 7/8 jumper cable and 1/2 jumper cable, indoor optic jumper cable  and outdoor fiber cable, splitter and coupler, Dual and trible band antanna, GPS antenna and GPS cable all the accessories in the telecom field.  Xiaowei also supply VHF vabor phone, WLAN system.
      Xiaowei have advance manufacturing product line, stanard factory, we have long co-operation with the Chinese main telecom operators such as China Mobile, China Unicom, China Telecom. And the electric power operator such as National Electric network company, Southern Electric power company. Xiaowei provides total solution for telecommunication, power grid, railway, engineering, green energy, automobile industries, etc.
         Xiaowei particularly focused on the QoS and creating value for its clients and stakeholders, continuously invest in R&D, marketing & service networks, meeting and exceeding the precise needs of our customers national wide.  With the develop of the business, Xiaowei extend  the service to the international trading.
Specification

Frequency Range	5725-5800MHz
VSWR	<2.0
Input Impedance	50Ω
Gain	>11dBi
Polarization	vertical
Horizontal Beamwidth (3dB)	60°
Vertical Beamwidth (3dB)	30°
Electrical Downtilt	0°
Front to Back Ratio	≥20dB
Isolation Between Pols	≥30dB
Max, power	10W
Connector Type	N FEMALE
Dimnsion		105mm×85mm×35mm
Weight		0.23Kg
Rated Wind Velocity		210km/h
Diameter of Mounting pole		Φ30~Φ50mm
Radome material		UPVC
Working Temperature		-40~+60ºC

1. Installation instruction:
In accordance with the installation sketch, drill a hole of Φ35mm in the ceiling.
Screw the fixing nut to fasten the antenna on the ceiling.  The ceiling's thickness is at most 20mm.

2. Storage and transportation:
A. The antenna must be stored in room temperature and dry environment;B,Handle the antenna with care

3. Attention: The antenna mustn't be near to fire.






For more information, please feel free to contact us!!
