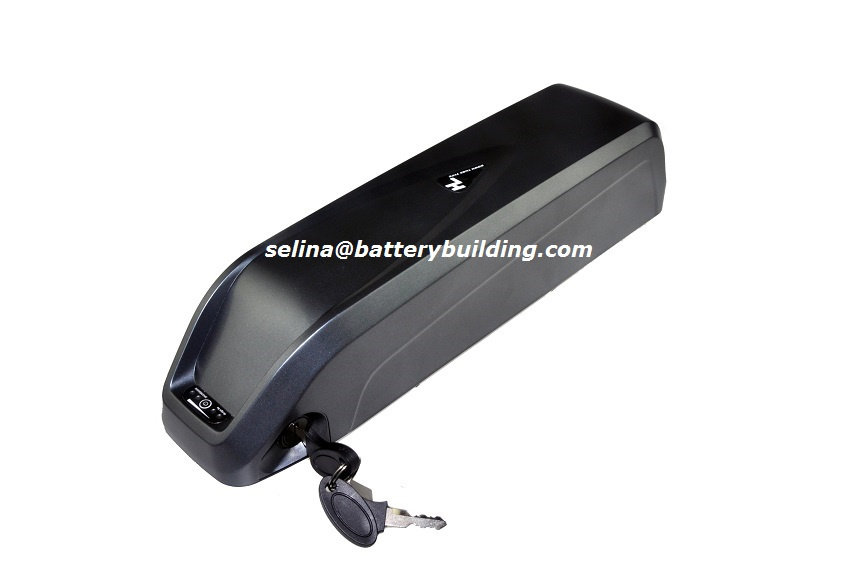

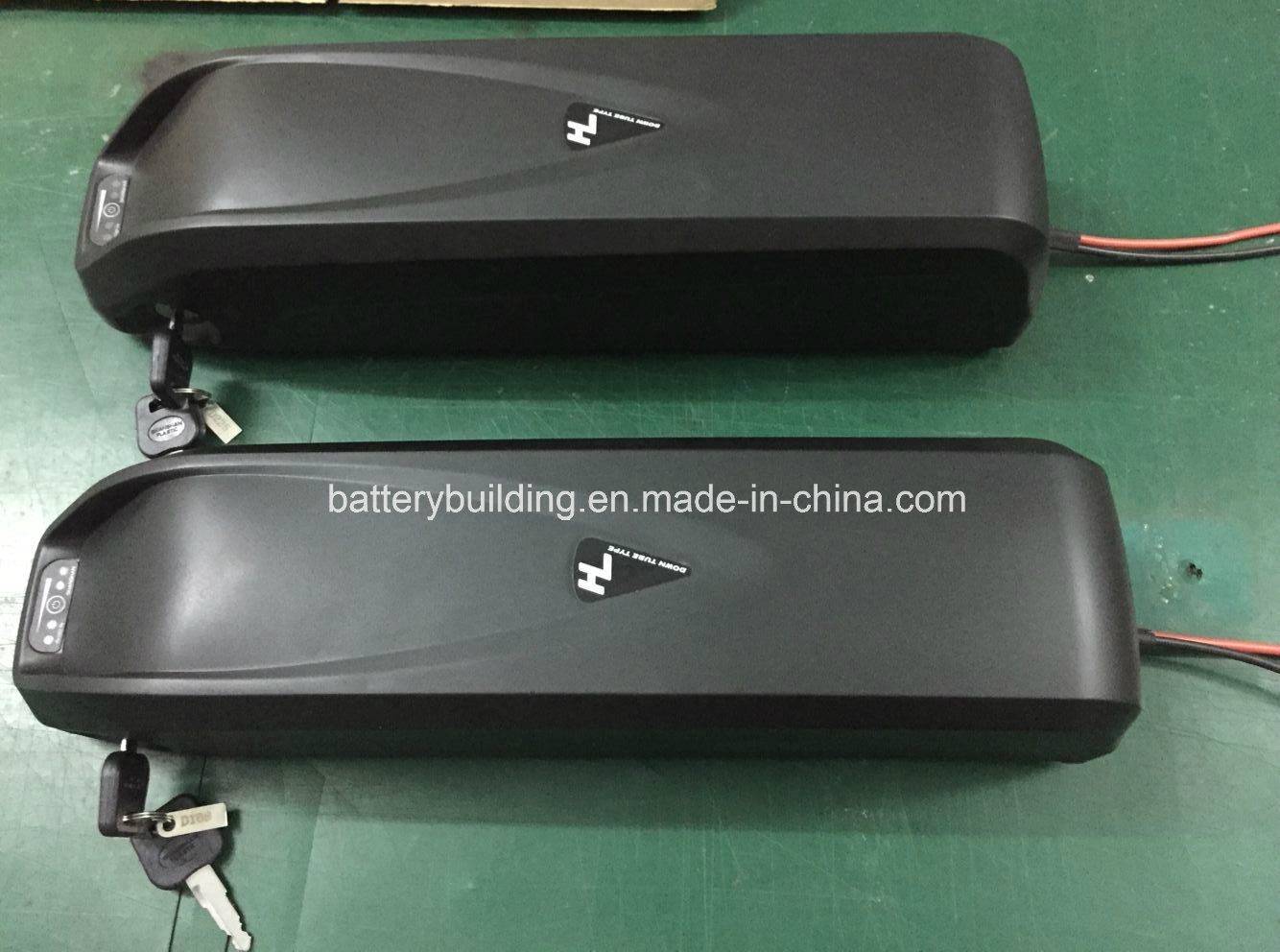

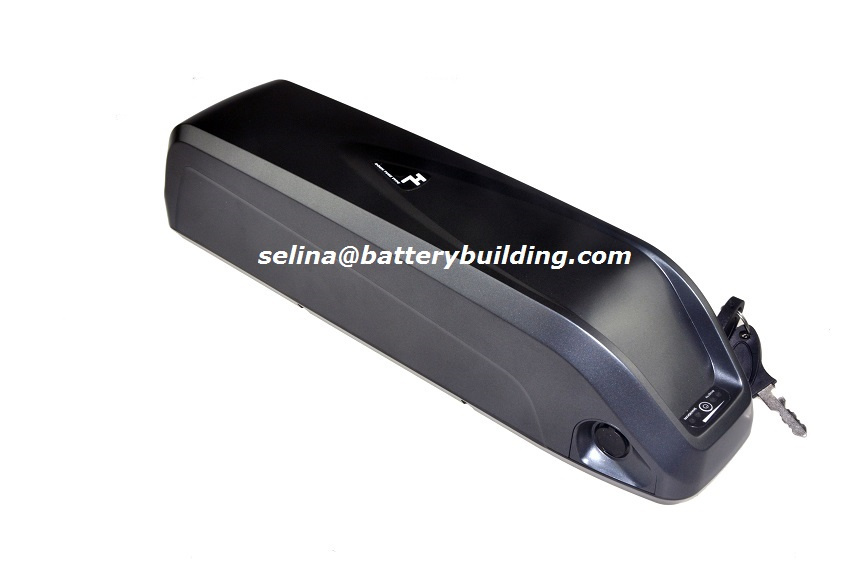

52V E-Bike Battery Pack 52 Volt Panasonic Lithium Battery for Electric Bicycle
| Price: |
US $ 215-250/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BBG-HL01 |
| Cell: |
Panasonic NCR18650PF 2900mAh Cells |
| Voltage: |
52V |
| Capacity: |
11.6ah |
| Configuration: |
14s4p |
| Working Current: |
25-30A |
| Color: |
Black and Grey |
| Net Weight: |
Approx 3.3kg |
| Charger: |
58.8V-2A Aluminum Charger |
| Cycle Life: |
>500times |
| Application: |
Electric Bicycle or Tricycle |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Size: |
360*90*90mm |
| Rated Capacity: |
11.6ah |
| Standard Voltage: |
52V |
| Usage: |
Electric Bicycle or Tricycle |
| Electrolyte: |
Lithium Battery |
Product Description
52V 11.6Ah Panasonic shark battery pack 14s4p Panasonic HL lithium battery for electric bikeFeaturesModel: 52V 11.6Ah downtube lithium batteryCell: Panasonic NCR18650PF 2900mAh cell.Configuration: 14S4PNominal Voltage: 52VNominal Capacity: 11.6AhSize: 360*90*90mm (L*W*T)Net Weight: Approx 3.3kg Customization: 36/48/52V 8.8-17Ah downtube battery pack are all available to us.
Optional Cells: Domestic 18650 cells: 2200mah, 2600mah. Samsung cells:22P, 26F,29E,32E,33G. Panasonic cells:18650PF,32BD,18650B etc. Other cells like LG, Sony etc are all available.
Specification:
NO | Item | General Parameter | Remark |
| 1 | Model | BBG-HL01 | |
| 2 | Standard capacity(0.2C) | 11.6Ah | |
| 3 | Rated voltage | 52V | |
| 4 | Max. charge voltage | 58.8V | Single Ave. charge Voltage: 4.2V |
| 5 |
Over charge protection | Over charge detection voltage | 4.40±0.025V | |
| Over charge release voltage | 4.3±0.025V | |
| 6 | Standard charge current | 2A | 0.2C |
| 7 | Charging time | About 300 minutes | 0.2C |
| 8 | Discharge cut-off voltage | 38.5V | Single Ave. Discharge Voltage: 2.75V |
| 9 |
Over discharge Protection | Over discharge detection voltage | 2.5±0.05V | |
| Over discharge release voltage | 2.75±0.05V | |
| 10 | Max. continuous discharge current | 25-30A(adjustable) | |
| 11 | Peak discharge current | 80A(adjustable) | 3C |
| 12 | Short circuit protection | Detection delay time | XXμs | Release condition | Cut-off load |
| 12 | Battery dimension | 360*90*90mm | |
| 13 | Total weight(Approx.) | About 3.3kg | |
| 14 | Operation temperature | Standard | 0~45 | |
| Discharge | -20~65 | |
| Storage | -20~65 | |
BMSThe BMS provides protection against over-charge, over-discharge, short circuit, through monitoring single string of cells. Also it enables every battery pack to obtain independent balancing function.Key ApplicationWidely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.Pictures for reference:
Shipping Terms1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )2.Bulk order: sending out by express/air/sea. Term of trade1. Payment: 30% advance payment by T/T, 70% balance should be paid off before shipping.2. EXW, FOB and CIF all are available.3. Production lead time:7-10 working days.4. Sample can be delivered in 3-5 working days.5. Discounts are offered based on large quantities.6. Loading port: Shenzhen or HK.Advantages1. Your inquiry related to our products will be replied within 24 hours.2. OEM & ODM, also provide customized service.3. CE, ROHS, UN, UL, MSDS etc certification.4. 2 years warranty and testing report can be provided. 5. Solid package, stable shipment, 100% testing and inspection before shipping to ensure the quality. 6. Distributorship is available for your unique design and some our current models.7. We will keep secret for customer sale area ,design ideas and all other private informationContactPlease contact us freelyor call us at +86-13267068372. Selina always here and will do best to help you.
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
