| Prod Model: |
PLD052-1SCF512T(S) |
| Output Power: |
52W |
| Dimming: |
Triac/Elv Dimming |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
95X70X32 mm |
| Brand: |
Fsp-Powerland |
Product Description

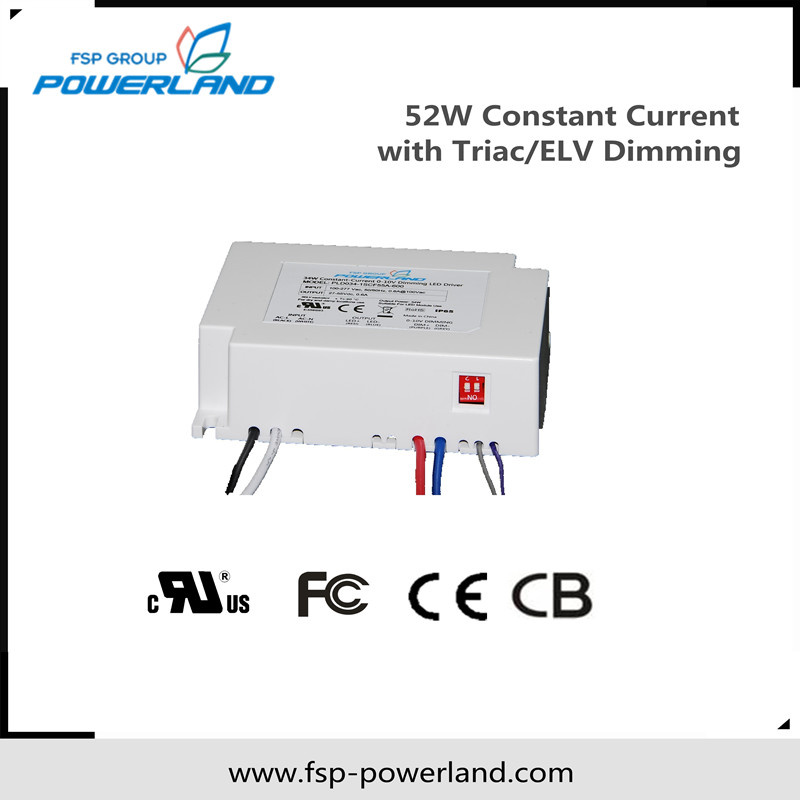

52W Constant Current LED Driver with Triac/ELV Dimming
Powerland's PLD052-1SCF512T(S) series offers constant current drivers with wide-range dimmable output current and 90~305Vac universal input.
The output current of this series is up to 1.0/1.1/1.2/1.3A with DIP switch current setting (TS version), and designed for Triac/ELV dimming applications.
Applications
Indoor LED lights
LED lights with flexible current settings
Downlights, spotlights, LED panels
Features
100,000 hours lifetime at 65oC Tcase
5 years warranty at 50oC Tcase
Constant current output
Compatible with Triac/ELV dimming
Output current settable with DIP switches (TS version)
Universal input voltage: 90~305Vac
Safety according to UL1310 & EN61347-2-13
UL Class 2 Output
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, & Open Circuit ProtectionSpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 52W | 28V
…
52V | 1.0A
…
1.3A | 85% | 90oC | 0.72A | 65W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.
Electrical Specifications| Model | PLD052-1SCF512T-1000 | PLD052-1SCF512T-1100 | PLD052-1SCF512T-1200 | PLD052-1SCF512T-1300 | PLD052-1SCF512TS-1300 |
Output Voltage | 28~52V | 28~48V | 28~42V | 28~40V | 28~52/28~48/
28~42/28~40V |
Output Current | 1000mA | 1100mA | 1200mA | 1300mA | 1000/1100/
1200/1300mA |
Dimming
| Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV |
Current Setting DIP Switches
| No | No | No | No | Yes |
Output Power | 52W | 52W | 52W | 52W | 52W |
Max. Current Ripple | ±30% | ±30% | ±30% | ±30% | ±30% |
Voltage Range | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 0.72A | 0.72A | 0.72A | 0.72A | 0.72A |
Max. Input Power | 65W | 65W | 65W | 65W | 65W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency | 84% | 84% | 84% | 84% | 84% |
Max. Open Circuit Voltage | 60V | 60V | 60V | 60V | 60V |
THD | <20% @ 120Vac & 80~100% load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp |
Working Temperature | -20~+60oC |
Max. Case Temperature | 90oC |
Surge Protection | 1kV |
Agency Approbations | UL1310 Class 2 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 95x70x32 mm (3.74x2.76x1.26 inch) |
Mounting Length | 85 mm (3.35 inch) |
Overall Length | 95 mm (3.74 inch) |
Weight | 0.34 kg (0.75 lb) |
Life Time | 100,000 hours @ full load, 65oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
Performance Characteristics

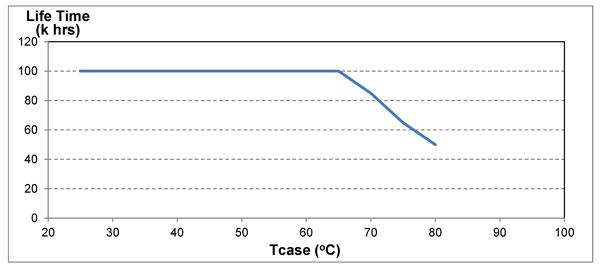

Life Time vs. Case Temperature
