| Prod Model: |
AS535058 |
| Weight: |
33G |
| Cycle Life: |
500times |
| OEM/ODM: |
Yes |
| Manufacture: |
Yes |
| Warranty: |
12 Months |
| Certification: |
UL1642, Ce |
| Typical Capacity: |
1600mAh |
| Minimum Capacity: |
1550mAh |
| Formal Order Delivery Time: |
4 Weeks |
| Discharge Cut-off Voltage: |
3.0V |
| Type: |
Lithium-Polymer Battery Pack |
| Electrolyte: |
Lithium Cobalt Oxide |
| Rated Capacity: |
1600mAh |
| Standard Voltage: |
3.7V |
| Size: |
5.5*51*60.5mm |
| Connection Mode: |
with PCM |
| Usage: |
Digital Products |
| Discharge Rate: |
1c |
Product Description
535058 3.7v 1600mah rechargeable UL li-polymer battery
Product Paramter:
| Item | Rating | Note |
| 3.1 Capacity | Typical | 1600mAh | Discharge:0.2CmA
cut off Voltage:3.0V for cell |
| Minimum | 1550mAh |
| 3.2 Nominal Voltage | Average 3.7V | Discharge:0.2CmA
cut off Voltage:3.0V for cell |
| 3.3 AC Impedance Resistance | ≤160mΩ | |
| 3.4 Discharge Cut-off Voltage | 3.00V | |
| 3.5 Charge Current | 320mA | Standard Charge |
| 3.6 Charge Voltage | 4.2V | |
| 3.7 Max. Charge Voltage | 4.23V | |
| 3.9 Max. Charge Current | 1600mA | 1.0CmA |
| 3.10 Max. Discharge Current | 1600mA | |
| 3.11 Weight | Approx 33g | cell |
3.12 Operating
Temperature | Charge | 0~+45°C | |
| Discharge | -20~+60°C | |
3.13 Storage
Temperature | less than 1 month | -20~+45°C | Recommended storage
temperature: 20°C,at the
shipment state |
| less than 3 months | -20~+35°C |

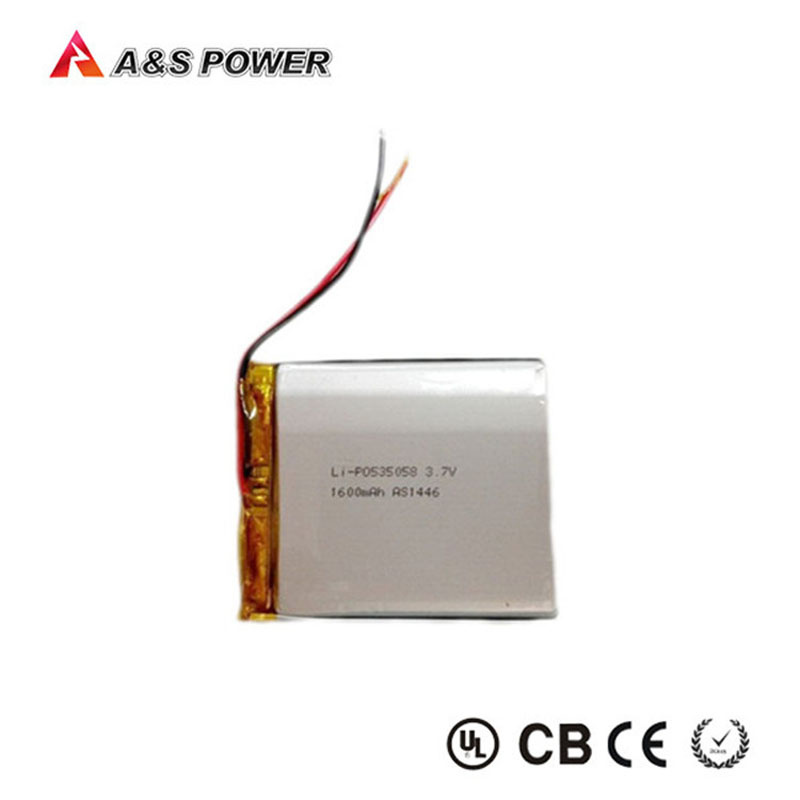

Product Picture:
Shipping
| Destination | Normally arrive port time in working days |
| Ship by express | Ship by sea | Ship by air |
| North America | 3-7 days | 15-28 days | 5-7 days |
| South America | 3-7 days | 15-30 days | 5-7 days |
| European | 3-7 days | 20-30 days | 5-7 days |
| Africa | 5-7 days | 45-50 days | 5-7 days |
| The Middle East | 3-5 days | 15-30 days | 3-5 days |
| Australia | 3-7 days | 10-20 days | 5-7 days |
Adavantages:
Green product.
Long standby time.
One year warranty.
Excellent safety performance.
Excellent storage performance and low self-discharge rate.
Short circuit testing passed.
Overcharge testing passed.
Over discharge testing passed.
150C thermal shock test passed.
Major application:
1)MP3/MP4 player, Bluetooth, speakers, car GPS and all possible electronics products
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
