54 Series High Effiency Universal Motor for Mixer/Grinder/Blender
| Price: |
US $ 1-6/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
U 54 |
| Type: |
Universal Motor |
| Place Of Origin: |
China (Mainland) |
| Voltage: |
100-240V |
| Speed Rated: |
6000-22000rpm |
| Input Power: |
100-700W |
| Rotation Direction: |
Cw/Ccw |
| Frequency: |
50/60Hz |
| Noise: |
<40dB |
| Insulation Grade: |
Class E |
| Temperature Rise: |
<60k |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |
| Application: |
Home Appliances |
| Certification: |
Ce |
| Brand: |
OEM |
Product Description
Product Description
P54 series universal motor for mixer/grinder/blender
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse
Hair dryer universal motor:
1. Rated: 100-240V, 50/60Hz
2. Rated speed: 6000-22000rpm
3. Input Power: 100-700W
4. Insulation class: A B F H
Rated voltage 100~240V-50/60Hz
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Packaging & Delivery
Packaging Details: | Polyfoam or carton seperator inside, strong export carton box outside, with pallet |
| Delivery Detail: | 30days |
Specifications
1) 100% copper wire
2) Less noise
3) Competitive price
4) Many models, mainly HC95,HC88,HC76,HC63,HC54
Quick Detail
Name: universal motor Type: universal Motor
Place of Origin: China(Mainland) Model Number: HC7630
Voltage: 115V/230V
Specifications:
Model |
HC7630 |
Model |
HC7630 |
Item |
Standard |
Item |
Standard |
Voltage |
AC 230V |
Voltage |
AC 120V |
Frequency |
50Hz |
Frequency |
60Hz |
In-put power |
400W |
In-put power |
400W |
Noise level |
≤85dB(A) |
Noise level |
≤85dB(A) |
No load current(A) |
0.40±10% |
No load current(A) |
0.82±10% |
No load speed(RPM) |
20000±10% |
No load speed(RPM) |
20000±10% |
No load power(W) |
100±10% |
No load power(W) |
100±10% |
Hi-pot test |
1800V/0.5mA/1S |
Hi-pot test |
1800V/0.5mA/1S |
Insulating grade |
CLASS F |
Insulating grade |
CLASS F |
Heating protection |
130°C |
Heating protection |
130°C
|
ABOUT US
Ritscher group was established in 2006.we always focus on micro-motors for household and industrial electrical appliance.Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province.It has 50,000 square meters plants and more than 500 employees, annual output is 5 million pcs and has 10 million pcs annual producing capacity.After years development,we built a great reputation in the domestic and oversea market and have the trust from our global customers.
We started our business from shaded pole motors, after 10 years development,our products is enlarged to BLDC motors ,capacitor motors ,synchronous motors,stepping motors,servo motors, and PMDC motors.Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.
To design the lastest technology motors and meet our customers requirments,we have the very capable R&D team,to ensure our products quality ,we have very strict manage system for our production department & QC department,to make our cost lower,we have the very professional purchase department, We dedicate to make every details better than we could do.
To offer quick and better service to our customers in Australia and New Zeland,we set up branch office in Australia since 2017 with exprienced consultant to support the business ,which will bring more customers to get know of us.
We will keep doing our job,move forward step by step to make our business area wider and brighter.
Our company FAQ for you

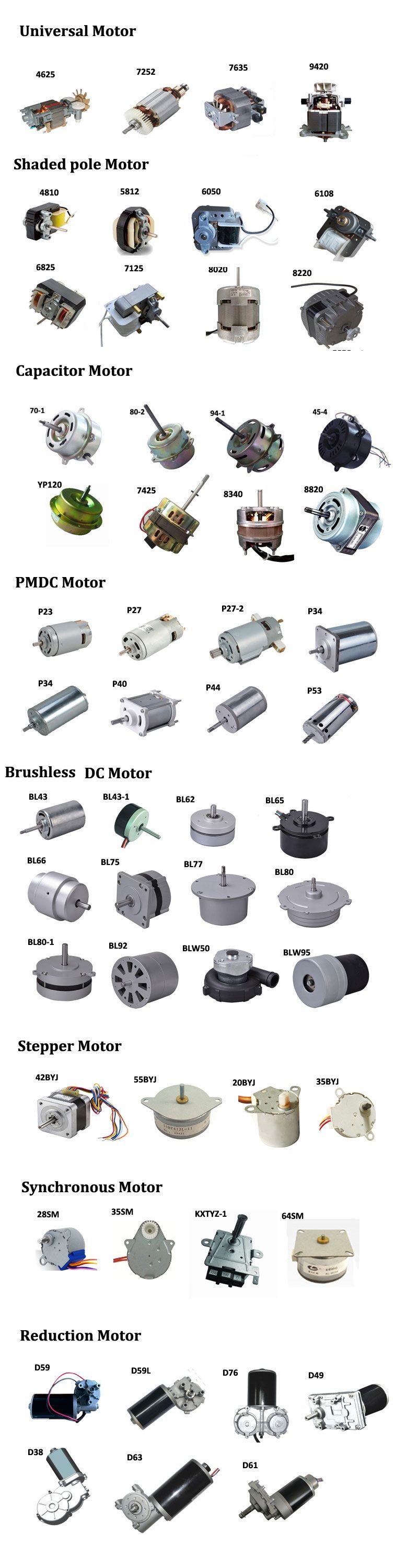

(1) Q: What kind motors you can provide?
A:For now,we mainly provide Kitchen Hood Motor,DC Motor,Gear Motor,Fan Motor Refrigerator Motor,Hair Dryer Motor Blender Motor Mixer Motor,
Shade Pole Motor,Capacitor Motor,BLDC Motor PMDC Motor,Synchronous Motor,Stepping Motor etc.
(2) Q: Is it possible to visit your factory
A: Sure. But please kindly keep us posted a few days in advance. We need to check our
schedule to see if we are available then.
(3) Q: Can I get some samples
A: It depends. If only a few samples for personal use or replacement, I am afraid it will
be difficult for us to provide, because all of our motors are custom made and no stock
available if there is no further needs. If just sample testing before the official order and
our MOQ, price and other terms are acceptable, we'd love to provide samples.
(4) Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
Ritscher group was established in 2006. We always focus on micro-motors for household and industrial electrical appliance. Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province. It has 50, 000 square meters plants and more than 500 employees, annual output is 5 million PCS and has 10 million PCS annual producing capacity. After years development, we built a great reputation in the domestic and oversea market and have the trust from our global customers.
We started our business from shaded pole motors, after 10 years development, our products is enlarged to BLDC motors, capacitor motors, synchronous motors, stepping motors, servo motors, and PMDC motors. Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators, ovens, air filter, massage machines and many other equipments.
To design the latest technology motors and meet our customers requirments, we have the very capable R&D team, to ensure our products quality, we have very strict manage system for our production department & QC department, to make our cost lower, we have the very professional purchase department, We dedicate to make every details better than we could do.
To offer quick and better service to our customers in Australia and New Zeland, we set up branch office in Australia since 2017 with exprienced consultant to support the business, which will bring more customers to get know of us.
We will keep doing our job, move forward step by step to make our business area wider and brighter.
