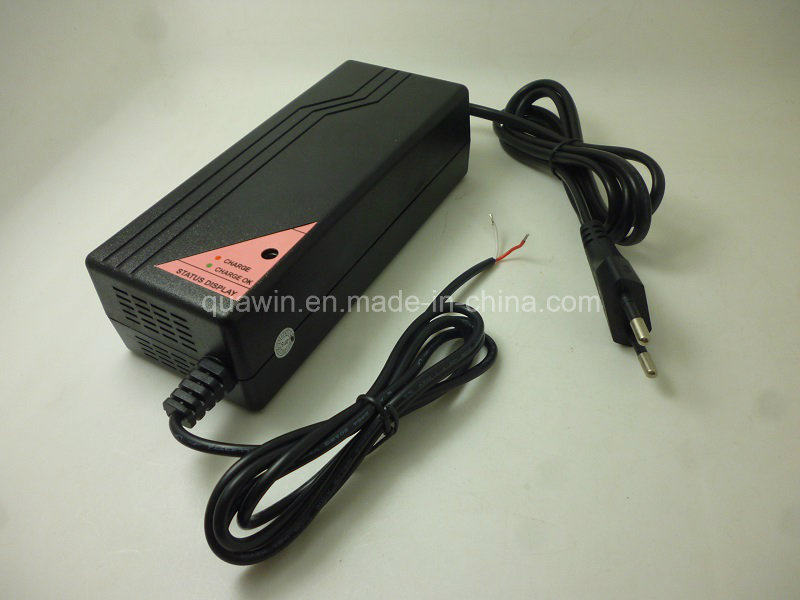

54V 2A Smart NiMH/NiCd Battery Charger
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
200/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
QW540-020-N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
AC100-240V 50/60Hz |
| Desktop Type: |
Yes |
| Delivery Date: |
Yes |
| Warranty: |
One Year |
| Type: |
Ni-MH Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
54V |
Product Description
36 Cells 43.2V NIMH NICD Battery Pack Charger (54V 2A)Quick Detail:Brand Name: QUAWINModel Number: QW540-020-NUse: 36 Cells 43.2V NIMH NICD Battery PackType: ElectricPlace of Origin: Guangdong China (Mainland)Battery charger: automatic battery charger 54VCertificate: CE Color: BlackInput voltage: 100-240VAC 50/60Hz
Input Current: Max 2AOutput voltage: 54VOutput current: 2AOutput power: 108WCharge mode: MCU control charging process to avoid over chargeOutput Connector: DC Jack, Small crocodile clip, Cigar lighter, XRL, Ring terminal Packaging:Inner package: white box/ polybags /at your request Outer package: carton Specifications: 36 Cells 43.2V NIMH NICD Battery PACKFeatures: ? Charging mode: CC-CV (Constant Current-Constant Voltage)
? High efficiency and low power consumption
? Stabilized output and low noice
? Power efficiency: 80%(min.) at full load,110Vac or 230Vac 40Hz.
? Operating temperature:-10C ~ 45C
? Storage temperature:-20C ~ 70C
? Operating humidity:5%~90%RHSpecification: ? Input: AC 100-240V 50-60Hz 1.0A ? Output: DC 54V ? Charging current: 2A ? Model Dimension: 152.5*63*45mm (800g) ? Carton Size: 460*420*240mm (900g) Safety protections: ? Over Voltage protection ? Short Circuit protection ? Polarity error protection ? Over power protection The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED: ? Charging: RED, ? Protection: RED Blinking ? No battery or Charging finished (Trickle on): GREEN ? Output short or battery poles wrong: RED Blinking
Call us to know more details datasheet. | ITEM | QW240-070-N | QW240-080-N | QW270-060-N | QW270-070-N | QW270-080-N | QW300-060-N |
| Output voltage: | 24V | 24V | 27V | 27V | 27V | 30V |
| Rated output current: | 7A | 8A | 6A | 7A | 8A | 6A |
| Output power: | 168W | 192W | 162W | 189W | 216W | 180W |
| ITEM | QW300-070-N | QW300-080-N | QW330-050-N | QW330-060-N | QW330-070-N | QW330-080-N |
| Output voltage: | 30V | 30V | 33V | 33V | 33V | 33V |
| Rated output current: | 7A | 8A | 5A | 6A | 7A | 8A |
| Output power: | 210W | 240W | 165W | 198W | 231W | 264W |
| ITEM | QW360-050-N | QW360-060-N | QW360-070-N | QW360-080-N | QW390-040-N | QW390-050-N |
| Output voltage: | 36V | 36V | 36V | 36V | 39V | 39V |
| Rated output current: | 5A | 6A | 7A | 8A | 4A | 5A |
| Output power: | 180W | 216W | 252W | 288W | 156W | 195W |
| ITEM | QW390-060-N | QW390-070-N | QW420-040-N | QW420-050-N | QW420-060-N | QW420-070-N |
| Output voltage: | 39V | 39V | 42V | 42V | 42V | 42V |
| Rated output current: | 6A | 7A | 4A | 5A | 6A | 7A |
| Output power: | 234W | 273W | 168W | 210W | 252W | 294W |
| ITEM | QW450-040-N | QW450-050-N | QW450-060-N | QW480-040-N | QW480-050-N | QW480-060-N |
| Output voltage: | 45V | 45V | 45V | 48V | 48V | 48V |
| Rated output current: | 4A | 5A | 6A | 4A | 5A | 6A |
| Output power: | 180W | 225W | 270W | 192W | 240W | 288W |
| ITEM | QW510-030-N | QW510-040-N | QW510-050-N | QW540-030-N | QW540-040-N | QW540-050-N |
| Output voltage: | 51V | 51V | 51V | 54V | 54V | 54V |
| Rated output current: | 3A | 4A | 5A | 3A | 4A | 5A |
| Output power: | 153W | 204W | 255W | 162W | 216W | 270W |
Quality is our priority, win by quality" which is the origin of the our company name --Quawin.
We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.
As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.
We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.
We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.
To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
