| Prod Model: |
QW540-030-N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Desktop Type: |
Yes |
| Delivery Date: |
15days |
| Type: |
Ni-MH Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
54V |
Product Description

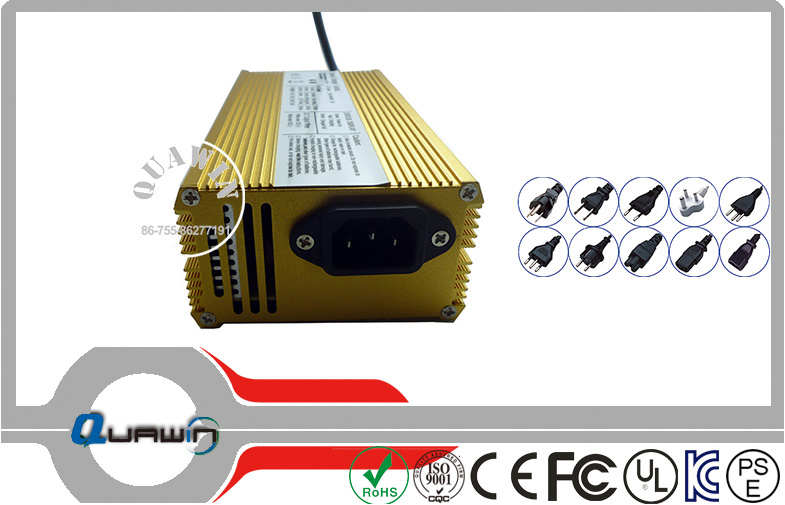

36 Cells 43.2V NIMH NICD Battery Pack Charger(54V 3A)
Quick Detail:Brand Name: QUAWIN
Model Number: QW540-030-N
Use: 36 Cells 43.2V NIMH NICD Battery Pack
Type: Electric
Place of Origin: Guangdong China (Mainland)
Battery charger: Automatic battery charger 54V
Certificate: CE FCC UL SAA ROHS
Color: Black
Input voltage: 100-240VAC 50/60Hz
Input Current: Max 3A
Output voltage: 54V
Output current: 3A
Output power: 162W
Charge mode: MCU control charging process to avoid over charge
Output Connector: DC Jack, Small crocodile clip, Cigar lighter, XRL, Ring terminal
Packaging & Delivery:Inner package: White box/polybags/at your request outer package: Carton
Delivery Detail: Sample within 7 work days, 25 days for bulk order
Specifications:36 Cells 43.2V NIMH NICD Battery PACK
Features:Charging mode: CC- CV(Constant Current- Constant Voltage)
High efficiency and low power consumption
Stabilized output and low noice
Power efficiency: 80%(min. ) at full load, 110Vac or 230Vac 40Hz.
Operating temperature: 0C ~ 45C
Storage temperature: -20C ~ 70C
Operating humidity: 5%~90%RH
Specification:Input: AC 100-240V 50-60Hz 1.0A
Output: DC 54V
Charging current: 3A
Model Dimension: 152.5*63*45mm(800g)
Carton Size: 460*420*240mm(900g)
Safety protections:Over Voltage protection
Short Circuit protection
Polarity error protection
Over power protection
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
Charging: RED,
Protection: RED Blinking
No battery or Charging finished(Trickle on): GREEN
Output short or battery poles wrong: RED Blinking
| ITEM | QW240-070-N | QW240-080-N | QW270-060-N | QW270-070-N | QW270-080-N | QW300-060-N |
| Output voltage: | 24V | 24V | 27V | 27V | 27V | 30V |
| Rated output current: | 7A | 8A | 6A | 7A | 8A | 6A |
| Output power: | 168W | 192W | 162W | 189W | 216W | 180W |
| ITEM | QW300-070-N | QW300-080-N | QW330-050-N | QW330-060-N | QW330-070-N | QW330-080-N |
| Output voltage: | 30V | 30V | 33V | 33V | 33V | 33V |
| Rated output current: | 7A | 8A | 5A | 6A | 7A | 8A |
| Output power: | 210W | 240W | 165W | 198W | 231W | 264W |
| ITEM | QW360-050-N | QW360-060-N | QW360-070-N | QW360-080-N | QW390-040-N | QW390-050-N |
| Output voltage: | 36V | 36V | 36V | 36V | 39V | 39V |
| Rated output current: | 5A | 6A | 7A | 8A | 4A | 5A |
| Output power: | 180W | 216W | 252W | 288W | 156W | 195W |
| ITEM | QW390-060-N | QW390-070-N | QW420-040-N | QW420-050-N | QW420-060-N | QW420-070-N |
| Output voltage: | 39V | 39V | 42V | 42V | 42V | 42V |
| Rated output current: | 6A | 7A | 4A | 5A | 6A | 7A |
| Output power: | 234W | 273W | 168W | 210W | 252W | 294W |
| ITEM | QW450-040-N | QW450-050-N | QW450-060-N | QW480-040-N | QW480-050-N | QW480-060-N |
| Output voltage: | 45V | 45V | 45V | 48V | 48V | 48V |
| Rated output current: | 4A | 5A | 6A | 4A | 5A | 6A |
| Output power: | 180W | 225W | 270W | 192W | 240W | 288W |
| ITEM | QW510-030-N | QW510-040-N | QW510-050-N | QW540-030-N | QW540-040-N | QW540-050-N |
| Output voltage: | 51V | 51V | 51V | 54V | 54V | 54V |
| Rated output current: | 3A | 4A | 5A | 3A | 4A | 5A |
| Output power: | 153W | 204W | 255W | 162W | 216W | 270W |
