Prod Model: |
YE2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Power: |
0.55-200HP |
Voltage: |
220/3/0/440/660V |
Frequency: |
50/60Hz |
Frame Material: |
1/4-10HP ( Alu), 3/4-270HP (Cast Iron) |
Mounting Position: |
Imb3/B5/B35/B14/B34 |
Protection Class: |
IP55 |
Insulation Grade: |
F |
Cooling Method: |
IC411 |
Continuous Working Duty: |
S1 |
Winding Protections: |
PTC, PT100 and Kty84-130 as Option |
Application: |
Power Tools |
Operating Speed: |
Low Speed |
Number Of Stator: |
Three-Phase |
Species: |
Y, Y2 Series Three-Phase |
Rotor Structure: |
Squirrel-Cage |
Casing Protection: |
Closed Type |
Starting Mode: |
Direct on-line Starting |
Certification: |
CE |
Product Description

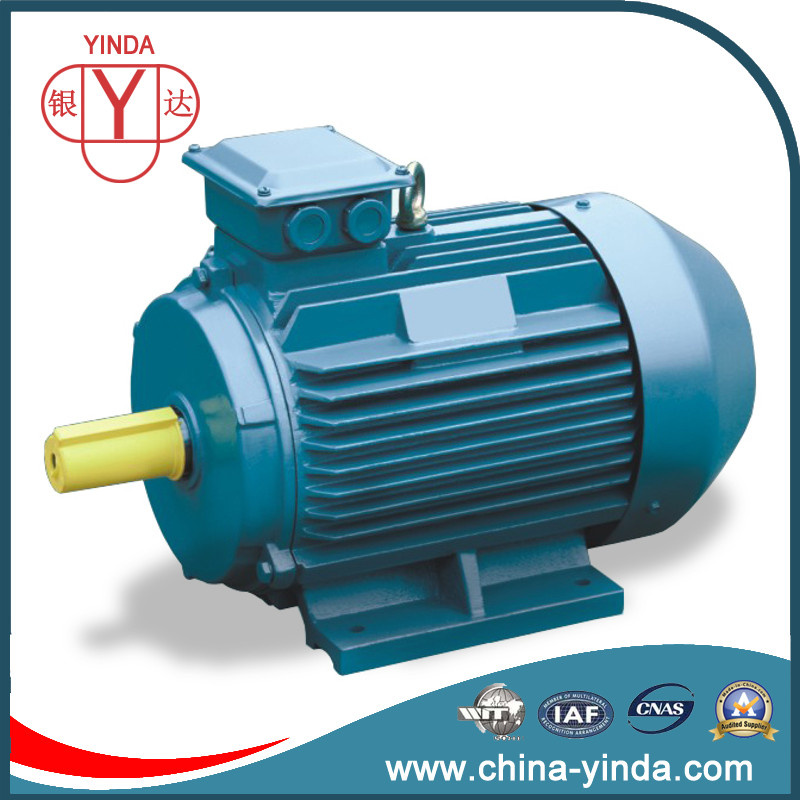

0.55- 200kW TEFC Three Phase Asynchronous MotorStandard features: - Three-phase, multivoltage, IP54, TEFC
- High efficiency - complying with IE2 efficiency levels according to IEC60034-30
- Output: 0,55 up to 200kW
- Number of Poles: 2, 4, 6 and 8
- Frames: 80 up to 315
- Mounting: B3
- Voltage: 220-240/380-415V / 380-415/660V
- Class "F" insulation (ΔT = 80K)
- Continuous duty: S1
- Ambient temperature: 40 °C, at 1000 m.a.s.l
- Squirrel cage rotor / Aluminium die cast
- V'Ring seal for frames 63 to 200L and for frames 225S/M to 355A/B
- Color: RAL 5010 - Blue
*For additional details about Inverter operation, please contact our technical support.
Optical features: - Frequency: 60 Hz
- Other voltages
- Winding protections with PTC, PT100 and KTY84-130 as option
- Double shaft end
- Aluminum fram available 63 up to 132
- Encoder
- external separately driven fans as option.
Technical Data: Frame Size | POWER KW | HORSEPOWER HP | VOLTAGE V | CURRENT A | FREQUENCY HZ | SPEED R/MIN | EFFICIENCY % | POWER FACTOR COS | LOCKED-ROTOR CURRENT/RATED CURRENT | LOCKED -ROTOR TORQUE/RATED TORQUE | MAX TORQUE/RATED TORQUE | NOISE LwdB(A) |
80M1-2 | 0.75 | 1 | 380 | 1.8 | 50 | 2830 | 75 | 0.84 | 6.5 | 2.2 | 2.3 | 71 |
80M2-2 | 1.1 | 1.5 | 380 | 2.5 | 50 | 2830 | 77 | 0.86 | 7 | 2.2 | 2.3 | 71 |
90S-2 | 1.5 | 2 | 380 | 3.4 | 50 | 2840 | 78 | 0.85 | 7 | 2.2 | 2.3 | 75 |
90L-2 | 2.2 | 3 | 380 | 4.7 | 50 | 2840 | 82 | 0.86 | 7 | 2.2 | 2.3 | 75 |
100L-2 | 3 | 4 | 380 | 6.4 | 50 | 2880 | 82 | 0.87 | 7 | 2.2 | 2.3 | 79 |
112M-2 | 4 | 5.5 | 380 | 8.2 | 50 | 2890 | 85.5 | 0.87 | 7 | 2.2 | 2.3 | 79 |
132S1-2 | 5.5 | 7.5 | 380 | 11.1 | 50 | 2900 | 85.5 | 0.88 | 7 | 2 | 2.2 | 83 |
132S2-2 | 7.5 | 10 | 380 | 15 | 50 | 2900 | 86.2 | 0.88 | 7 | 2.2 | 2.2 | 83 |
160M1-2 | 11 | 15 | 380 | 22 | 50 | 2930 | 87.2 | 0.88 | 7 | 2 | 2.2 | 87 |
160M2-2 | 15 | 20 | 380 | 29 | 50 | 2930 | 88.2 | 0.88 | 7 | 2 | 2.2 | 87 |
160L-2 | 18.5 | 25 | 380 | 36 | 50 | 2930 | 89 | 0.89 | 7 | 2 | 2.3 | 87 |
180M-2 | 22 | 30 | 380 | 42.2 | 50 | 2940 | 89 | 0.89 | 7 | 2 | 2.2 | 92 |
200L1-2 | 30 | 40 | 380 | 57 | 50 | 2950 | 90 | 0.89 | 7 | 2 | 2.2 | 95 |
200L2-2 | 37 | 50 | 380 | 70 | 50 | 2950 | 90.5 | 0.89 | 7 | 2 | 2.2 | 95 |
225M-2 | 45 | 60 | 380 | 84 | 50 | 2970 | 91.5 | 0.89 | 7 | 2 | 2.2 | 97 |
250M-2 | 55 | 75 | 380 | 103 | 50 | 2970 | 91.5 | 0.89 | 7 | 2 | 2.2 | 97 |
280S-2 | 75 | 100 | 380 | 140 | 50 | 2970 | 91.5 | 0.89 | 7 | 2 | 2.2 | 99 |
280M-2 | 90 | 120 | 380 | 167 | 50 | 2970 | 92 | 0.89 | 7 | 2 | 2.2 | 99 |
315S-2 | 110 | 150 | 380 | 203 | 50 | 2980 | 92.5 | 0.89 | 7 | 1.8 | 2.2 | 104 |
315M-2 | 132 | 180 | 380 | 242 | 50 | 2980 | 93 | 0.89 | 7 | 1.8 | 2.2 | 104 |
315L1-2 | 160 | 220 | 380 | 292 | 50 | 2980 | 93.5 | 0.89 | 7 | 1.8 | 2.2 | 104 |
315L2-2 | 200 | 270 | 380 | 365 | 50 | 2980 | 93.5 | 0.89 | 7 | 1.8 | 2.2 | 104 |
80M1-4 | 0.55 | 0.75 | 380 | 1.5 | 50 | 1390 | 73 | 0.76 | 6 | 2.2 | 2.3 | 67 |
80M2-4 | 0.75 | 1 | 380 | 2 | 50 | 1390 | 74.5 | 0.76 | 6 | 2.2 | 2.3 | 67 |
90S-4 | 1.1 | 1.5 | 380 | 2.8 | 50 | 1400 | 78 | 0.78 | 6.5 | 2.3 | 2.3 | 67 |
90L-4 | 1.5 | 2 | 380 | 3.7 | 50 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 67 |
100L1-4 | 2.2 | 3 | 380 | 5 | 50 | 1420 | 81 | 0.82 | 7 | 2.2 | 2.3 | 70 |
100L2-4 | 3 | 4 | 380 | 6.8 | 50 | 1420 | 82.5 | 0.81 | 7 | 2.2 | 2.3 | 70 |
112M-4 | 4 | 5.5 | 380 | 8.8 | 50 | 1440 | 84.5 | 0.82 | 7 | 2.2 | 2.3 | 74 |
132S-4 | 5.5 | 7.5 | 380 | 11.7 | 50 | 1440 | 85.5 | 0.84 | 7 | 2 | 2.3 | 78 |
132M-4 | 7.5 | 10 | 380 | 15 | 50 | 1440 | 87 | 0.85 | 7 | 2.2 | 2.3 | 78 |
160M-4 | 11 | 15 | 380 | 23 | 50 | 1460 | 88 | 0.84 | 7 | 2.2 | 2.3 | 82 |
160L-4 | 15 | 20 | 380 | 30 | 50 | 1460 | 88.5 | 0.85 | 7 | 2.2 | 2.2 | 82 |
180M-4 | 18.5 | 25 | 380 | 35 | 50 | 1470 | 91 | 0.86 | 7 | 2 | 2.2 | 82 |
180L-4 | 22 | 30 | 380 | 43 | 50 | 1470 | 91.5 | 0.86 | 7 | 2 | 2.2 | 82 |
200L-4 | 30 | 40 | 380 | 57 | 50 | 1470 | 92.2 | 0.87 | 7 | 2 | 2.2 | 84 |
225S-4 | 37 | 50 | 380 | 70 | 50 | 1480 | 91.8 | 0.87 | 7 | 1.9 | 2.2 | 84 |
225M-4 | 45 | 60 | 380 | 84 | 50 | 1480 | 92.3 | 0.88 | 7 | 1.9 | 2.2 | 84 |
250M-4 | 55 | 75 | 380 | 103 | 50 | 1480 | 93 | 0.88 | 7 | 2 | 2.2 | 86 |
Y280S-4 | 75 | 100 | 380 | 140 | 50 | 1480 | 93 | 0.88 | 7 | 2 | 2.2 | 90 |
280M-4 | 90 | 120 | 380 | 164 | 50 | 1480 | 93.5 | 0.88 | 7 | 2 | 2.2 | 90 |
315S-4 | 110 | 150 | 380 | 201 | 50 | 1480 | 93.5 | 0.89 | 7 | 1.8 | 2.2 | 98 |
315M-4 | 132 | 180 | 380 | 240 | 50 | 1490 | 94 | 0.89 | 7 | 1.8 | 2.2 | 101 |
315L1-4 | 160 | 220 | 380 | 289 | 50 | 1490 | 94.5 | 0.89 | 7 | 1.8 | 2.2 | 101 |
315L2-4 | 200 | 270 | 380 | 361 | 50 | 1490 | 94.5 | 0.89 | 7 | 1.8 | 2.2 | 101 |
90S-6 | 0.75 | 1 | 380 | 2.3 | 50 | 910 | 72.5 | 0.7 | 5.5 | 2 | 2.2 | 65 |
90L-6 | 1.1 | 1.5 | 380 | 3.2 | 50 | 910 | 73.5 | 0.72 | 5.5 | 2 | 2.2 | 65 |
100L-6 | 1.5 | 2 | 380 | 4 | 50 | 940 | 77.5 | 0.74 | 6 | 2 | 2.2 | 67 |
112M-6 | 2.2 | 3 | 380 | 5.6 | 50 | 940 | 80.5 | 0.74 | 6 | 2 | 2.2 | 67 |
132S-6 | 3 | 4 | 380 | 7.3 | 50 | 960 | 83 | 0.76 | 6.5 | 2 | 2.2 | 71 |
132M1-6 | 4 | 5.5 | 380 | 9.4 | 50 | 960 | 84 | 0.77 | 6.5 | 2 | 2.2 | 71 |
132M2-6 | 5.5 | 7.5 | 380 | 12.6 | 50 | 960 | 85.3 | 0.78 | 6.5 | 2 | 2.3 | 71 |
160M-6 | 7.5 | 10 | 380 | 17 | 50 | 970 | 86 | 0.78 | 6.5 | 2 | 2 | 75 |
160L-6 | 11 | 15 | 380 | 25 | 50 | 970 | 87 | 0.78 | 6.5 | 2 | 2 | 75 |
180L-6 | 15 | 20 | 380 | 31 | 50 | 970 | 89.5 | 0.81 | 6.5 | 1.8 | 2 | 78 |
200L-6 | 18.5 | 25 | 380 | 45 | 50 | 970 | 89.8 | 0.83 | 6.5 | 1.8 | 2 | 78 |
200L1-6 | 22 | 30 | 380 | 34 | 50 | 970 | 90.2 | 0.83 | 6.5 | 1.8 | 2 | 78 |
200L2-6 | 30 | 40 | 380 | 60 | 50 | 980 | 90.2 | 0.85 | 6.5 | 1.7 | 2 | 81 |
225M-6 | 37 | 50 | 380 | 72 | 50 | 980 | 91 | 0.86 | 6.5 | 1.6 | 2 | 87 |
280S-6 | 45 | 60 | 380 | 85 | 50 | 980 | 93.5 | 0.86 | 6.5 | 1.6 | 2 | 87 |
280M-6 | 55 | 75 | 380 | 104 | 50 | 980 | 92 | 0.86 | 6.5 | 1.6 | 2 | 88 |
315S-6 | 75 | 100 | 380 | 141 | 50 | 990 | 93 | 0.87 | 6.5 | 1.6 | 2 | 88 |
315M-6 | 90 | 120 | 380 | 169 | 50 | 990 | 93.5 | 0.87 | 6.5 | 1.6 | 2 | 88 |
315L1-6 | 110 | 150 | 380 | 205 | 50 | 990 | 92 | 0.87 | 6.5 | 1.6 | 2 | 89 |
315L2-6 | 132 | 180 | 380 | 245 | 50 | 990 | 92.5 | 0.87 | 6.5 | 1.6 | 2 | 89 |
112M-8 | 2.2 | 3 | 380 | 4.8 | 50 | 710 | 73 | 0.66 | 5.5 | 2 | 2 | 63 |
160M1-8 | 4 | 5.5 | 380 | 9.9 | 50 | 720 | 84 | 0.73 | 6 | 2 | 2 | 69 |
160M2-8 | 5 | 7.5 | 380 | 13 | 50 | 720 | 85 | 0.74 | 6 | 2 | 2 | 69 |
160L-87 | 7.5 | 10 | 380 | 8 | 50 | 720 | 86 | 0.75 | 5.5 | 2 | 2 | 72 |
180L-8 | 11 | 15 | 380 | 25 | 50 | 730 | 86.5 | 0.77 | 6 | 1.7 | 2 | 72 |
200L-8 | 15 | 20 | 380 | 34 | 50 | 730 | 88 | 0.76 | 6 | 1.8 | 2 | 75 |
225S-8 | 18.5 | 25 | 380 | 41 | 50 | 730 | 89 | 0.76 | 6 | 1.7 | 2 | 75 |
250M-8 | 30 | 40 | 380 | 63 | 50 | 730 | 90.5 | 0.8 | 6 | 1.6 | 2 | 88 |
280S-8 | 37 | 50 | 380 | 78 | 50 | 740 | 92 | 0.8 | 6.5 | 1.6 | 2 | 88 |
280M-8 | 45 | 60 | 380 | 93 | 50 | 740 | 92.5 | 0.8 | 6.5 | 1.6 | 2 | 89 |
315S-8 | 55 | 75 | 380 | 113 | 50 | 740 | 92 | 0.8 | 6.5 | 1.6 | 2 | 89 |
315M-8 | 75 | 100 | 380 | 152 | 50 | 740 | 92.5 | 0.81 | 6.5 | 1.6 | 2 | 89 |
315L1-8 | 90 | 120 | 380 | 179 | 50 | 740 | 92.5 | 0.82 | 6.5 | 1.6 | 2 | 89 |
315L2-8 | 110 | 150 | 380 | 218 | 50 | 740 | 92.5 | 0.82 | 6.5 | 1.6 | 2 | 89 |

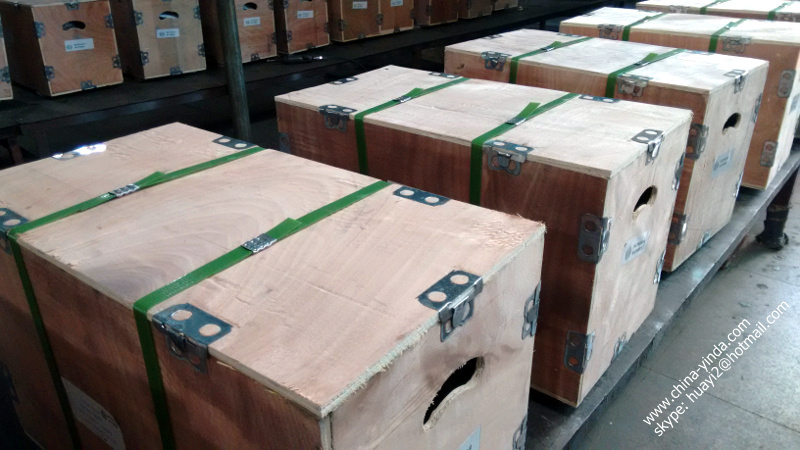

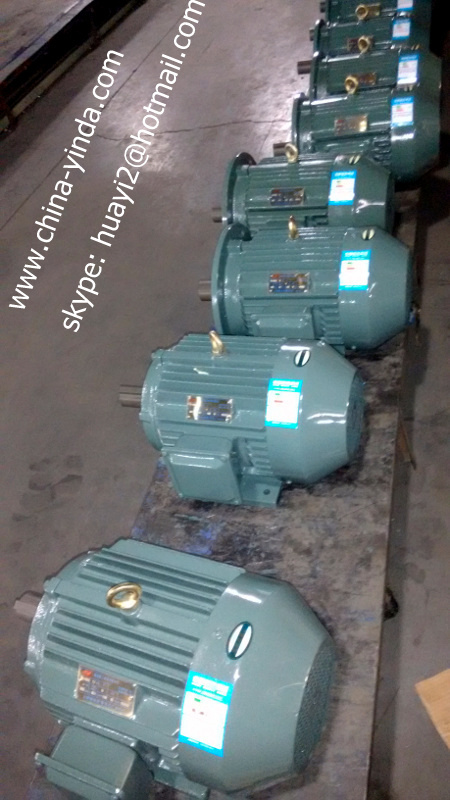

Photos:
