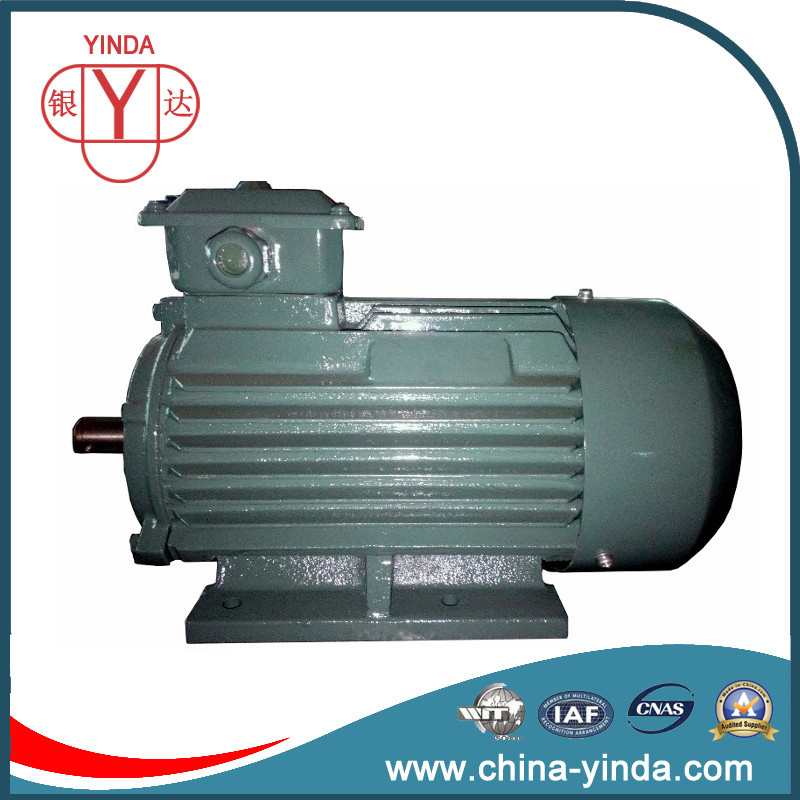

0.55 ~ 200kw Ie3 Eff. Three Phase AC Motor

Name: 0.55 ~ 200kw Ie3 Eff. Three Phase AC Motor
Brand: all-electronics-online.com
SKU: 702726482
Availability: InStock
Rating: 4.9 (146 reviews)

Price:	US $ 85-97/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YE3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	0.55- 200kw
Voltage:	220/380/440/660V
Frequency:	50/60Hz
Frame Material:	Cast Iron
Mounting Position:	B3/B5/B35/B14/B34
Cooling Method:	IC411
Protection Class:	IP55
Insulation Grade:	F
Continuous Working Duty:	S1
Winding Protections:	PTC, PT100 and Kty84-130 as Option
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Species:	Ie3

Product Description

Premium Effificiency Three Phase AC Motor

Standard features:
Cast iron Frame: 80-315L
Mounting type: B3/B5/B35
Power: 0.55kw(0.75HP)-200kw(270HP)
Squirrel cage rotor/Aluminium die cast
Continous duty: S1
Protection grade: IP55
Insulation class: F
Voltage: 380V

Optical features:
Mounting type: B5/B14
Special voltages 220V, 660V
PTC thermistors protection

Technical Data

Motor Type	Rated Output (50Hz)		Efficiency	Power factor	Rated Current	ILR / Irated	TLR/Trated	Tmax/Trated	LWA
Motor Type	kW	HP	Full Load 100%	CosΦ	A	ILR / Irated	TLR/Trated	Tmax/Trated	dB(A)
3000 r/min = 2 poles 380V 50Hz
YE3-80M1-2	0.75	1	80.7	0.82	1.7	7.0	2.3	2.3	62
YE3-80M2-2	1.1	1.5	82.7	0.83	2.4	7.3	2.2	2.3	62
YE3-90S-2	1.5	2	84.2	0.84	3.2	7.6	2.2	2.3	67
YE3-90L-2	2.2	3	85.9	0.85	4.6	7.6	2.2	2.3	67
YE3-100L-2	3	4	87.1	0.87	6	7.8	2.2	2.3	74
YE3-112M-2	4	5.5	88.1	0.88	7.8	8.3	2.2	2.3	77
YE3-132S1-2	5.5	7.5	89.2	0.88	10.6	8.3	2	2.3	79
YE3-132S2-2	7.5	10	90.1	0.88	14.4	7.9	2	2.3	79
YE3-160M1-2	11	15	91.2	0.89	20.6	8.1	2	2.3	81
YE3-160M-2	15	20	91.9	0.89	27.9	8.1	2	2.3	81
YE3-160L-2	18.5	25	92.4	0.89	34.2	8.2	2	2.3	81
YE3-180M-2	22	30	92.7	0.89	40.5	8.2	2	2.3	83
YE3-200L1-2	30	40	93.3	0.89	54.9	7.6	2	2.3	84
YE3-200L2-2	37	50	93.7	0.89	67.4	7.6	2	2.3	84
YE3-225M-2	45	60	94	0.9	80.8	7.7	2	2.3	86
YE3-250M-2	55	75	94.3	0.9	98.5	7.7	2	2.3	89
YE3-280S-2	75	100	94.7	0.9	133.7	7.1	1.8	2.3	91
YE3-280M-2	90	120	95	0.9	159.9	7.1	1.8	2.3	91
YE3-315S-2	110	150	95.2	0.9	195.1	7.1	2	2.2	92
YE3-315M-2	132	180	95.4	0.9	233.6	7.1	2	2.2	92
YE3-315L1-2	160	220	95.6	0.91	279.4	7.2	2	2.2	92
YE3-315L2-2	200	270	95.8	0.91	348.6	7.2	2	2.2	92
1500 r/min = 4 poles 380V 50Hz
YE3-80M2-4	0.75	1	82.5	0.75	1.8	6.6	2.3	2.3	56
YE3-90S-4	1.1	1.5	84.1	0.76	2.6	6.8	2.3	2.3	59
YE3-90L-4	1.5	2	85.3	0.77	3.5	7	2.3	2.3	59
YE3-100L1-4	2.2	3	86.7	0.81	4.8	7.6	2.3	2.3	64
YE3-100L2-4	3	4	87.7	0.82	6.3	7.6	2.3	2.3	64
YE3-112M-4	4	5.5	88.6	0.82	8.4	7.8	2.2	2.3	65
YE3-132S-4	5.5	7.5	89.6	0.83	11.2	7.9	2	2.3	71
YE3-132M-4	7.5	10	90.4	0.84	15	7.5	2	2.3	71
YE3-160M-4	11	15	91.4	0.82	22.3	7.7	2.2	2.3	73
YE3-160L-4	15	20	92.1	0.86	28.8	7.8	2.2	2.3	73
YE3-180M-4	18.5	25	92.6	0.86	35.3	7.8	2	2.3	76
YE3-180L-4	22	30	93	0.86	41.8	7.8	2	2.3	76
YE3-200L-4	30	40	93.6	0.86	56.6	7.3	2	2.3	76
YE3-225S-4	37	50	93.9	0.86	69.6	7.4	2	2.3	78
YE3-225M-4	45	60	94.2	0.86	84.4	7.4	2	2.3	78
YE3-250M-4	55	75	94.6	0.86	102.7	7.4	2.2	2.3	79
YE3-280S-4	75	100	95	0.88	136.3	6.9	2	2.3	80
YE3-280M-4	90	120	95.2	0.88	163.2	6.9	2	2.3	80
YE3-315S-4	110	150	95.4	0.89	196.8	7	2	2.2	88
YE3-315M-4	132	180	95.6	0.89	235.7	7	2	2.2	88
YE3-315L1-4	160	220	95.8	0.89	285.1	7.1	2	2.2	88
YE3-315L2-4	200	270	96	0.9	351.7	7.1	2	2.2	88
1000 r/min = 6 poles 380V 50Hz
YE3-90S-6	0.75	1	78.9	0.71	2	6	2	2.1	57
YE3-90L-6	1.1	1.5	81	0.73	2.8	6	2	2.1	57
YE3-100L-6	1.5	2	82.5	0.73	3.8	6.5	2	2.1	61
YE3-112M-6	2.2	3	84.3	0.74	5.4	6.6	2	2.1	65
YE3-132S-6	3	4	85.6	0.74	7.2	6.8	2	2.1	69
YE3-132M1-6	4	5.5	86.8	0.74	9.5	6.8	2	2.1	69
YE3-132M2-6	5.5	7.5	88	0.75	12.7	7	2	2.1	69
YE3-160M-6	7.5	10	89.1	0.79	16.2	7	2	2.1	73
YE3-160L-6	11	15	90.3	0.8	23.1	7.2	2	2.1	73
YE3-180L-6	15	20	91.2	0.81	30.9	7.3	2	2.1	73
YE3-200L1-6	18	25	91.7	0.81	36.8	7.3	2	2.1	73
YE3-200L2-6	22	30	92.2	0.81	44.8	7.4	2	2.1	73
YE3-225M-6	30	40	92.9	0.83	59.1	6.9	2	2.1	74
YE3-250M-6	37	50	93.3	0.84	71.7	7.1	2	2.1	76
YE3-280S-6	45	60	93.7	0.85	85.8	7.3	2	2	78
YE3-280M-6	55	75	94.1	0.86	103.3	7.3	2	2	78
YE3-315S-6	75	100	94.6	0.84	143.4	6.6	2	2	83
YE3-315M-6	90	120	94.9	0.85	169.5	6.7	2	2	83
YE3-315L1-6	110	150	95.1	0.85	206.8	6.7	2	2	83
YE3-315L2-6	132	180	95.4	0.86	244.5	6.8	2	2	83

Package:

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
