5500 Watt AC Submersible Pump Inverter with MPPT 400-850V

Prod Model:	BSPI-5500W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Wave Form:	Pure Sine Wave
Apply For:	Water Pump and AC Submersible Pump
Power:	5500W

Product Description

5500 Watt AC Submersible Pump Inverter with MPPT 400-850V

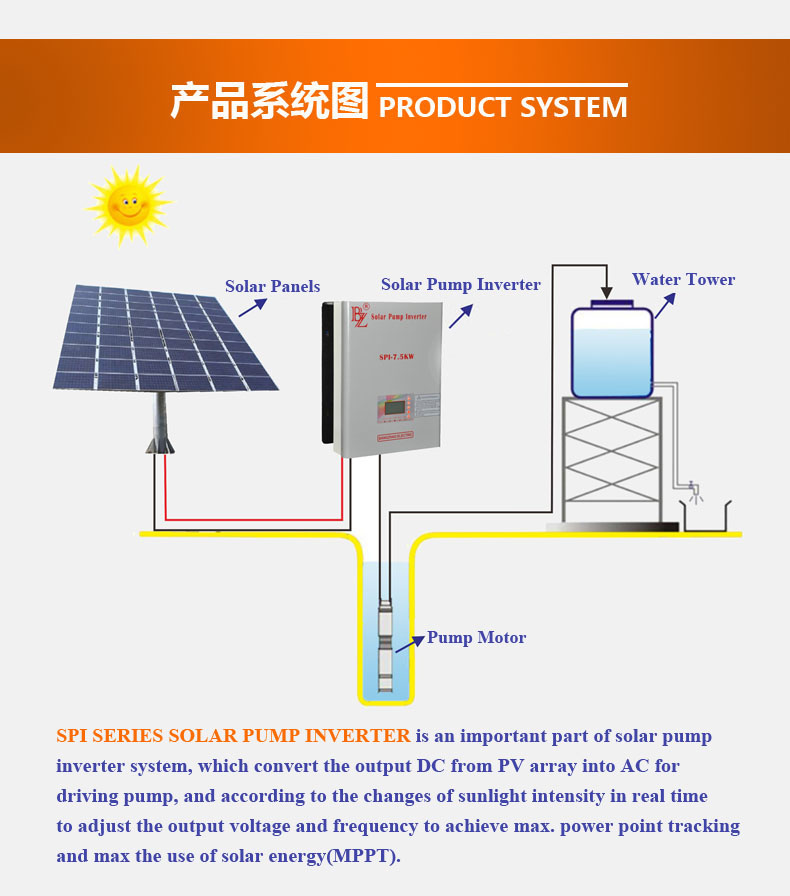

Solar Pumping System Introduction:

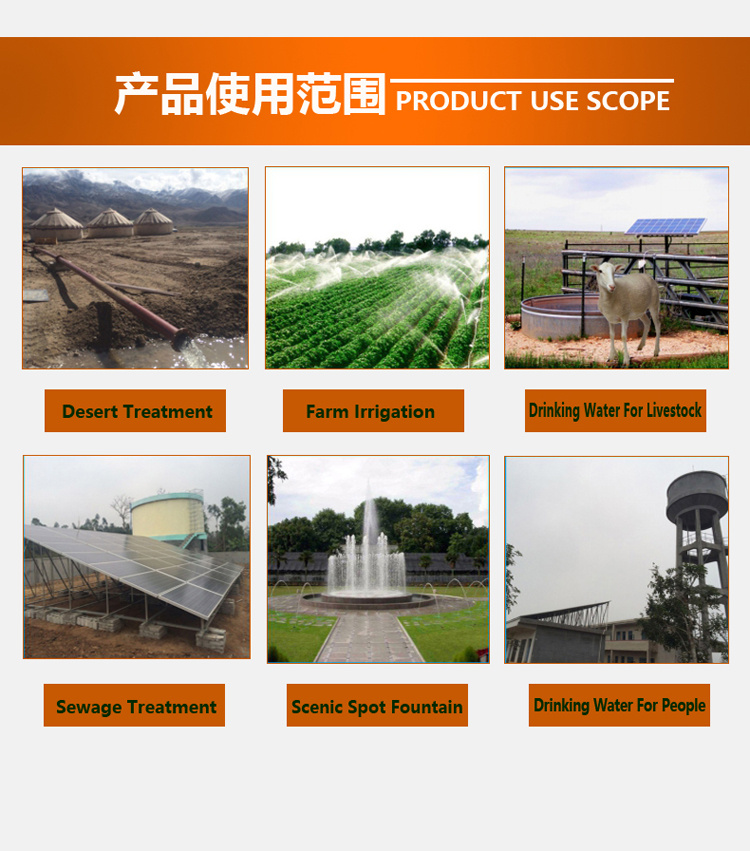

Bangzhao Solar pump system consists of the specialized pump inverter for PV, water pump and solar panels. This device widely used in domestic water, irrigation water, control of desert, animal husbandry, water supply for Sea Island, water treatment projects, etc. Water storage replaces battery and directly drives pumping, with high reliability, at the same time, it can reduce system cost and maintenance costs.


Product Features
1, Adopting the proposed dynamic VI maximum power point tracking (MPPT) control method & optimized SVPWM; fast response and stable operation; and the conversion efficiency achieves of 99.6%.
2, Adopting high-efficiency IPM (intelligentpower module) from Mitsubishiwith high reliability and high efficiency.
3, Designed with variable frequency driver (VFD), can be used in variable frequency speed regulation technology, greatly improves efficiency, and better to protect water pump and maximum utilizationof solar panels.
4, AC drive function. When is no sunshine, such as at night, solar pump inverter can connect to AC city power to work by manually if AC power is available.

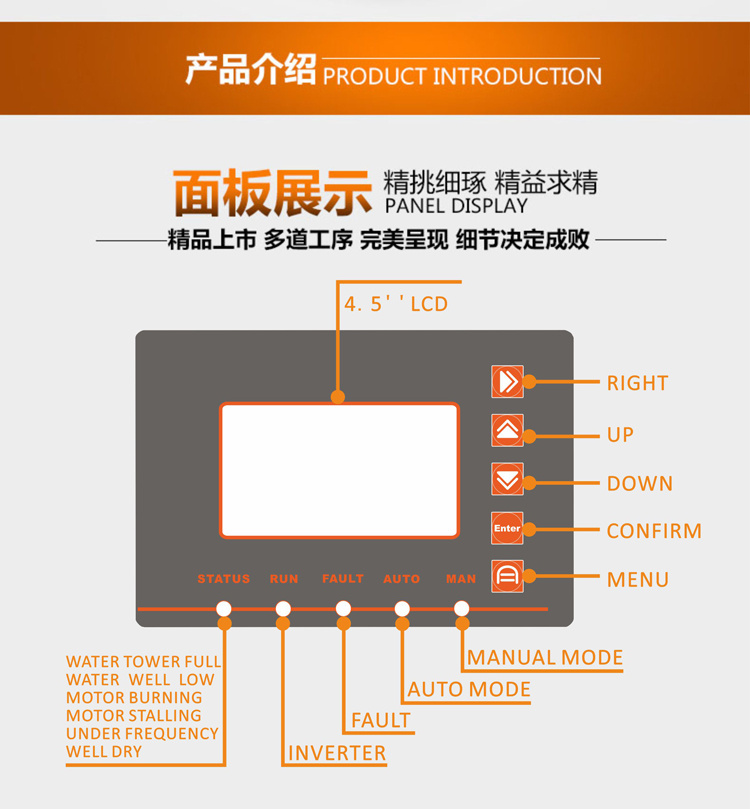

5, LCD display operating panel, can setting various parameters through LCD, easy to operation.

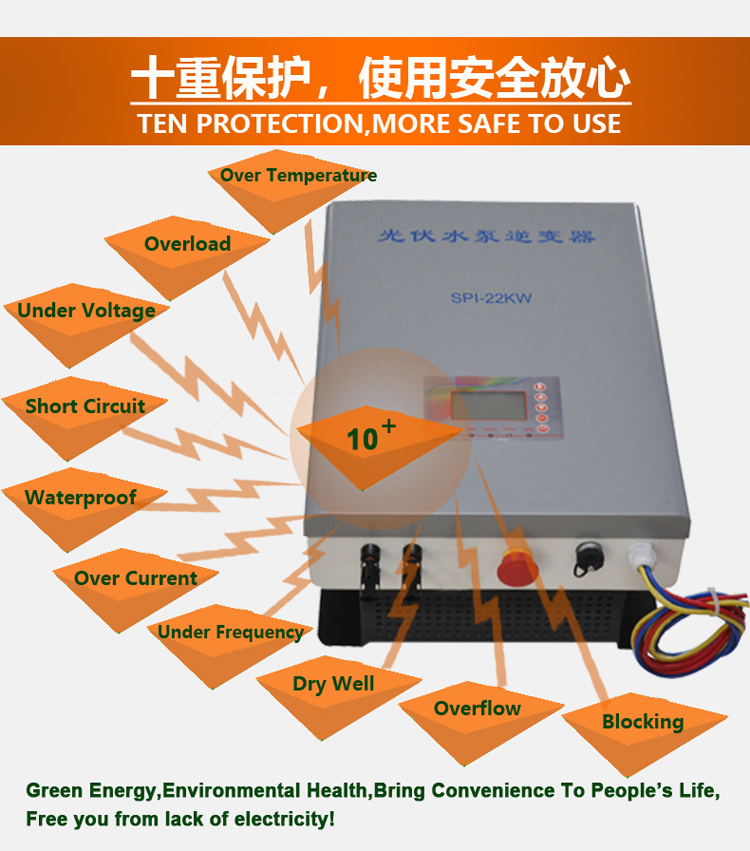

6, Complete protection function for PV input under voltage, PV input over voltage, input connection Reverse Polarity, DC over current, output, over load, short circuit, dry Well, overflow, dry running, and blocking protection.



Technical Specification



Model	Adapted pump motor		Max PV input power (KWP)	MPPT Tracking Voltage (V)	Max. DC input voltage (V)	Rated output current(A)	Output frequency (Hz)
	Rated power (kW)	Rated Voltage (V)
BSPI-750W	0.55~0.75	200~220	1	200~400	500	5	0~60
BSPI-1500W	1.1~1.5	200~220	1.85	200~400	500	7	0~60
BSPI-2200W	2.2	200~220	3	200~400	500	11	0~60
BSPI-3700W	3~3.7	380~440	4.5	400~650	850	9	0~60
BSPI-5500W	4~4.5	380~440	7	400~650	850	13	0~60
BSPI-7500W	7.5	380~440	9	400~650	850	18	0~60
BSPI-11KW	9.2~11	380~440	13	400~650	850	24	0~60
BSPI-15KW	13~15	380~440	18	400~650	850	30	0~60
BSPI-18KW	18.5	380~440	22	400~650	850	39	0~60
BSPI-22KW	22	380~440	25	400~650	850	45	0~60
BSPI-30KW	26~30	380~440	35	400~650	850	60	0~60
BSPI-37KW	37	380~440	45	400~650	850	75	0~60
BSPI-45KW	40~45	380~440	53	400~650	850	91	0~60
BSPI-55KW	55	380~440	65	400~650	850	112	0~60

Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.

Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,

Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection.

Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.

Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.

Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .

Q8. What is the warranty period ?
A. Normally 1 year ,if order quantity enough can be extended to 3 years.

Q 8.How about the lifetime?
A:The life time for inverterl is 15-20years.
