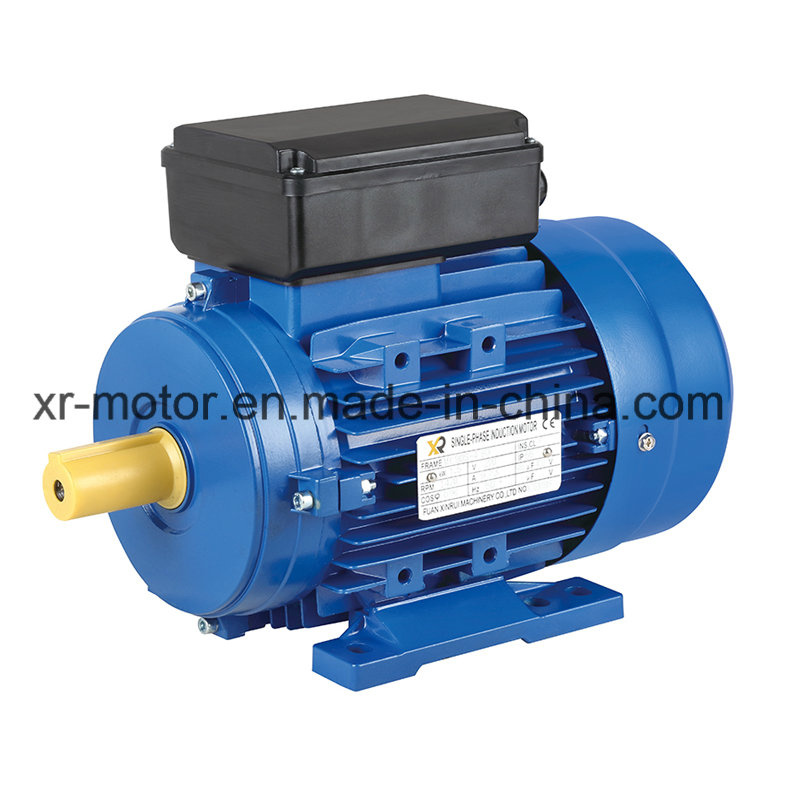

0.55kw/2poles/220V/My71 Single Phase Capacitor-Start Asynchronous Electric Induction Motor

Prod Model:	MY712-2
Working Type:	S1
Protection:	IP54/55
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Protection Type
Starting Mode:	Capacitor Running
Brand:	Xr Motor
Species:	My Single Phase
Certification:	Ce

Product Description

Frame size	56-100
Pole	2/4
Rated voltage	220V(230V)
Frequency	50Hz
Power	0.09kw-2.2Kw
Protection degree	IP54/IP55
Cooling method	IC411
Insulation class	F
Ambient Temperature	-15°C~40°C
Altitude	not exceed 1000 Meter
Working Duty	S1(Continuous)

ML/MC/MY SERIES SINGLE PHASE ASYNCHRONOUS MOTOR
1.Introduction:
ML/MC/MY series are single phase aluminum housing motors.
ML for  dual capacitors,MC for capacitor-start and MY for capacitor-run.
ML and MC series are with centrifugal switch, which are suitable for high start torque applications like air-  compressors.
While  MY series  is mainly for low start torque application such as fan and pump.
This series notors are known for low temperature-rise and low noise when running.
IP55/ Insulation F/B-level temperature rise/S1 duty/220(230)V/50Hz
Operating Conditions: ambient temperature -15~40 Celsius degree & altitude above sea level ≤1000M.

PERFORMANCE DATA

Model	output		Voltage	Speed	Current	Eff.	Power factor	Tstar/Tn	Tmax/Tn	Start current
	KW	HP	(V)	(r.p.m)	(A)	(%)	(cosΦ)
2 Poles/2800rpm/50HZ
MY631-2	0.18	0.25	220	2800	1.48	60	0.92	0.4	1.7	5
MY632-2	0.25	0.34	220	2800	1.96	63	0.92	0.4	1.7	7
MY711-2	0.37	0.5	220	2800	2.73	67	0.92	0.35	1.7	10
MY712-2	0.55	0.75	220	2800	3.88	70	0.92	0.35	1.7	15
MY801-2	0.75	1	220	2800	5.15	72	0.92	0.33	1.7	20
MY802-2	1.1	1.5	220	2800	7.02	75	0.95	0.33	1.7	30
MY90S-2	1.5	2	220	2800	9.44	76	0.95	0.3	1.7	45
MY90L-2	2.2	3	220	2800	13.67	77	0.95	0.3	1.7	65
4Poles/1400rpm/50HZ
MY631-4	0.12	0.16	220	1400	1.1	55	0.9	0.4	1.7	3.5
MY632-4	0.18	0.25	220	1400	1.62	56	0.9	0.4	1.7	5
MY711-4	0.25	0.34	220	1400	2.02	61	0.92	0.35	1.7	7
MY712-4	0.37	0.5	220	1400	2.95	62	0.92	0.35	1.7	10
MY801-4	0.55	0.75	220	1400	4.25	64	0.92	0.35	1.7	15
MY802-4	0.75	1	220	1400	5.45	68	0.92	0.32	1.7	20
MY90S-4	1.1	1.5	220	1400	7.45	71	0.95	0.32	1.7	30
MY90L-4	1.5	2	220	1400	9.83	73	0.95	0.3	1.7	45
