55V 1.1A 60W Ultra Power Gigabit Poe Injector for WLAN Devices

Name: 55V 1.1A 60W Ultra Power Gigabit Poe Injector for WLAN Devices
Brand: all-electronics-online.com
SKU: 836351935
Availability: InStock
Rating: 4.7 (56 reviews)

Price:	US $ 16.9-23.9/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PoE-55V-60W-AG
DC Output Voltage:	55V
DC Output Current:	1100mA
Data Rate:	10/100/1000Mbps
Interface:	2 X Rj-45 (Data-in LAN+Poe out)
Power Out Pins:	4-Pair Powering for Full Power Pins 1,2, 4,5(+) Pi
Operating Temp:	0 to 40°c
Power Input:	100/240VAC
AC Input Current:	1.5A Max
Standard:	IEEE802.3af/at Compatible
Output Type:	DC
Connection:	Desktop
Usage:	IP Camera, Wireless Ap, IP Phone
Bluetooth Standard:	N/a
Brand:	Fining

Product Description

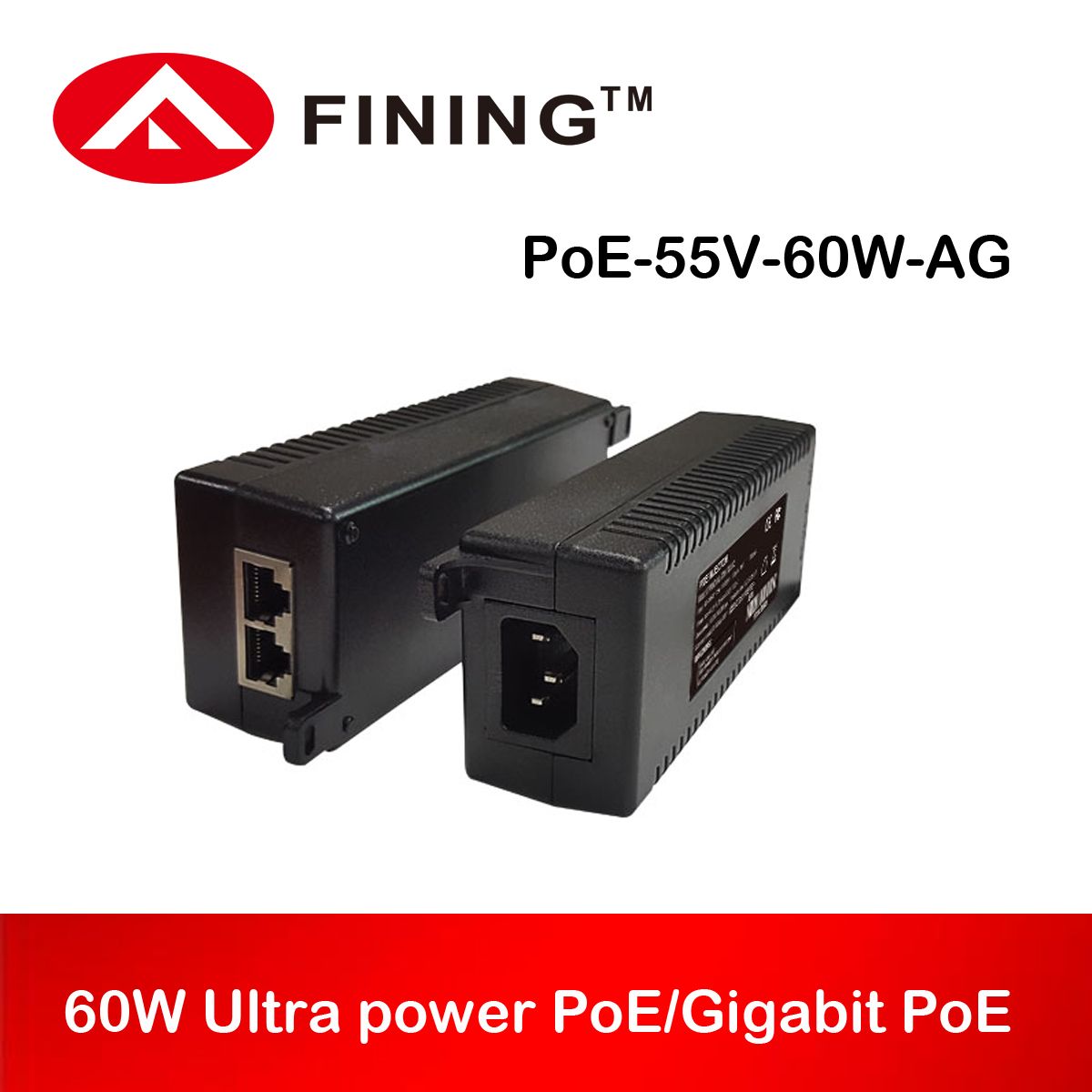

55V1.1A IEEE 802.3af/at PoE/PoE+ injector

The PoE injector can realize simultaneous delivery of device network data and power via one
Ethernet cable (Cat.5 or better). The output power of the PoE port is up to 60W, which is a single
port Midspan (PoE injector) offers a cost effective, compliant solution for IP phones, WLAN access
points, network cameras and other IP terminal installations.So, it is a perfect choice for you to reduce
the installation cost and improve the network performance.

Product Features:

Full 60W Ultra Power

Single Source 4 Pair Power Current Sharing

Diagnostic LEDs

Full Protection OCP, OVP

Gigabit Compatible

Power Over Ethernet

One PoE port to power connected devices for flexible network deployment

Plug and Play

Plastic case & power plug integrated design

Easy setup, no configuration required

60W power output

Product Specifications:

Data Rate:	10/100/1000Mbps
DC Output Voltage:	55VDC
DC Output Current:	1100mA
Interface:	2 X RJ-45 (Data-In LAN+PoE Out)
Power Out Pins:	V(+) on pins 1, 2, 4, 5; V(-) on pins 3, 6, 7, 8
Operating Temp:	0 to 40°C
Power Input:	100/240VAC
Output voltage regulation precision:	55VDC±5%
Loading regulation:	55VDC±1%
AC Input Current:	1.5A Max
Standard:	IEEE802.3af/at PoE+
UL and CE/FCC Certified

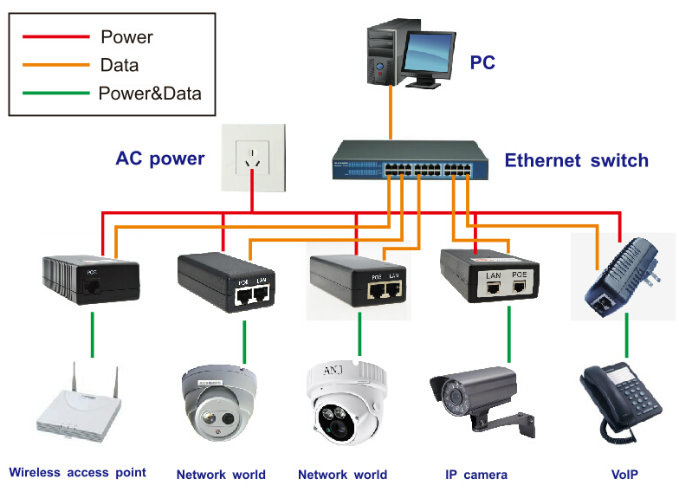

Product Applications:

IP Surveillance Industy:IP Network Camera
IP Phone:Desktop IP Phone &Wireless IP Phone
WLAN Devices: Wireless APS
Other Ethernet Devices

Our company supplies different kinds of power adapter products to global market with good quality and reasonable price, and very familiar with CE, FCC, UL, ETL standrads.

We have the following advantages:

1. Have cooperated with a lot of importers for more than 6 years.

2. Experenced in handling OEM orders.

3. Qiuck delivery time for decent orders.

4. Own designing team for new products development.

5. Factory audited by SGS, INTERTEK&WEINSPCTION.

6. Free samples could be provided.

We are power adapter manufacture and focusing on providing high efficiency and reliability power supplies. Our main products include PoE(Power over ehternet)products, custom AC/DC power adapters and LED Driver power supply. We can afford custom service according to your requirements.
