55W Max. Switch Mode Power Adapter with CE

Prod Model:	YS40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging:	PE Bag,White Box,Carton
Protection:	Hipot,Short Circuit,Overvoltage
Experience:	20 Years'experience
Quick Delievery:	15-25 Days
Warranty:	3 Years' Warranty
Usage:	Phone
Output Type:	AC or DC
Connection:	Desktop
Certification:	GS/CE/EMC/RoHS/Reach
Type:	OEM/ODM
Brand:	Yingjiao/OEM/ODM

Product Description

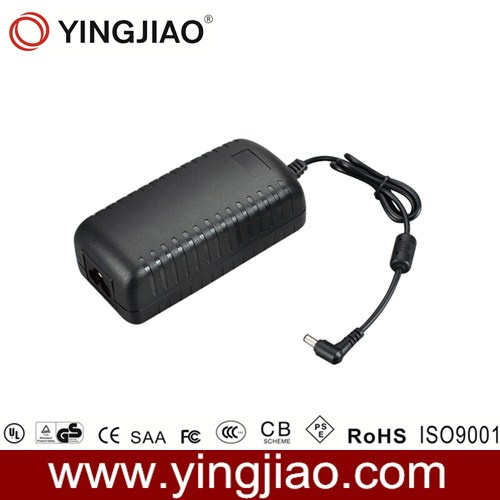

Switching Power Supply
Model: YS40-1 series
Universal Input: 100-240V AC 50/60Hz
Rated Power: 55W max.

Samples Output Specifications:

Output Specifications:



Model	Output Load Voltage (V)	Max. Load Current (A)
YS40-XX240	24	2.20
YS40-XX190	19	2.50
YS40-XX150	15	3.50
YS40-XX120	12	4.00
YS40-XX072	7.2	4.00

Features:

Safety: UL / CUL / TUV / GS / CE / CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:

Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:

Dimensions: 120mm (L)*60mm (W)*37mm (H)
N. W.: 300g
AC Input Plug: EU, US, UK, AUS, ZA, etc. Type optional
Output plug: Optional


Packaging & Delivery
Packaging Details:PE bag,White Box+Carton or as customer's requirement.
Delivery Detail:15-25 days after receipt of client deposit.

our services:
We can design and manufacture power supply products according to the various demands of different customers.Also,ODM/OEM are always highly welcome here.

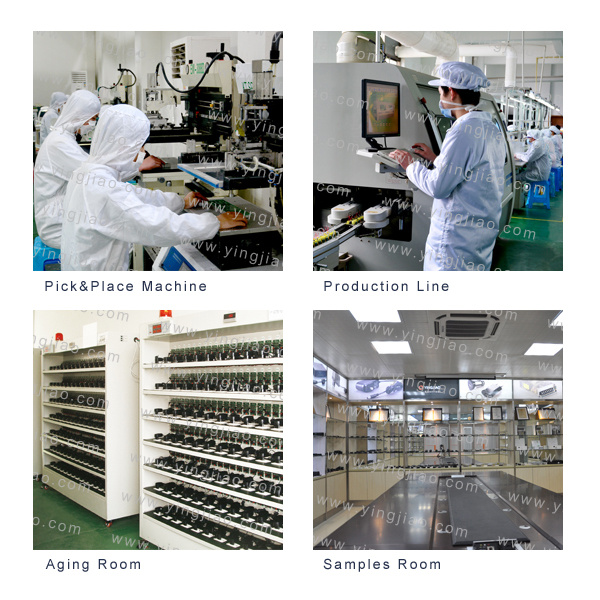

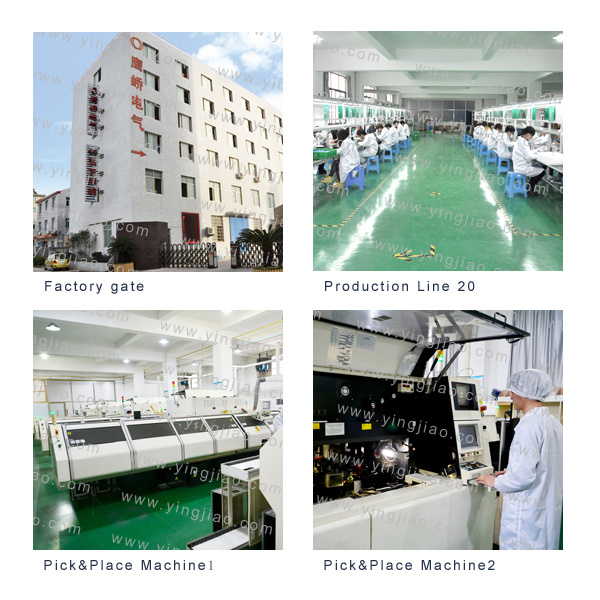

Company information:
Yingjiao Electrical Co.,Ltd., established in 1996 , is a leading manufacturer and exporter of switching&liner power adapters,tansformers,battery chargers,car chargers,power cords,etc.Being exported to over 50 countries such as and regions for 19 years,UK, US, France, Germany, Poland, Canada, South Africa, Spain,Italy,Argentina. Israel,Malaysia.And we have been ISO9001:2000 and SGS certified.
