56mm Low Rpm DC Gear Motor
| Price: |
US $ 20-30/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Product Name: |
Pg56zy58123000-1567K |
| Motor Type: |
Carbon-Brush Commutator |
| Gear Type: |
Straight Gearwheel, Planet Construction |
| Housing Material: |
Steel |
| Geartrain Material: |
Steel and Powdered Metal, POM Optional |
| Bearing At Output Shaft: |
Sleeve Bearing |
| Lubricant: |
Grease for High-Low Temperature, -62---+204 Degree |
| Backlash At No-Load: |
<1°, Min0.3° |
| OEM & ODM Service: |
Available |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Structure And Working Principle: |
Brush |
| Certification: |
ISO/Ts16949/Ce/Rhos |
| Brand: |
Custom |
Product Description

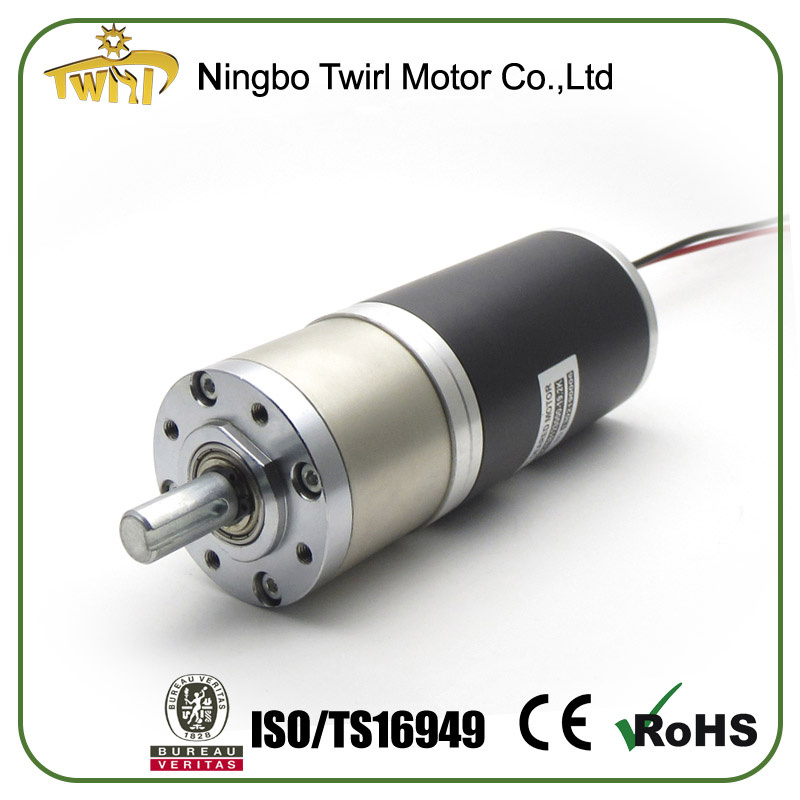

56mm low rpm dc gear motor
Please kindly let us know
1) what is your requirement to volt?
2) what is your requirement to rpm?
3) what is your requirement toTorque?
4) what is your requirement to Quantity.
Then we will provide solutions accordingly.
China manufacturer gear motor price With Professional Technical Support
We always provide customers with distinctive products:cost-effective, lower
noise, higher efficiency and stability, longer life and higher strength.| Basic information |
| Product name | PG56ZY58123000-1567K |
| Motor type | carbon-brush commutator |
| Gear type | Straight gearwheel,planet construction |
| Housing material | Steel |
| Geartrain material | Steel and Powdered Metal,POM optional |
| Bearing at output shaft | Ball bearing |
| Lubricant | Grease for high-low temperature, -62---+204 degree |
| Backlash at no-load | <1°,MIN0.3° |
| OEM & ODM Service | Available |
| Certificate | CE,ROHS,ISO/TS16949 |

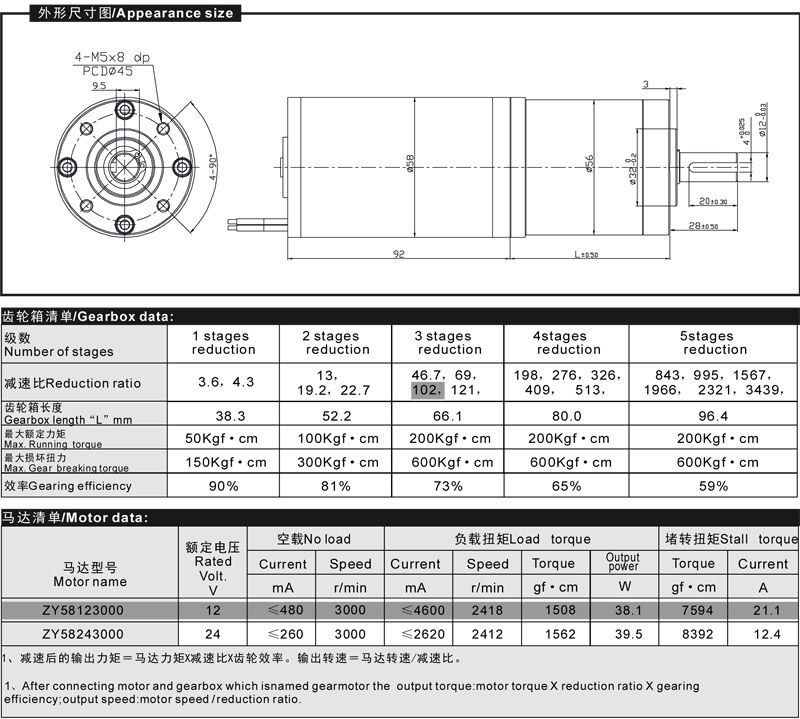

| An exact model of gearbox and motor combination |
| Product seires | PG56ZY58 series |
| An exact Model NO. | PG56ZY58 12 3000-1567K |
| Motor Voltage(VDC) | 12 |
| Motor no load speed(rpm) | 3000 |
| Gearbox reduction ratio | 1567K |
| Gearmotor no load current(A) | <1.200 |
| Gearmotor no load speed(rpm) | 1.9+/-10% |
| Gearmotor rated load torque(kgf.cm) | 200 |
| Gearmotor rated current(A) | <6.500 |
| Gearmotor rated load speed(rpm) | 1.4+/-10% |
| Noise (DB) | <60DB |
| Lifetime | 1000+ hours (varies by application) |
| Rotation | CW/CCW reversible |
