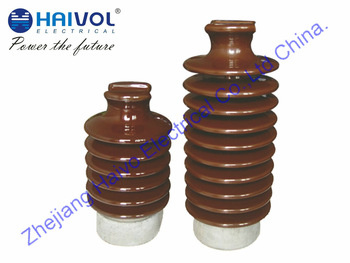

57 -21 Post Ceramic Insulators (ANSI)

Name: 57 -21 Post Ceramic Insulators (ANSI)
Brand: all-electronics-online.com
SKU: 825996895
Availability: InStock
Rating: 4.4 (32 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	57 series
Porcelain Insulators:	Strain Insulator
Application:	High-voltage
Material:	Porcelain
Structure:	Strain Insulator
Type:	B Type Insulator
Color:	Brown
Brand:	Haivol

Product Description

Specifications
57 -21 Post Ceramic Insulators(ANSI)
1.Standards:ANSI 57series
2.Certificates:ISO9001:2008
3.best price and short delively

57 -21 Post Ceramic Insulators(ANSI)
1)Material: Porcelain
2)ANSI class: 57-21, 57-22, 57-23, 57-24, 57-25, 57-11, 57-12, 57-13, 57-14, 57-15
•Specifications:

Cat/NO	A1034	A1035	A1036	A1037	A1038	A1039	A1040	A1041	A1042	A1043
ClassANSI	57-21	57-22	57-23	57-24	57-25	57-11	57-12	57-13	57-14	57-15
Creepage distance (mm)	356	559	737	1015	1145	356	559	737	1015	1145
Dry arcing distance(mm)	165	241	311	368	438	165	241	311	368	438
Cantilever strength(kn)	12.5	12.5	12.5	12.5	12.5	12.5	171	12.5	12.5	12.5
Low-frequency dry flashover (kv)	80	110	125	150	175	80	110	125	150	175
Low frequency wet flashover(kv)	70	100	115	135	160	60	85	100	125	150
Critical impulse flashover ,Pos(kv)	130	180	210	255	290	130	180	210	225	290
Critical impulse flashover ,Neg(kv)	155	205	260	340	380	155	205	260	340	380
Test voltage to ground(kv)	15	22	30	44	44	15	22	30	44	44
Maximum RIV at 1000KHz(uV)1000KHZ	100	100	200	200	200	100	100	200	200	200
Net weight ,approx.(kg)	7.5	10.5	12.7	16.8	19.5	6.8	10	11.8	15.9	18.6
Number in standard package	6	.3	3	2	2	6	3	3	2	2

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

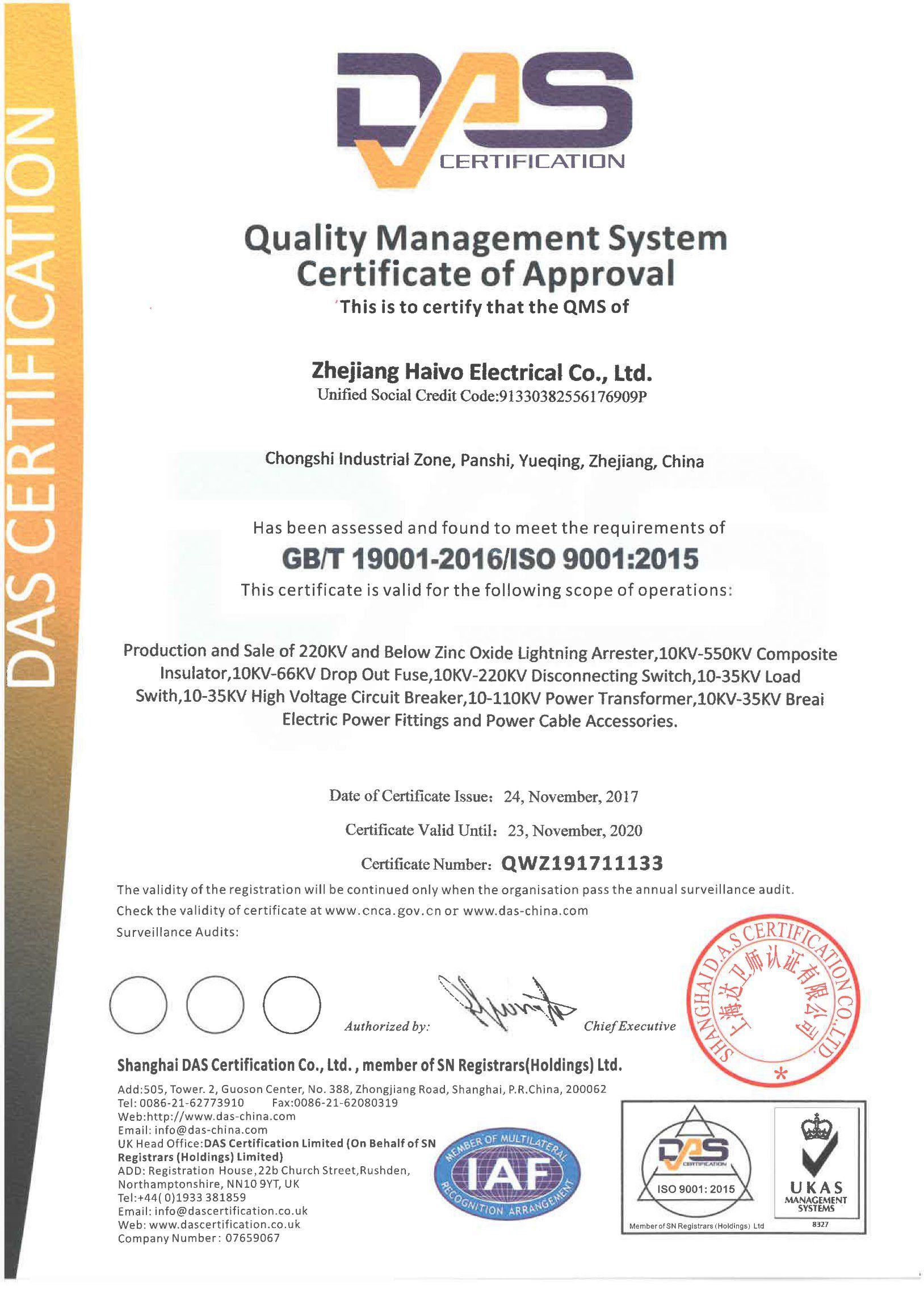

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
