| Prod Model: |
57BYGH507 Series |
| Motor Series: |
57 Bygh |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
27mm (1.06 in) |
| Shaft: |
Plain Shaft |
| Connectors: |
Connectors, Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three-Phase Six-Step |
| Type: |
Magnetic-Electric |
| Brand: |
Shengyang |
Product Description

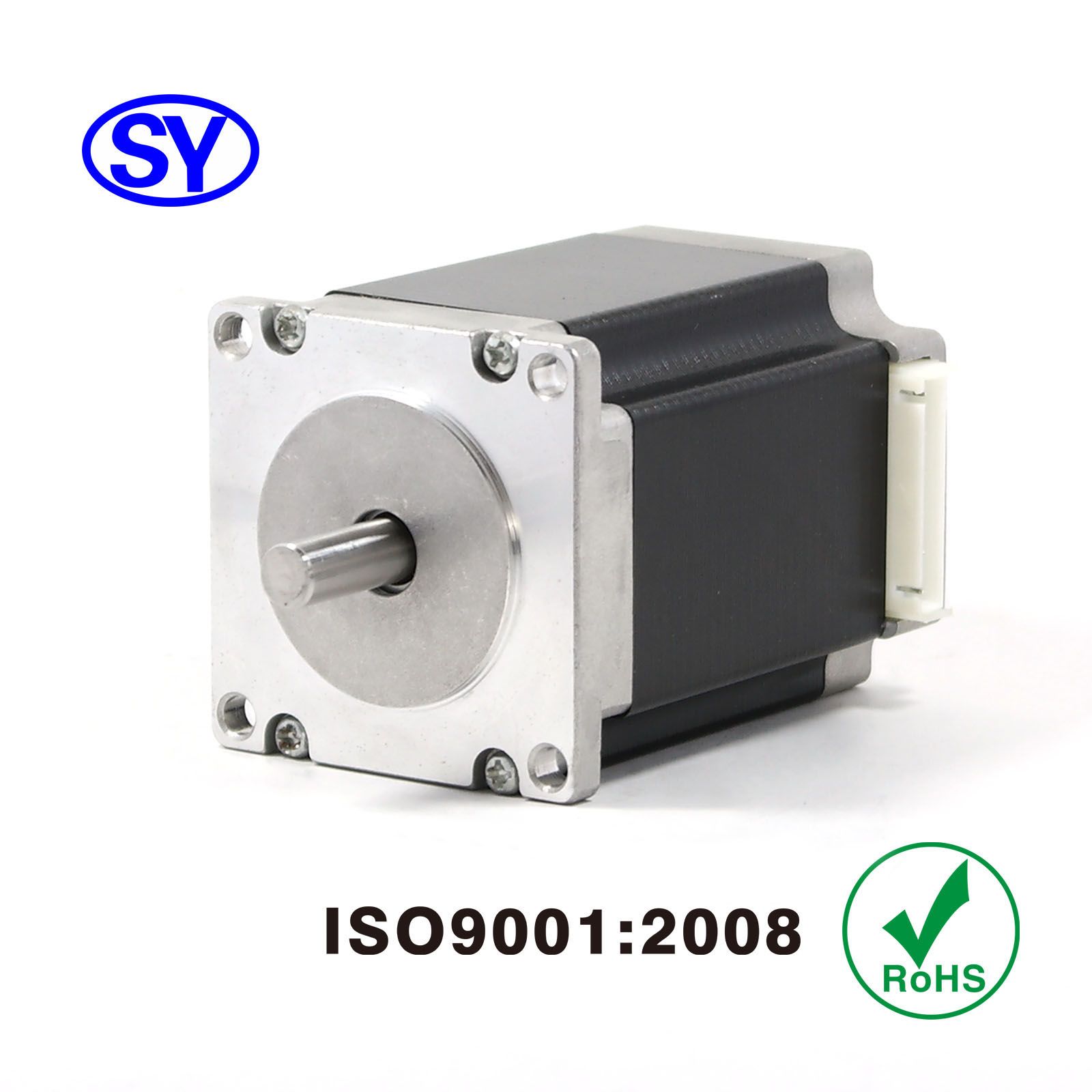

57mm High Quality Stepper Electrical Motor for CNC Mill Lathe
Features:
High Torque
High Accuracy
Smooth Movement
Products Description
1. Specifications:
Shaft End Length: 27 mm (1.08 in)
Shaft: Plain Shaft
Connectors: Connectors, Lead Wires
Step Angle: 1.8°± 5% full step, no load
Ambient Temperature: -24 ºC- +60 ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100 mΩ 500 V DC
Dielectric Strength: 600 V AC for 1S, leakage current less than 1 mA
2. Note:
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you soon for your reference.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, our raw materials comply with RoHS, all of the derived motors can be customized, welcome to contact us for details.
Contacts: Ms Land Mo
Mobile: (+86) 134 2576 8350
shengyangmotor.en.made-in-china.com
Series
&
Length | Model
Number | Holding
Torque | Rated Voltage /
Rated Current | Resistance
per Phase | Inductance
per Phase |
| mNm oz-in | A | ohm | Mh |
57BYGH0
31 mm
(1.23 in) | 57BYGH010-B-27 | 840 119 | 1.2 | 10 | 23 |
57BYGH1
52 mm
(2.05 in) | 57BYGH103-1 | 850 120 | 8/1.0 | 8 | 17 |
57BYGH2
56 mm
(2.21 in) | 57BYGH220-B-21 | 1240 175 | 2 | 2.4 | 5.8 |
57BYGH3
49 mm
(1.93 in) | 57BYGH301-A-27 | 1020 145 | 0.8 | 10 | 23 |
57BYGH4
49mm
(1.93 in) | 57BYGH401-B-27 | 900 128 | 0.6 | 8 | 33 |
57BYGH5
77 mm
(3.04 in) | 57BYGH510-C-31 | 930 132 | 1.2 | 0.76 | 3.3 |
57BYGH6
65 mm
(2.56 in) | 57BYGH601-C-22 | 1260 178 | 1.5 | 3.5 | 5.7 |
57BYGH7
98 mm
(3.86 in) | 57BYGH701-C-31 | 1380 195 | 1.5 | 1 | 3 |
57BYGH9
46 mm
(1.82 in) | 57BYGH910-B-27 | 1480 210 | 2 | 8.5 | 26 |
More details or any new inquiry, welcome to contact us freely.
