| Prod Model: |
57BYGH510Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Series: |
57 Bygh |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
31mm (1.22 in) |
| Shaft: |
D-Cut Shaft |
| Connectors: |
Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
2 Phase-8 Parts |
| Brand: |
Shengyang |
Product Description

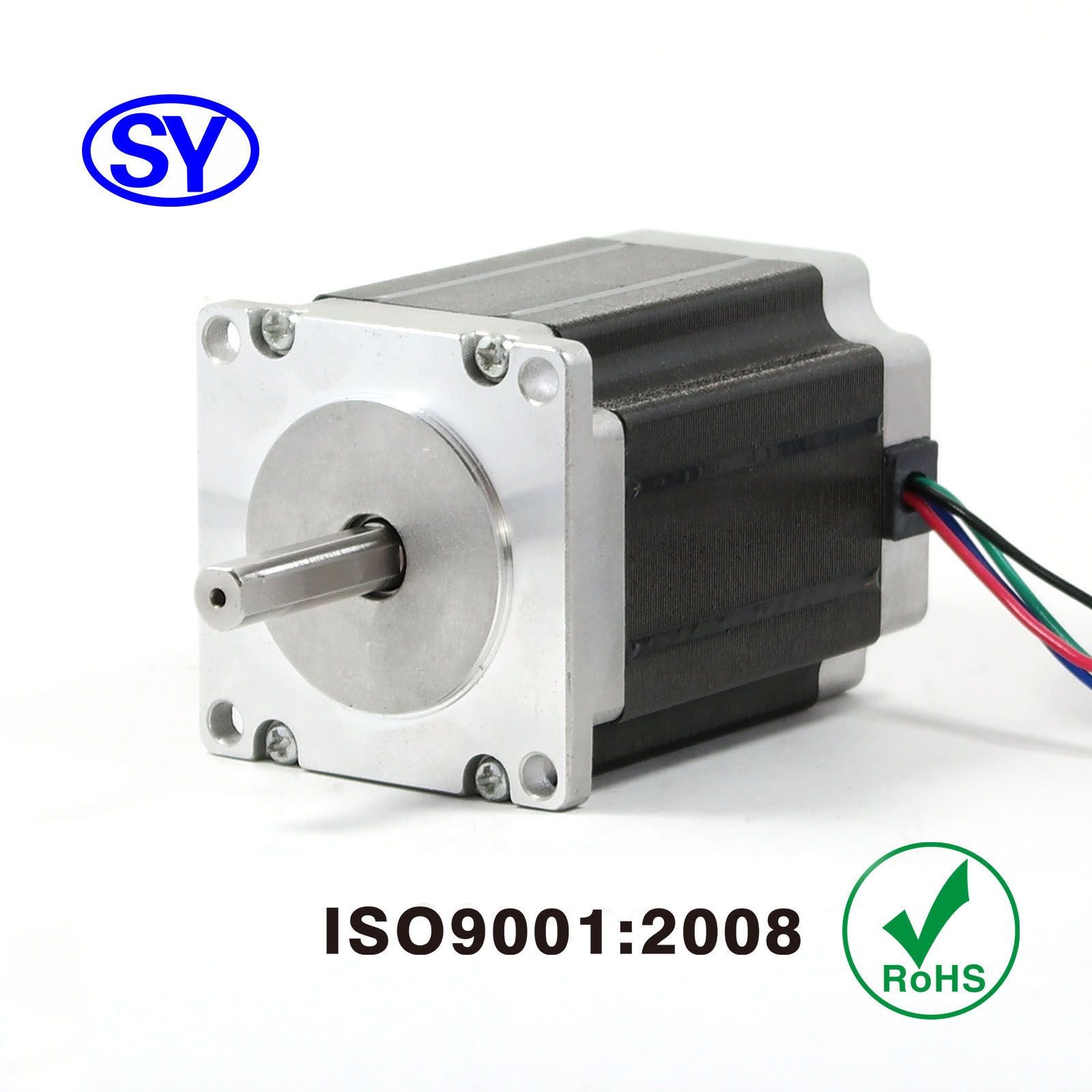

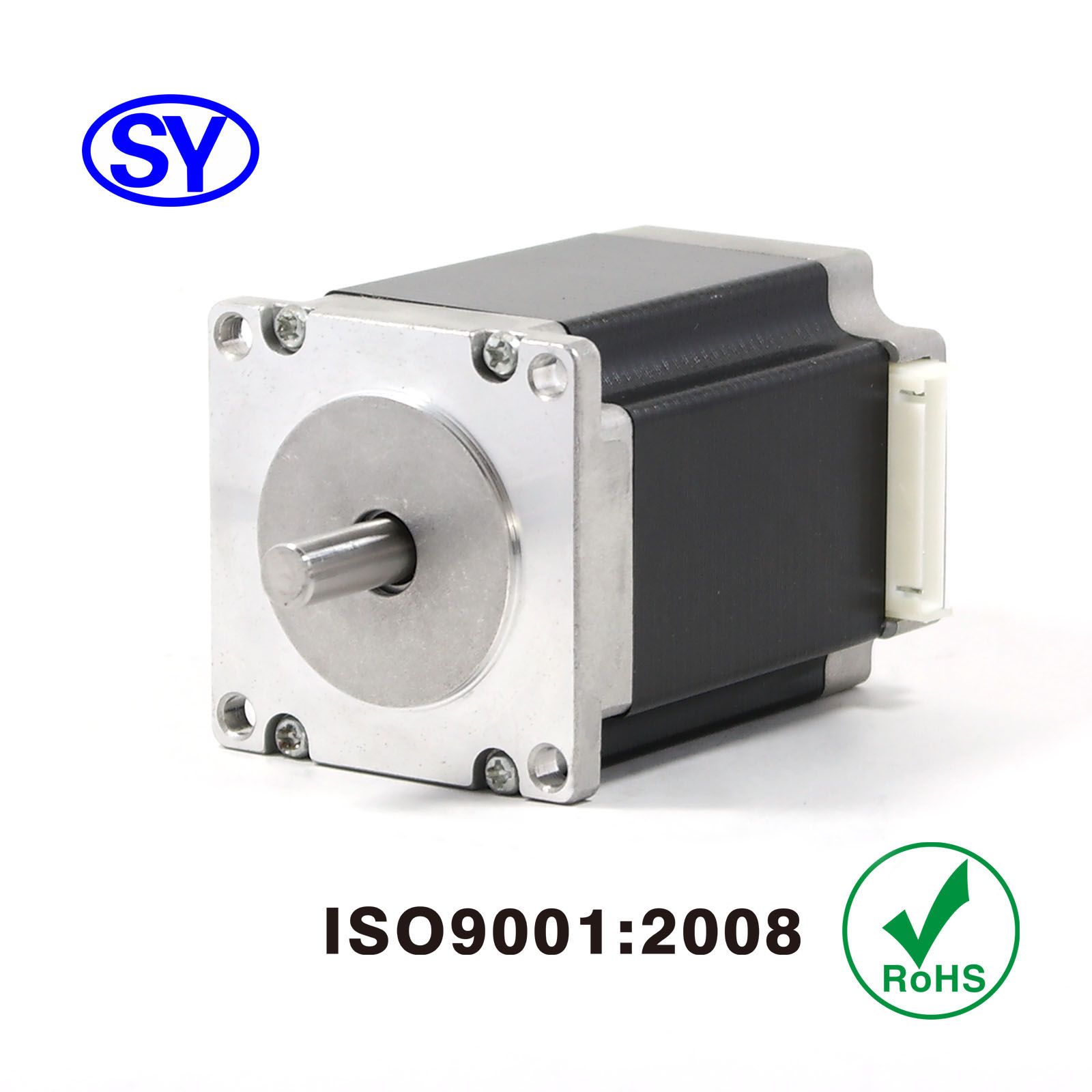

57 MM (NEMA 23) Schrittmotor for CNC
Features:
High Torque
High Accuracy
Smooth Movement
Product Description
2. Specifications:
Motor Model: 57BYGH510-C-31
Holding Torque: 930 mNm (131.69 oz-in)
Resistance per Phase: 0.76 ohm
Inductance per Phase: 3.3 mH
Rated Current: 1.2 A
Step Angle: 1.8° ± 5% full step, no load
Ambient Temperature: -24ºC - +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ±10%
Insulation Resistance: Larger than 100 mΩ 500V DC
Dielectric Strength: 600 V AC for 1 S, leakage current less than 1 mA
2. Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us to get the last competitive price.
Pricing is decided by the motor's performance and parameters, more important by you requirments, contact us and get the latest the price list.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of the derived motors can be customized, contact us and talk details.
Contacts: Kanix Ik
Mobile: (+86) 1552 1524 907
shengyangmotor.en.made-in-china.com
Motor Series
&
Length | Motor Model | Holding Torque | Shaft
Length | Resistance
per
Phase | Inductance
per
Phase | Rated Voltage/
Rated Current |
| mNm oz-in | mm in | ohm | mH | V / A |
57BYGH0
31 mm
(1.23 in) | 57BYGH010-B-27 | 840 119 | 27 1.07 | 10 | 23 | 1.2 |
57BYGH1
52 mm
(2.05 in) | 57BYGH103-1 | 850 120 | 24 0.95 | 8 | 17 | 8/1.0 |
57BYGH2
56 mm
(2.21 in) | 57BYGH220-B-21 | 1240 175 | 21 0.83 | 2.4 | 5.8 | 2 |
57BYGH3
49 mm
(1.93 in) | 57BYGH301-A-27 | 1020 145 | 27 1.07 | 10 | 23 | 0.8 |
57BYGH4
49mm
(1.93 in) | 57BYGH401-B-27 | 900 128 | 27 1.07 | 8 | 33 | 0.6 |
57BYGH5
77 mm
(3.04 in) | 57BYGH510-C-31 | 930 132 | 31 1.23 | 0.76 | 3.3 | 1.2 |
57BYGH6
65 mm
(2.56 in) | 57BYGH601-C-22 | 1260 178 | 22 0.87 | 3.5 | 5.7 | 1.5 |
57BYGH7
98 mm
(3.86 in) | 57BYGH701-C-31 | 1380 195 | 31 1.23 | 1 | 3 | 1.5 |
57BYGH9
46 mm
(1.82 in) | 57BYGH910-B-27 | 1480 210 | 27 1.07 | 8.5 | 26 | 2 |
