| Prod Model: |
57 BYGH Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Series: |
57 Bygh |
| Step Angle: |
1.8 Degree |
| Shaft: |
D-Cut Shaft(Customizable) |
| Connectors: |
Plug-in, Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Type: |
Magnetic-Electric |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three-Phase Six-Step |
| Brand: |
Shengyang |
Product Description

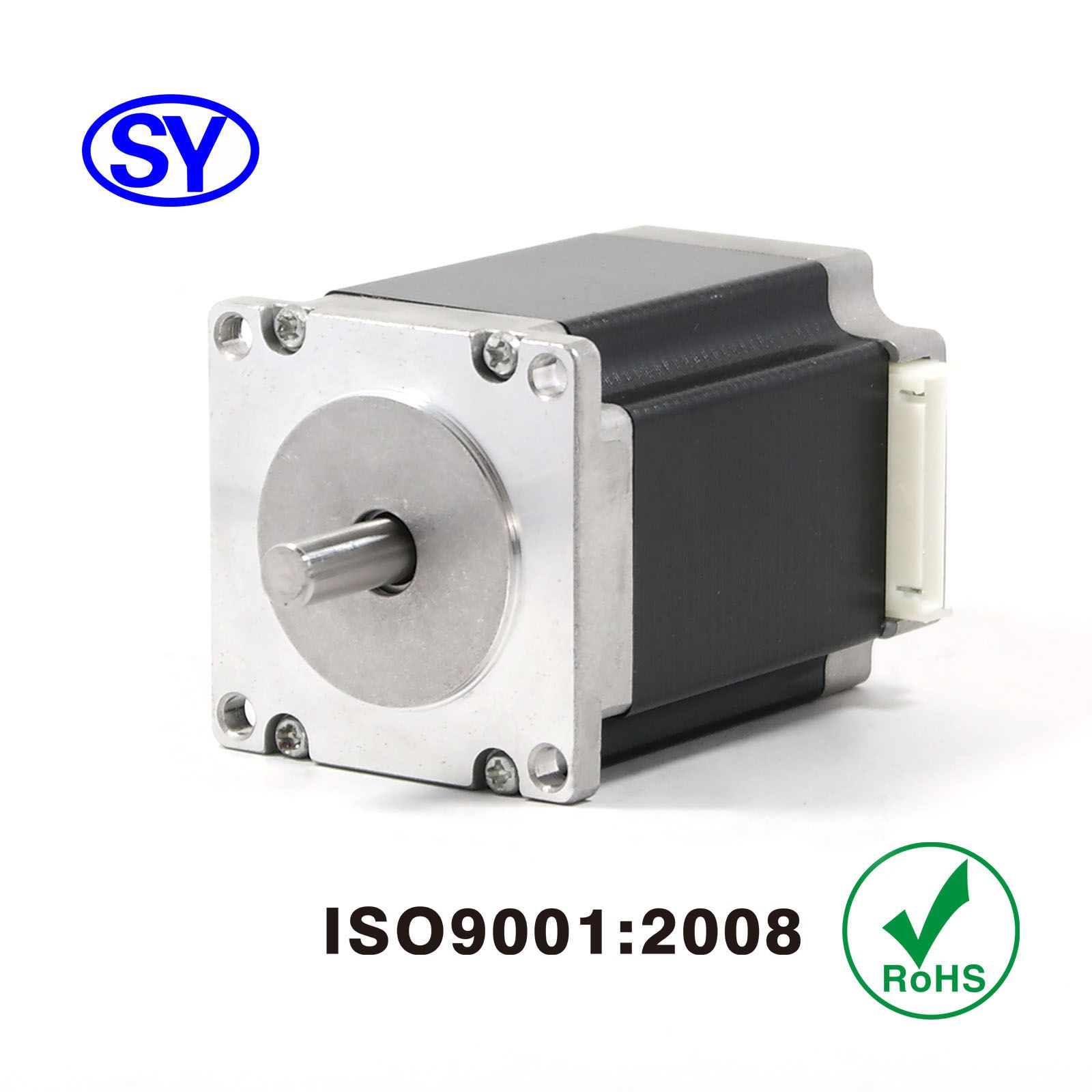

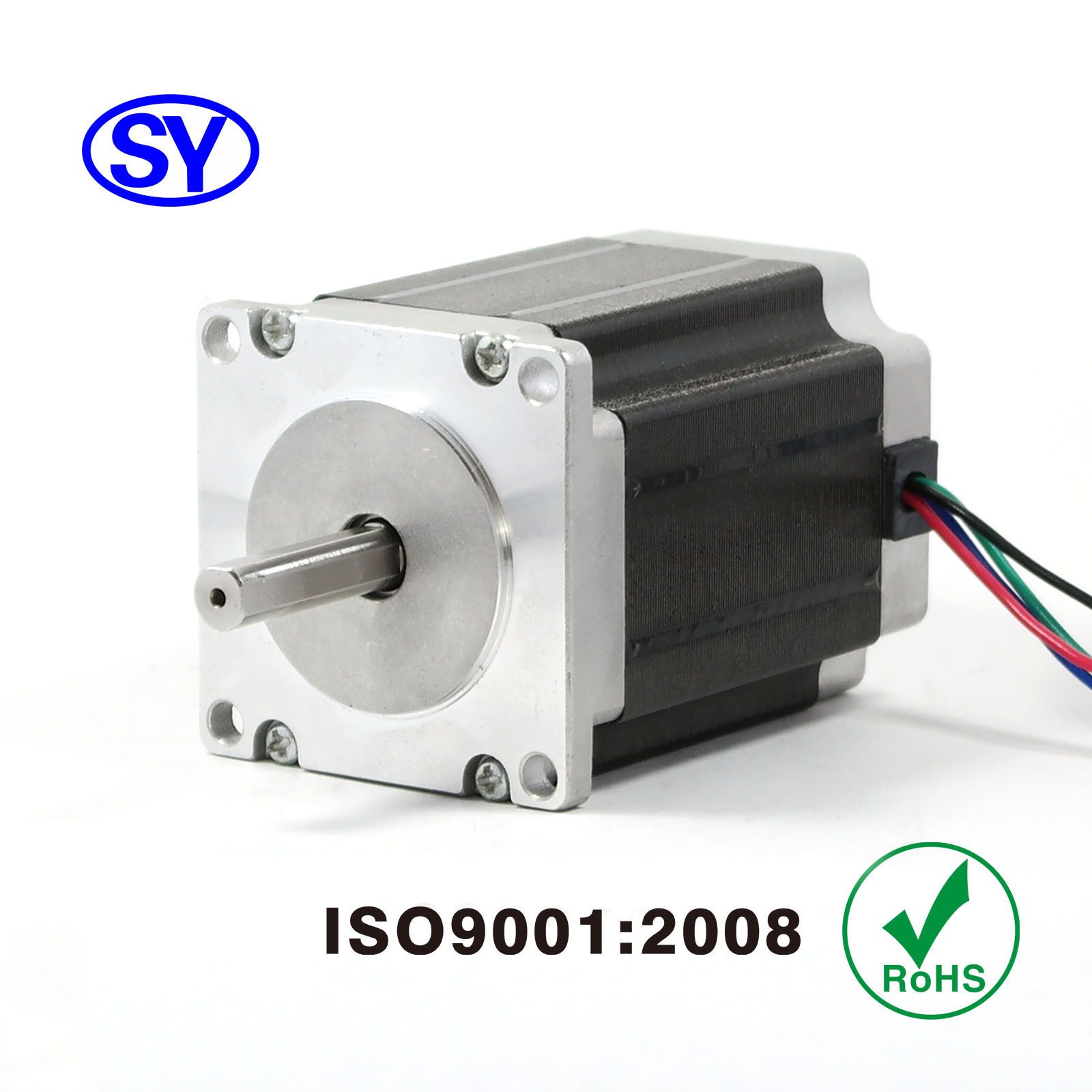

NEMA 8, 11, 14, 16, 17, 23, 24, 34 High Performance Stepper Electrical Motor with Competitive price
Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included.
The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers for industry and our life.
All the derived products of us can be customized for your needs.
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the best price will be sent to you soon for your reference
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, raw materials comply with RoHS, all products can be customized, welcome to contact us for more detail.
Contacts: Mr. Kanix Ik
Mobile: (+86) 1552 1524 907
Homepage: shengyangmotor.en.made-in-china.com
Series
&
Length |
Model
Number |
Holding
Torque |
Rated Voltage /
Rated Current |
Resistance
per Phase |
Inductance
per Phase |
|
mNm oz-in |
A |
ohm |
Mh |
39BYG0
20mm
(0.79in) |
39BYG001 |
90 12.74 |
0.4 |
28 |
19 |
39BYG1
22mm
(0.87in) |
39BYG103 |
120 17 |
0.4 |
22 |
32 |
39BYG9
23mm
(0.91in) |
39BYG902 |
180 25.49 |
0.4 |
26 |
40 |
39BYG2
25mm
(0.98in) |
39BYG205 |
200 28.32 |
0.4 |
34 |
58 |
39BYG3
34mm
(1.34in) |
39BYG308 |
130 18.4 |
0.28 |
44 |
25 |
42BYGH0
26mm
(1.02 in.) |
42BYGH001 |
120 17 |
0.3 |
42 |
48 |
|
42BYGH007 |
160 22.66 |
0.4 |
10.4 |
14 |
42BYGH1
33mm
(1.30 in.) |
42BYGH104 |
275 38.94 |
0.4 |
40 |
35 |
|
42BYGH107 |
250 35.40 |
0.4 |
22 |
30 |
42BYGH2
34mm
(1.34 in.) |
42BYGH202 |
220 31.15 |
0.5 |
30 |
37 |
42BYGH3
40mm
(1.57in) |
42BYGH312 |
530 75.05 |
0.6 |
26 |
48 |
42BYGH4
40mm
(1.57 in.) |
42BYGH412 |
420 59.47 |
1 |
6.7 |
9.8 |
|
42BYGH413 |
300 42.48 |
1 |
3.5 |
5 |
42BYGH11
34mm
(1.34 in.) |
42BYGH1101 |
240 33.98 |
0.4 |
30 |
45 |
|
42BYGH1102 |
280 39.65 |
0.84 |
5.75 |
9.3 |
57BYGH0
31 mm
(1.23 in) |
57BYGH010 |
840 119 |
1.2 |
10 |
23 |
57BYGH1
52 mm
(2.05 in) |
57BYGH103 |
850 120 |
8/1.0 |
8 |
17 |
57BYGH2
56 mm
(2.21 in) |
57BYGH220 |
1240 175 |
2 |
2.4 |
5.8 |
57BYGH3
49 mm
(1.93 in) |
57BYGH301 |
1020 145 |
0.8 |
10 |
23 |
57BYGH4
49mm
(1.93 in) |
57BYGH401 |
900 128 |
0.6 |
8 |
33 |
57BYGH5
77 mm
(3.04 in) |
57BYGH510 |
930 132 |
1.2 |
0.76 |
3.3 |
57BYGH6
65 mm
(2.56 in) |
57BYGH601 |
1260 178 |
1.5 |
3.5 |
5.7 |
57BYGH7
98 mm
(3.86 in) |
57BYGH701 |
1380 195 |
1.5 |
1 |
3 |
57BYGH9
46 mm
(1.82 in) |
57BYGH910 |
1480 210 |
2 |
8.5 |
26 |
60BYGC0
30 mm
(1.18 in) |
60BYGC001 |
450 63.72 |
1.5 |
5.5 |
6 |
60BYGC1
54 mm
(2.13 in) |
60BYGC901 |
620 87.89 |
1.2 |
5.5 |
9 |
60BYGC2
54 mm
(2.13 in) |
60BYGC201 |
800 113.28 |
1.5 |
6 |
12 |
60BYG1
54 mm
(2.13 in) |
60BYG103 |
900 127.44 |
1.5 |
6.8 |
11 |
60BYGC3
58 mm
(2.28 in) |
60BYGC301 |
1080 152.93 |
1.5 |
6.4 |
14 |
60BYGC4
49 mm
(1.93 in) |
60BYGC404 |
780 110.45 |
1.5 |
5 |
9 |
60BYGC5
76 mm
(2.99 in) |
60BYGC501 |
1550 219.48 |
1.5 |
5.5 |
10.7 |
60BYGC6
79mm
(3.11 in) |
60BYGC601 |
1500 212.40 |
5.8\3.0 |
1.05\2.1 |
2.4\6.8 |
60BYGC7
30 mm
(1.18 in) |
60BYGC701 |
530 75.05 |
2 |
4.3 |
6 |
86BYGH0
68mm
(2.64in) |
86BGYH002 |
2500 354 |
3.8 |
0.8 |
6 |
86BYGH1
77mm
(3.03in) |
86BYGH102 |
411.6 58.28 |
5 |
0.65 |
4.5 |
86BYGH2
100mm
3.94in |
86BYGH204 |
4900 694 |
5.2 |
0.43 |
2.7 |
86BYGC0
67mm
(2.64in) |
86BYGC001 |
2260 320 |
1.75\1.2 |
4.25\8.5 |
11\31 |
86BYGC4
127mm
(5in) |
86BYGC401 |
6780 960 |
5.2\3 |
2.75\5.5 |
12\36
|
Established in 2011, Shengyang Motor Co., Ltd is a professional manufacturer which produces, researches, develops, and sells various of stepping motors. It is well located in Zhongshan, Guangdong--in the Pearl River Delta where is very beautiful and wealthy with convenient communication.
Shengyang Motor constantly focuses on technological specification, unswervingly insists in providing high-quality products and best service and keeps firmly the service concept: To satisfy our clients is our eternal tenet. Shengyang Motor Co., Ltd has the advanced production facility, production line, quality controlled system and testing equipment for stepping motor.
Especially in producing, developing and selling precise motors, Shengyang Motor has developed a wide range of products which are widely used in laser light, stage lighting, printer, currency detector, industry control, monitors and so on. Being a supplier of professional precise stepping motor facing the nation and viewing the world with annual capacity more than 4, 000, 000 sets, Shengyang Motor enhances the quality of products constantly by absorbing the experience of motor manufacturer both at home and abroad, and introducing the latest technology and equipment to ensure the constant development of the company. Apart from providing standard products (following the national standard or international standard), we can also customize products according to the requirements of customers.
With high-quality products and supports from a large number of suppliers and customers, Shengyang Motor won great credit in stepping industry and is becoming a famous brand in the field.
Shengyang Motor insists on consolidating its good reputation by stabilizing quality and reacting quickly to meet promises that we make to all customers.
As a young, energetic, practice and creative team, Shengyang Motor emphasizes the service idea of thinking all customers' profit firstly and highlights making the best cost performance programme. Shengyang Motor unswervingly insists the principle of "humanist, introducing and optimizing technology, stabling quality, moving customer, base on dometic and following the world" to serve customers all over the world.
