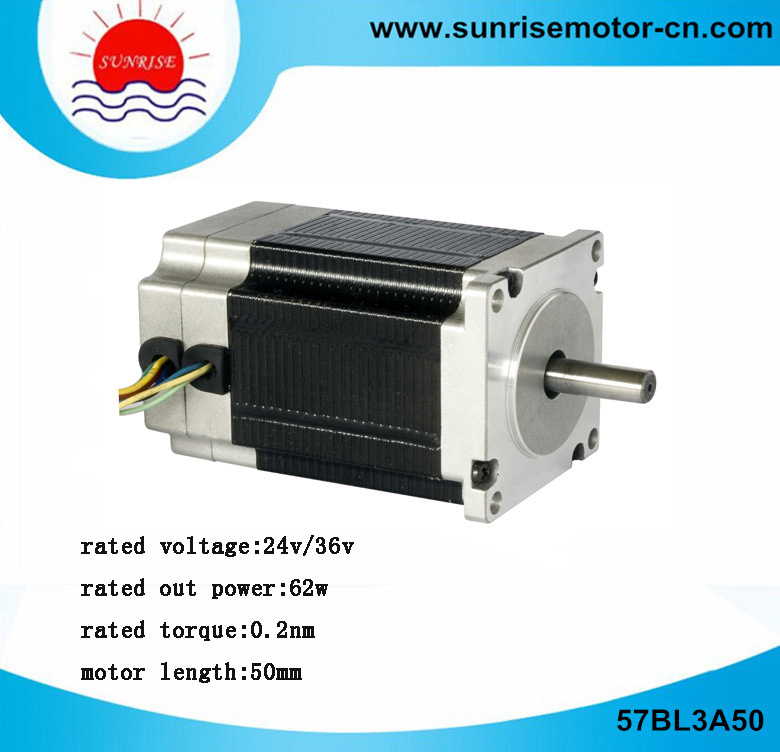

57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor

Name: 57bl3a50 BLDC Motor/DC Motor Brushless DC Motor BLDC Motor
Brand: all-electronics-online.com
SKU: 752571125
Availability: InStock
Rating: 4.4 (131 reviews)

Price:	US $ 35.65-41.13/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57BL3A50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	57bl3a50
Voltage:	24VDC/36VDC
Power:	62W
Speed:	3000rpm
Application:	Household Appliances
Operating Speed:	Adjust Speed
Structure And Working Principle:	Brushless
Brand:	Sunrise Motor

Product Description

Customer First Service Foremost Quality Guarantee

			57BL3A50		57BL3A70		57BL3A90
Specification		Unit	-A	-B	-B	-C	-B	-C
Rated voltage	U	V	+24	+36	+36	+48	+36	+48
Rated out power	P out	W	62	62	125	125	185	185
Rated speed	n N	rpm	3000
Rated current	I N	A	3.3	2.2	4.4	3.2	6.5	4.8
Rated torque	T N	N.m	0.2	0.2	0.4	0.4	0.6	0.6
Peak current	I P	A	10.5	6.5	13.4	9.8	20	14.9
Peak torque	T p	N.m	0.58	0.6	1.29	1.31	1.9	2
Voltage constant	K E	V/ Krpm	6.23	9.5	9.47	12.7	9.45	12.6
Torque constant	K T	N.m/A	0.069	0.11	0.095	0.134	0.097	0.136
Rotor inertia	J	Kg.cm 2	0.3	0.3	0.6	0.6	0.9	0.9
Number of poles	N P		8	8	8	8	8	8
Winding class			B	B	B	B	B	B
Motor weight		Kg	0.65	0.65	1.0	1.0	1.4	1.4

Remark:
1. Motor are available with different winding and mechanical modification to meet specific applications.
2. Can match encoder.
