Changzhou Sunrise Electric Motor Co., Ltd. >> 57bly02 BLDC Motor Electric Motor Round Motor Brushless DC Motor

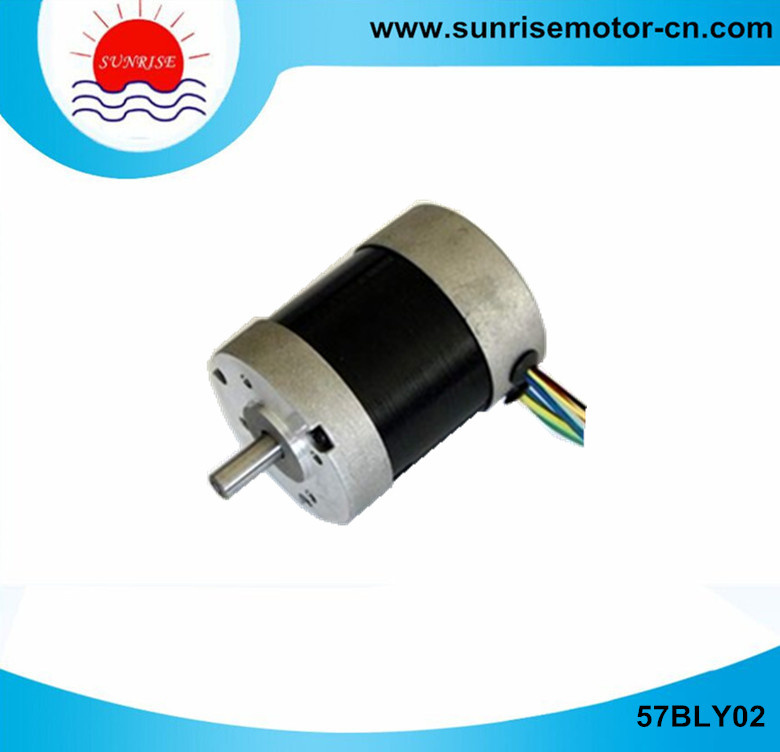

57bly02 BLDC Motor Electric Motor Round Motor Brushless DC Motor

57bly02 BLDC Motor Electric Motor Round Motor Brushless DC Motor
Price: US $ 13.5-20.56/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: 57bly02 Brushless DC Motor
Voltage: 24VDC
Speed: 3000
Application: Household Appliances
Operating Speed: Adjust Speed
Excitation Mode: Shunt
Structure And Working Principle: Brushless
Type: BLDC
Brand: Sunrise Motor

Product Description

NAMEBLDC MOTOR
MODEL57BLY0157BLY0257BLY0357BLY0457BLY0557BLY06
PHASE3
POLES4
VOLTAGEDC24V
CURRENT              A0.91.92.93.65.47
POWER                W15345269103138
TORQUE             N.m0.0570.110.1650.220.330.44
SPEED              RPM250030003000300030003000
INSULATION RESISTANCE≥25MΩ
DIELECTRIC STRENGTH500VAC,50Hz/1min
INSULATION CLASSB
ROTATING DIRECTIONCW/CCW
TEMP.-20ºC--50ºC
HUMIDITY20%--90%
LIFE≥10000h
BODY LENGTH(L)      mm3747576787107
Mass                Kg0.430.50.670.751.01.25
Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
