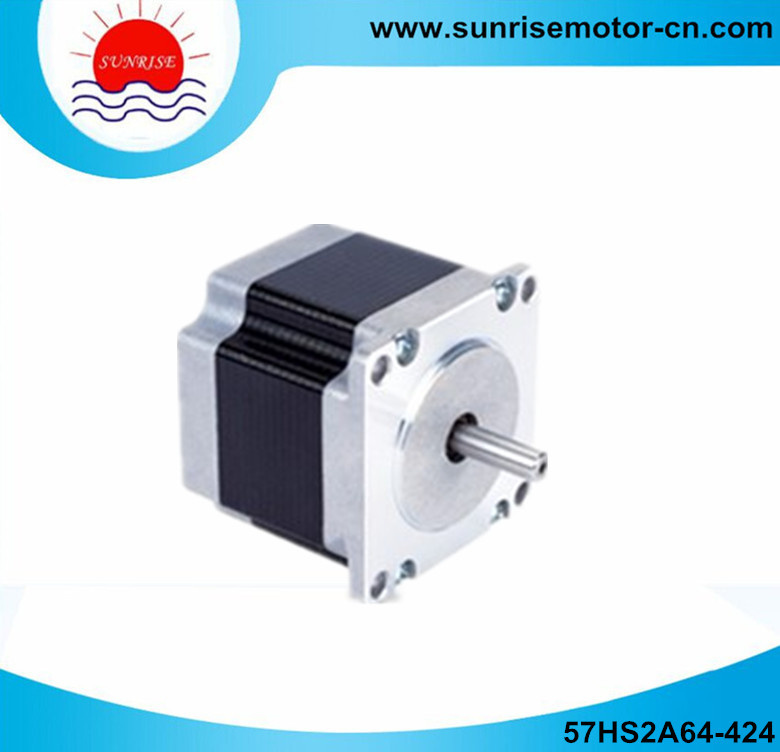

57hs2a64 4.2A 150n. Cm NEMA23 0.9deg. CNC 2phase Hybrid Stepper Motor

Name: 57hs2a64 4.2A 150n. Cm NEMA23 0.9deg. CNC 2phase Hybrid Stepper Motor
Brand: all-electronics-online.com
SKU: 733303505
Availability: InStock
Rating: 4.6 (79 reviews)

Price:	US $ 13.71-14.52/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	57HS2A64-424
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	57hm2a64-424
Holding Torque:	110n.Cm
Currnent:	4.2A
Resistance:	0.55ohms
Inductance:	1.5mh
Length:	64mm
Wire:	4
Weight:	850g
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

57HM 2 Phase Hybrid Stepping motor
0.9° NEMA23

Model: 57HM2A64-424
Holding torque: 110N. Cm
Current: 4.2A
Resistance: 0.55ohms
Inductance: 1.5mH
Length: 64mm
Wire: 4
Weight: 850g

Remark:
We can produce motor according to customer's requirements.

Model	Holding Torque (N@cm±10%)	Current/Phase(A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Detent Torque (N@cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
57HM2A41-106	24	1.0	5.2	6.2	2.5	150	41	470
57HM2A41-064	32	0.62	12	28	2.5	150	41	470
57HM2A41-204	32	2.0	1.2	3.0	2.5	150	41	470
57HM2A45-254	62	2.5	1.0	3.0	2.8	190	45	520
57HM2A51-064	70	0.62	13	34	3.0	230	51	590
57HM2A51-254	70	2.5	1.2	3.8	3.0	230	51	590
57HM2A56-156	82	1.5	3.2	6.5	3.5	280	56	680
57HM2A56-254	100	2.5	1.3	5.2	3.5	280	56	680
57HM2A56-304	100	3.0	0.8	2.8	3.5	280	56	680
57HM2A56-424	100	4.2	0.4	1.5	3.5	280	56	680
57HM2A64-104	110	1.0	7.5	28	5.0	380	64	850
57HM2A64-254	110	2.5	1.5	5.8	5.0	380	64	850
57HM2A64-304	110	3.0	0.8	3.0	5.0	380	64	850
57HM2A64-424	110	4.2	0.55	1.5	5.0	380	64	850
57HM2A76-156	125	1.5	4.5	10	6.0	440	76	1050
57HM2A76-254	150	2.5	1.8	8.2	6.0	440	76	1050
57HM2A76-304	150	3.0	1.0	4.3	6.0	440	76	1050
57HM2A76-424	150	4.2	0.65	2.2	6.0	440	76	1050

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
