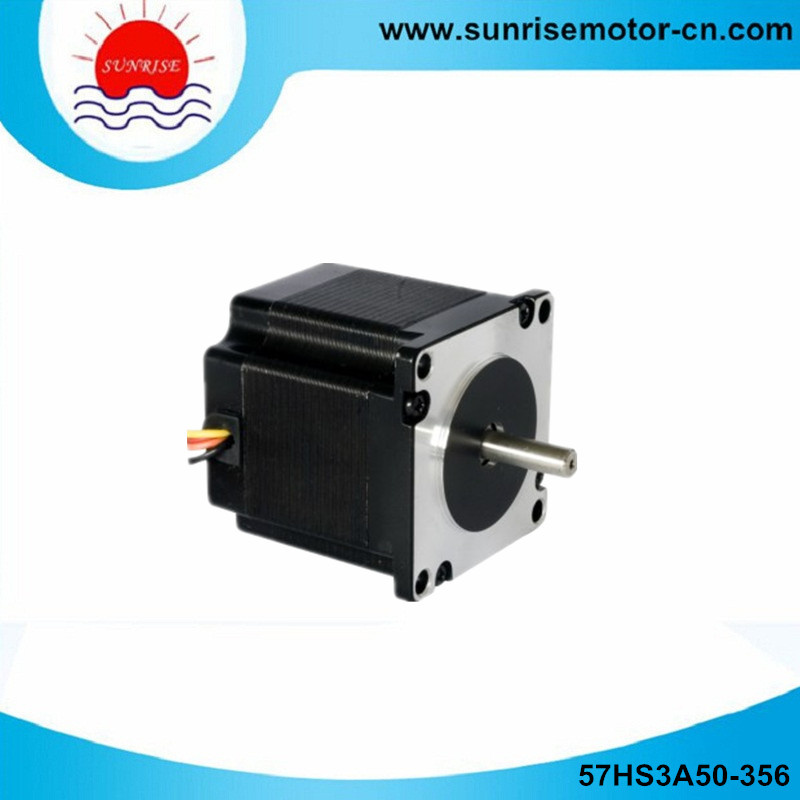

57hs3a50-356 0.64n. Cm 3.5A NEMA23 3 Phase Stepper Motor

Name: 57hs3a50-356 0.64n. Cm 3.5A NEMA23 3 Phase Stepper Motor
Brand: all-electronics-online.com
SKU: 670507915
Availability: InStock
Rating: 4.4 (88 reviews)

Price:	US $ 12.26-13.06/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57HS3A50-356
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	57hs3a50-356
Holding Torque:	0.64n.M
Current:	3.5A
Resistance:	1.3ohms
Inductance:	1.7mh
Weight:	0.6kg
Wire:	6
Motor Length:	50mm
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Electromechanical
Number Of Poles:	3phase
Certification:	SGS
Brand:	Sunrise Motor

Product Description

3phase hybrid stepping motor 57 Series
1.8 ° NEMA23

Model: 57HS3A50-56
Holding torque: 0.64N. M
Current: 3.5A,
Resistance: 1.3ohms
Inductance: 1.7mH
Length: 50mm,
Weight: 0.6kg,

Remark
We can produce motor according to customer's requirements.

Motor can add encoder and gearbox.

Motor specifications:

Model	Holding Torque (N·m±10%)	Current/Phase (A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Rated Torque (N·m)	Rotor Inertia (Kg-cm2)	Length (mm)	Weight (Kg)
57HS3A50-356	0.64	3.5	1.3	1.7	0.6	0.2	50	0.6
57HS3A56-356	0.87	5	0.5	1.0	0.8	0.3	56	0.8
57HS3A76-506	1.47	5	0.87	1.9	1.3	0.4	76	1.0

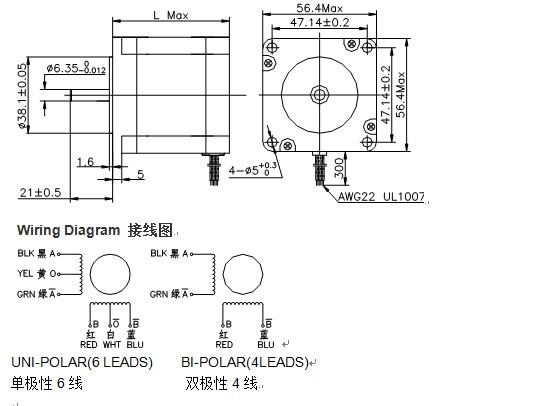

Figure:

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
