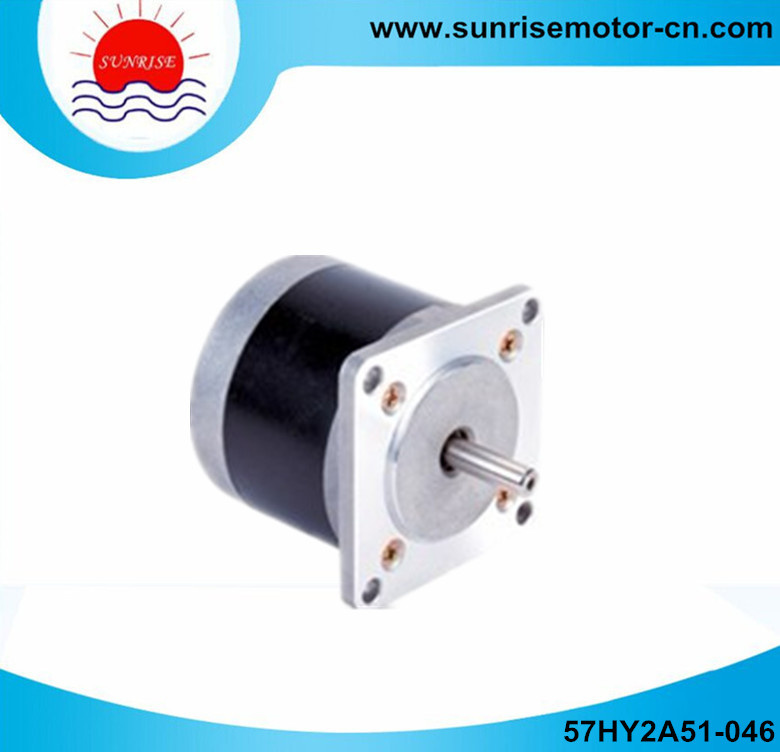

57hy2a51 0.38A 38n. Cm NEMA23 Round CNC 2phase Hybrid Stepper Motor

Name: 57hy2a51 0.38A 38n. Cm NEMA23 Round CNC 2phase Hybrid Stepper Motor
Brand: all-electronics-online.com
SKU: 726072055
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	US $ 10.48-11.29/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	57HY2A51-046
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	57hy2a51-046
Holding Torque:	38n.Cm
Current:	0.38A
Resistance:	32ohms
Inductance:	28mh
Length:	51mm
Wire:	6
Weight:	600g
Type:	Electromechanical
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

57HY 2Phase Hybrid Stepping Motor
1.8° NEMA23

Model: 57HY2A51-046
Holding torque: 38N. Cm
Current: 0.38A
Resistance: 32ohms
Inductance: 28mH
Length: 51mm,
Weight: 600g,

We can produce motor according to customer's requirements.

Model	Holding Torque (N@cm±10%)	Current/Phase (A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Detent Torque (N@cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
57HY2A41-046	30	0.38	32	30	3.5	60	41	450
57HY2A41-164	22	1.55	1.8	3.5	3.5	60	41	450
57HY2A41-214	32	2.1	0.8	1.4	3.5	60	41	450
57HY2A41-156	24	1.5	1.5	1.4	3.5	60	41	450
57HY2A51-046	38	0.38	32	28	5.5	118	51	600
57HY2A51-096	45	0.85	7.1	8.5	5.5	118	51	600
57HY2A51-146	45	1.4	2.5	32	5.5	118	51	600
57HY2A51-144	62	1.4	2.5	6.2	5.5	118	51	600
57HY2A51-204	62	2.0	1.3	3.2	5.5	118	51	600
57HY2A56-066	60	0.6	20	20	6.5	145	56	650
57HY2A56-126	60	1.2	5.0	6.8	6.5	145	56	650
57HY2A56-166	60	1.6	5.2	30	6.5	145	56	650
57HY2A56-246	60	2.4	1.0	1.2	6.5	145	56	650
57HY2A56-254	80	2.5	1.2	3.0	6.5	145	56	650
57HY2A76-424	110	4.2	0.6	1.4	6.5	145	76	800
57HY2A76-214	110	2.1	2.2	6.2	9.5	230	76	800
57HY2A76-364	110	3.6	0.8	2.2	9.5	230	76	800

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
