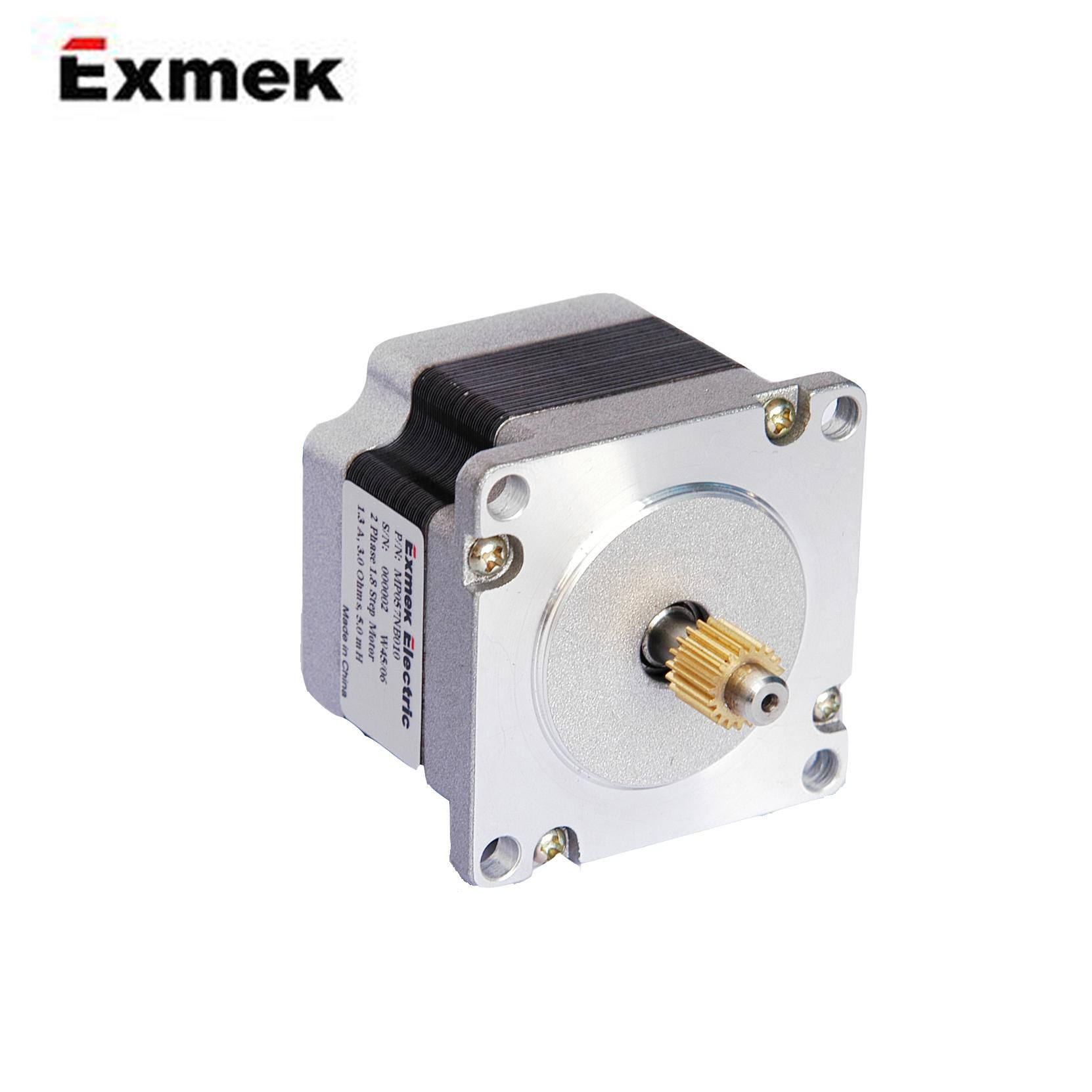

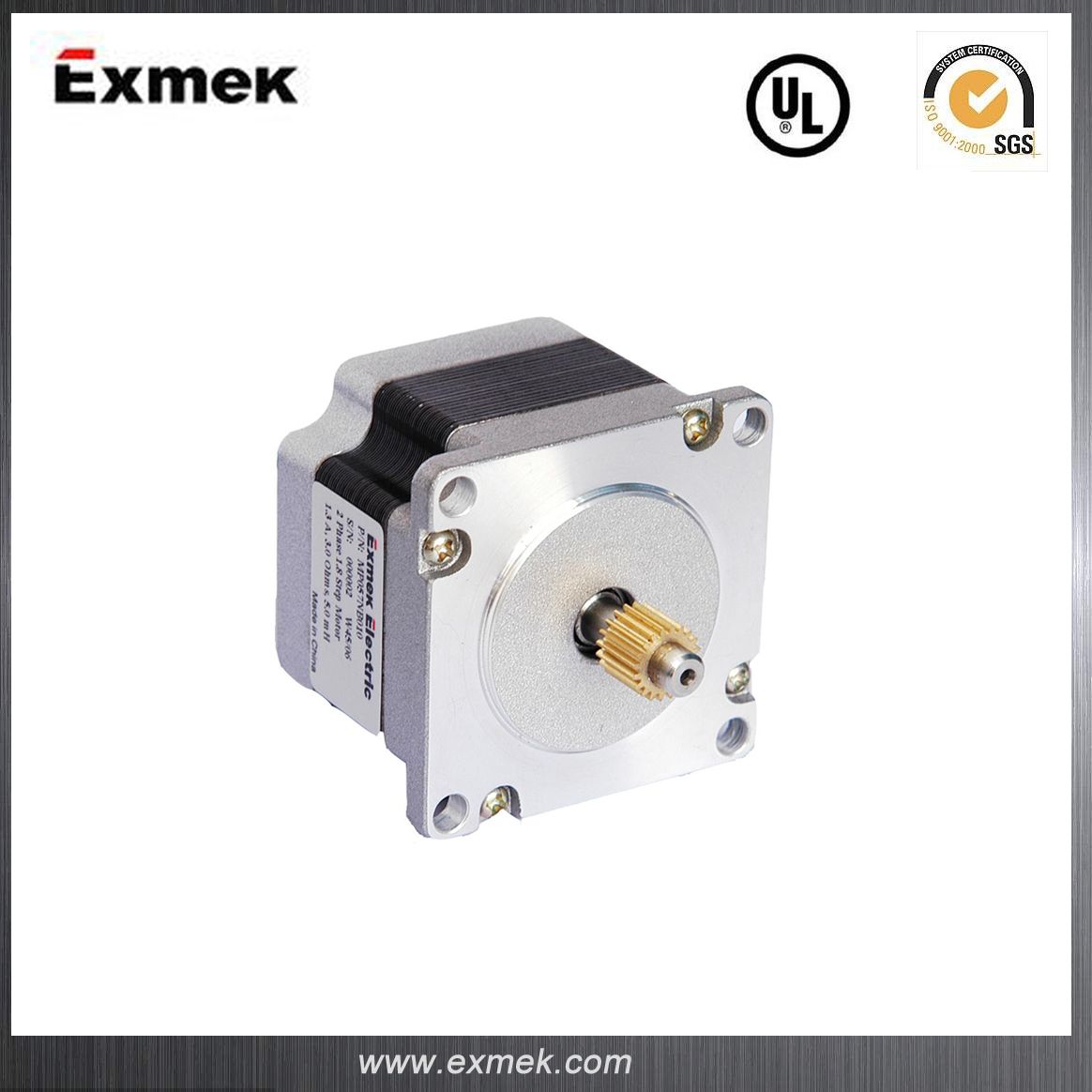

57mm 1.8 Degree Enhanced Hybrid Stepper Motor (MP057SB303)

Name: 57mm 1.8 Degree Enhanced Hybrid Stepper Motor (MP057SB303)
Brand: all-electronics-online.com
SKU: 828589415
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 19/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MP057SB303
Step Angle:	0.9degree
Step Angle Accuracy:	±5%
Resistence Accuracy:	±10%
Inductance Accuracy:	±20%
Ambient Temperature:	-20 Until 50deg. C
Dielectric Strength:	500VAC with 1minute
Rotation:	Cw Seen From The Front Flange
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric

Product Description

General information

Step angle accuracy: 1.8°±5%
Temperature rise: 80°C max
Ambient temperature: -20°C~+50°C
Insulation resistance: 100M(OHMS). min., At 500V
Dielectric strength: 500V AC, 1S, 2mA
Insulation class: B

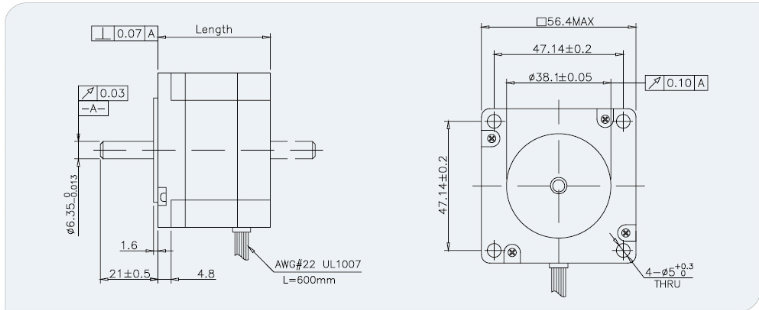

Mechanical

Specifications

Part number	MP057SB303
Phase current	2.8A
Phase-resistance	1.13 ohms
Phase inductance	6.1mH
Holding torque	147N/cm
Detent torque	10N/cm
Number of wires	4
Rotor inertia	460g.cm²
Length	78mm
Weight	1000g

Special design available.

Company Profile

Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group
Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd.
Exmek Electric ---Registered Brand Name
Business: Design and manufacture of motion control products and components
Highly qualified personnel
UL, CE, RoHS certification
ISO 9001, ISO 14000

Company Capabilities

Modern Motor Design and Manufacture
Part Set Design and Manufacture
Magnetic Design Software-Motorsolver
Molding
Shipping world wide

Why Exmek Electric

Open for general discussion and questions
Time to market or theatre of operations can be substantially reduced
Talented team of engineers providing innovative technical solutions
One stop "supplier" and complete sub-system
Quality products provided at competitive low cost
Ability to ship world wide
On time delivery
Training at Customer locations
Fast service on return and repair results
Many repeated customers

Applications:
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.

We are open for general discussion and questions. Contact us now!

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
