57mm Brushless DC Motor for Automatic Door System (FXD57BL-2480-001)
| Price: |
US $ 107.1-141.7/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
FXD57BL-2480-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed Of The Motor: |
1-40rpm |
| Power Of The Motor: |
1-90 Watts |
| Torque Of The Motor: |
0.1-20 N.M |
| Application: |
Power Tools |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brushless |
| Type: |
Brushless DC Gear Motor |
| Certification: |
CE RoHS |
| Brand: |
Fxd Motors |
Product Description
Product descripion:

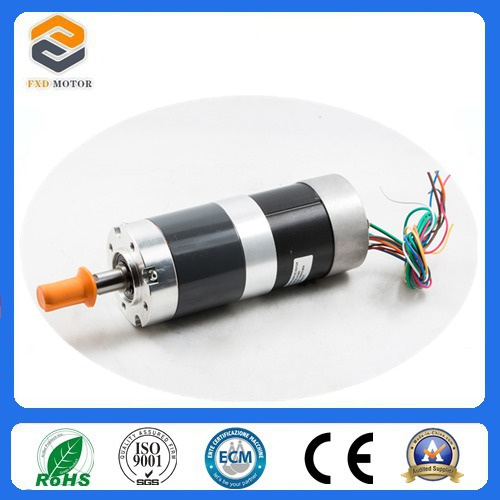

57mm size(NEMA 23) round brushless dc gear motor is used very efficiency on different electromechanical device.
Our FXD57YBL Series bldc gear motor have lots of advantages as below:
1.Nema 23 Brushless dc gear motor
2.Model Number: FXD57BL-2480-001
3.Phase: 3 Phase
4.Lead Wire(No.): 8 wires
5.Shape: square
6.Motor OD: 57mm(2.24inch)
7.Speed:0-40 rpm adjusted
8.Applications: Use for Robots bldc motor, electronic automatic equipment bldc motor, medical instrument BLDC motor, advertisementing instrument bldc motor, audio equipment bldc motor, advertising lamp box. Cnc brushless dc motor. Gemeral info.| Model No: FXD57BL -2486-R50-001 | Type: Brushless dc motor |
| Widing type: Star/Delta | Hall Effect angle: 120 degree electric angle |
| Nuber of the phase: 3-Phase | Shaft runout: 0.025mm |
| Insulation class: Class B | Ip class: Ip40 |
| Dielectric Strength: 500VDC for one minite | noise:45dB |
Electric Connection:| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS |
| 3 | Yellow | HALL A | SINGLE OF HALL A |
| 4 | Green | HALL B | SINGLE OF HALL B |
| 5 | Blue | HALL C | SINGLE OF HALL C |
| 1 | Yellow | UL3266/20AWG | PHASE U | MOTOR PHASE U |
| 2 | Green | PHASE V | MOTOR PHASE V |
| 3 | Blue | PHASE W | MOTOR PHASE W |

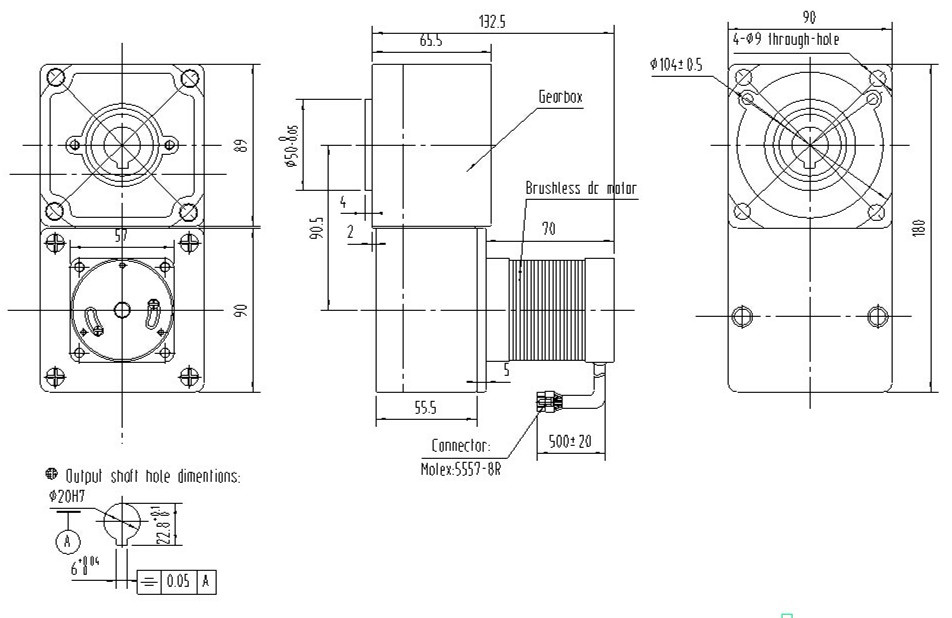

Dimensions diagram:
Electrical specificationModel
(FXD57BL-) | voltage | Rated speed | Rated torque | Rated
power | Ratio | speed from gear | torque from gear | stall torque | Mass | Body length |
| VDC | rpm | N.m | w |
| rpm | N.m | N.m | g | mm |
| 2486-R50-001 | 24 | 1650 | 0.5 | 86 | 50:1 | 33 | 18 | 30.0 | 2500 | 133 |
Note: If you want different specification,we can product brushless dc motor as your special requirements.
Changzhou fuxianda Electromechanical Co., Ltd is established in November 2011. Our company is a factory with products Brushless DC motors, Hybrid stepper motors, gearmotors and matched drivers.
Changzhou fuxianda Electromechanical Co., Ltd also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motor, PM synchronous motor and Brush DC motor. We export our motors to more than 10 countries such as United States, France Italy, South Africa and Russia.
The Fuxianda product line is sold to major manufacturing companies for industry for automation, medical and health care equipment, printer machines, packing devices, information technology, household appliance products, and automobile.
We have an engineering team with many years of experience in application engineering, design engineering with the latest advances equipment. Our engineering staff provides the finest quality product with service after the product is delivered to our customers.
The possession of many excellent mechanical-electronical engineers and marketing personnel make our company skillful at providing customers with the plan of products integration.
Most of our products are CE approved. Our company adheres to principles of "Providing green products" and all of our products are RoHS compliant.
As a global supplier, Changzhou fuxianda electromechanical Co., Ltd scrupulously follows the guideline of international commercial rules and practices. We have achieved our reputation of cooperation with our customers over the years. Our Goal is to "Win the market with quality and service" which is the common voice of every Changzhou fuxianda Motor team member.
Good quality, reasonable price, on time delivery, efficient service is our pursuit. We are looking forward to cooperating with more friends in the future.
