57mm Brushless DC Motor for Machine

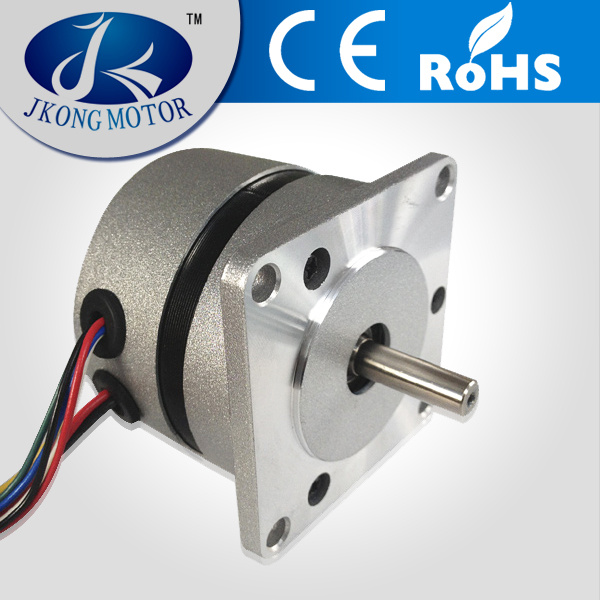

Name: 57mm Brushless DC Motor for Machine
Brand: all-electronics-online.com
SKU: 738886195
Availability: InStock
Rating: 4.4 (89 reviews)

Price:	US $ 20-25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57BLS01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Jk57bls005
Minimum Order Quantity:	1PCS~5PCS
Brushless Motor:	36V DC
Application:	Power Tools
Operating Speed:	High Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brushless
Certification:	CE,RoHS ,ISO9001

Product Description

57 mm brushless dc motor /57BLS 57mm brushless dc motor , BLDC MOTOR 57BLS01
36v dc brushless motor, 57mm dc brushless motor,4000RPM DC brushless motor

Place of Origin: Changzhou, China

Brand Name: JK

Model Number: JK57BLS01

Certification: CE,ROHS ,ISO9001

Minimum Order Quantity: 1PCS~5PCS

Price: US$10~US$50

Packaging Details: EXPORT CARTON

Delivery Time: FOR SAMPLES , 7-10 days

For batch . 15-25days.

Payment Terms: T/T,L/C, PAYPAL, Western union,

Supply Ability: 100000pcs/month

GENERAL SPECIFICATIONS

Winding type Delta

Hall effect angle 120 degree electrical angle

Shaft run out 0.025mm

Radial play 0.025mm@460g

End play 0.025mm@4000g

Max. radial force 75N @ 20mm from the flange

Max. axial force 15N

Insulation class Class B

Dielectric strength 500VDC for one minute

Insulation resistance 100MΩMin., 500VDC

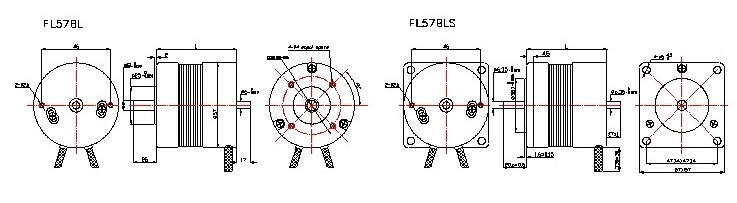

Dimensions:
(Unit=mm)

About our manufacturer:

We are a professional manufacturer for Stepper motor , Stepper driver, BLDC motor and DC motor. we can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co.,Ltd

WHY YOU CHOOSE US:

We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. We can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd

Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.

High quality.
Competitive price,
Good Packing,
Fast Delivery.
Timely after-sales service.

if you need more information . please contact with us , our contact information:

Changzhou Jingkong Motor&Electric Appliance Co.,Ltd

Contact Person : Ms Jane

Tel: 0086 15189798401
Fax: 0086 519 88713769

More Quantity . more discount !!!

Model	JK57BL(S)005	JK57BL(S)01	JK57BL(S)02	JK57BL(S)03	JK57BL(S)04
Number of poles	4
Number of poles	4
Number of phase	3
Rated voltage VDC	36
Rated speed RPM	4000
Rated torque N.m	0.055	0.11	0.22	0.32	0.43
Rated power W	23	46	92	133	180
Peak torque N.m	0.16	0.39	0.7	1	1.27
Peak current A	3.5	6.8	11.5	16.5	20.5
Line to line resistance ohms	4.1	1.5	0.7	0.45	0.35
Line to line inductance mH	10	4.2	2.16	1.4	1
Torque constant Nm/A	0.053	0.063	0.063	0.063	0.063
Torque constant Nm/A	0.053	0.063	0.063	0.063	0.063
Back E.M.F V/KRPM	5.55	6.6	6.6	6.6	6.6
Rotor inertia g.cm 2	30	75	119	173	230
Body length(L) mm	45	55	75	95	115
Mass Kg	0.25	0.5	0.75	1	1.25

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

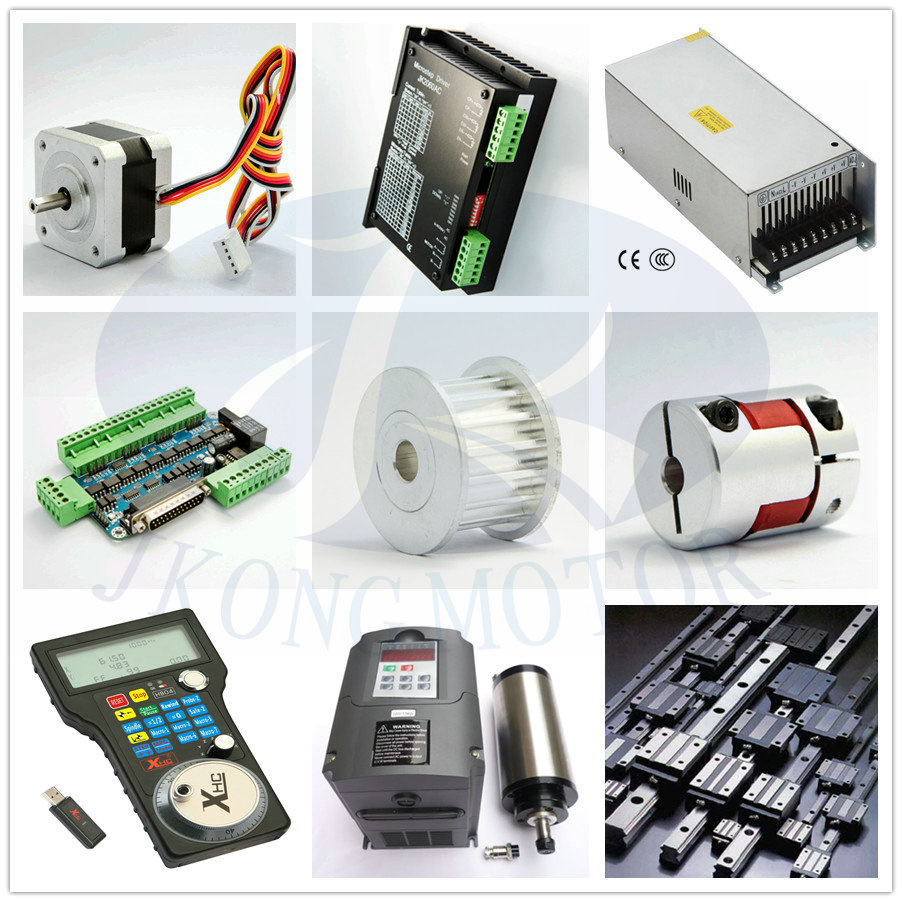

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

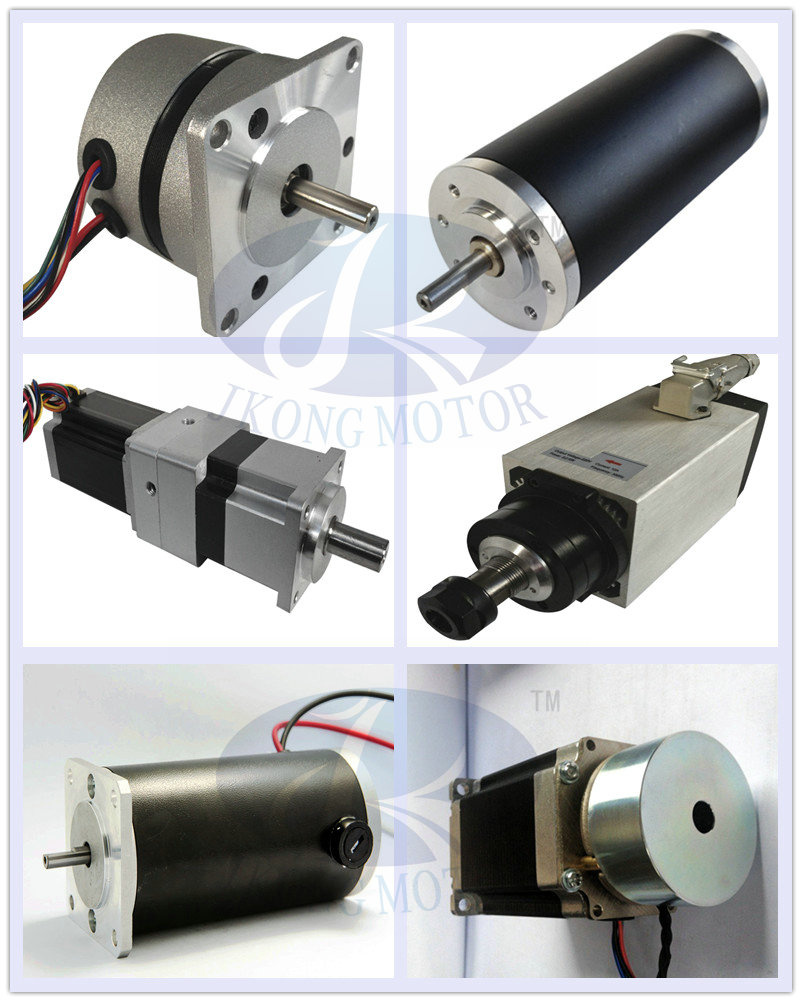

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
